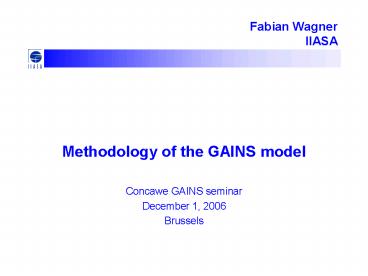

Fabian Wagner IIASA

1
Fabian WagnerIIASA

• Methodology of the GAINS model
• Concawe GAINS seminar
• December 1, 2006
• Brussels

2
Agenda

• Rationale and scope of GAINS
• Differences between GAINS and RAINS
• Conclusions

3
Rationale

• Air pollutants and greenhouse gases (GHGs) often
  stem from the same sources
• Energy consumption contributes a large proportion
  to total emissions
• Changes in energy consumption patterns can
  influence emissions of both air pollutants and
  GHGs
• There are physical and economic interactions
  between control measures

4
GAINS GHG-Air pollution INteractions and
Synergies A new tool to analyze synergies
between air pollution and GHGs

• Extension of the RAINS integrated assessment
  model for air pollution to GHGs
• SO2, NOx, VOC, NH3, PM and CO2, CH4, N2O, HFC,
  CFC, SF6
• First implementation for Europe completed, work
  on China and India underway, feasibility study
  for Latin America completed.
• GHG emissions consistent with UNFCCC, GHG cost
  data from reviewed literature,air pollution and
  cost data reviewed by European stakeholders

5
Common issues for emission control strategiesfor
air pollution and greenhouse gases

• Measures with simultaneous impacts on GHG and
  air pollutant emissions
• Synergies from efficiency improvements, increased
  use of natural gas, agricultural measures, etc.
• Renewables
• Trade-offs for desulfurization, technology
  lock-in, etc.
• Bio-fuels
• Combustion in small sources increases PM and
  thus causes negative health impacts
• Radiative forcing of incomplete combustion
  products (VOC and PM) could compensate effects
  of C reduction
• Diesel
• Health impacts of PM, radiative impacts of black
  carbon
• Methane reductions
• Yield multiple benefits on radiative forcing and
  ozone

6
The GAINS model The RAINS multi-pollutant/
multi-effect framework extended to GHGs
Economic synergies between emission control
measures
PM SO2 NOx VOC NH3 CO2 CH4 N2O CFCsHFCsSF6
Health impacts PM ? ? ? ? ?
O3 ? ? ?
Vegetation damage O3 ? ? ?
Acidification ? ? ?
Eutrophication ? ?
Radiative forcing - direct ? ? ? ?
- via aerosols ? ? ? ? ?
- via OH ? ? ?
PM SO2 NOx VOC NH3
Health impacts PM ? ? ? ? ?
O3 ? ?
Vegetation damage O3 ? ?
Acidification ? ? ?
Eutrophication ? ?



Physical interactions
Multiple benefits
7
Measures affecting more than 1 pollutant
potential for synergies and trade-offs

• Examples
• 3-way catalyst NOx (?) , PM (?), but N2O (?),
  NH3 (?)
• Switch to gas CO2 (?), but CH4 (?) (ceteris
  paribus) from transport and distribution
• Gas flaring CH4 (?), but CO2 (?), NOx (?)
• Carbon Capture and storage CO2 (?), but fuel use
  (?)
• Pellet stove NOx (?) , PM (?)
• Waste incineration CH4 (?), demand for other
  fuels (?), but CO2 (?)
• Reduced fertilizer application N2O (?), energy
  (?)

8
Agenda

• Rationale and scope of GAINS
• Differences between GAINS and RAINS
• Conclusions

9
Differences between GAINS and RAINS in the
optimization (overview)
RAINS GAINS
Greenhouse Gases -
Optimization of multi-pollutant technologies -
Single pollutant cost curves ()
Energy efficiency improvements -
Fuel substitutions -
10
Emission control options considered in GAINSwith
country/region-specific application potentials
and costs

• CO2
• 162 options for power plants, transport,
  industry, domestic
• CH4
• 28 options for the gas sector, waste management,
  enteric fermentation, manure management, coal
  mines, rice paddies
• N2O
• 18 options for arable land and grassland,
  industry, combustion, health care, waste
  treatment
• F-gases
• 22 options for refrigeration, mobile and
  stationary air conditioning, HCFC22 production,
  primary aluminum production, semiconductor
  industry and other sectors
• Air pollutants
• 1500 options for SO2, NOx, VOC, NH3, PM

11
Differences between GAINS and RAINS in the
optimization (overview)
RAINS GAINS
Greenhouse Gases -
Optimization of multi-pollutant technologies -
Single pollutant cost curves ()
Energy efficiency improvements -
Fuel substitutions -
12
Optimization a primer

• Linear optimization of air pollution control
  strategies in RAINS/GAINS
• Objective minimize (Costs)
• s.t. EnvEffectk lt Limitk
• Minimize costs, such that environmental effects
  do not exceed pre-defined limits
• (there are additional technology constraints,
  e.g.
• maximum application rates
• vintage structure
• etc)

13
RAINS optimization The use of single-pollutant
national cost curves
BUT underestimation of potential
synergies and trade-offs for multi-pollutant
objectives!
14
Multi-pollutant technologies and single
pollutant cost curves

• Recall how cost curves are constructed
• Marginal cost and potential reduction
• 3-way catalyst NOx (?) , PM (?), but N2O (?),
  NH3 (?)
• gt Do we pay for NOx reduction or PM reduction?
• Both!
• Allocation of cost to a pollutant is arbitrary
  and confusing!

15
Differences between GAINS and RAINS in the
optimization (technology representation)

• RAINS optimization
• Decide how far to move up the cost curve (keep
  underlying activity fix!)
• Exclude multipollutant technologies
• GAINS optimization
• Decide which technology to use (incl.
  multi-pollutant)
• If cost-effective and possible, change the
  underlying activity (through e.g. efficiency
  improvement)

16
GAINS cost curves vs RAINS cost curves
17
Differences between GAINS and RAINS in the
optimization (overview)
RAINS GAINS
Greenhouse Gases -
Optimization of multi-pollutant technologies -
Single pollutant cost curves ()
Energy efficiency improvements -
Fuel substitutions -
18
RAINS/GAINS single pollutant optimization With
and without Efficiency improvements fuel
substitutions
More stringent emission ceiling
19
Cost Projections of Single Pollutant Cost Curves
and Maximum Feasible Reductions in GAINS
DE, 2020, PRIMES00
20
Technology approach vs cost curve approach

• Advantages
• Adequate representation of multi-pollutant
  technologies
• Dynamic interaction between activity data (e.g.
  energy system) and emission control
• Simultaneous treatment of AP control and GHG
  abatement increases economic efficiency
• No artificial cost-pollutant allocation necessary
• Disadvantage
• Simple single pollutant cost curves can be
  constructed but may be misleading

21
Conclusions

• There are multiple interactions between air
  pollutants and greenhouse gases/climate change
• Economic synergies
• Multiple benefits in joint approaches
• Physical interactions in the atmosphere
• Differences in approach GAINS-RAINS
• Benefits of GAINS approach
• Adequate representation of multi-pollutant
  technologies
• Representation of efficiency improvement measures
  and fuel substitutions
• Extension of the range of possible emission
  reductions
• MFR concept embedded in GHG mitigation context

22
GAINS model documentation
