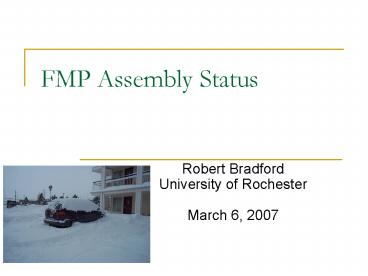

FMP Assembly Status

1
FMP Assembly Status

• Robert Bradford
• University of Rochester
• March 6, 2007

2
Frame

• Welding completed yesterday

H-Clip
Studs
Frame Hook
3
Scintillator Preparation
Scintillator has been shimmed to dimension
PVC frame has been cut back in places
Flats have been added for H-clips
4
Outfitting

• Will probably work with 3 scintillator tables
  during production
• Allows staging of material
• Minimize movement of planes
• Crane hook to be outfitted with AC power
• Needed to operate vacuum lifting fixture
• Extension cords dont permit transportation of
  planes across WBHall.

5
Other notes

• Dimitri has been working last 2 days.
• Spent some time with planes
• Getting safety training up to speed
• Have been using epoxy specd for lead to adhere
  shims
• Has worked well, but cures quickly
• Excellent adhesion

6
Timeline

• Today
• Light tightening planes
• Paul Rubinov examines remaining 2 PMT boxes
• Tomorrow
• Complete FMP assembly
• Spec length for mapper cables
• Meet with alignment group
