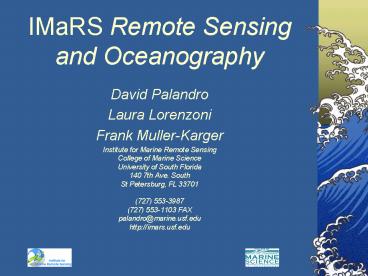

IMaRS Remote Sensing and Oceanography

1

• IMaRS Remote Sensing and Oceanography
• David Palandro
• Laura Lorenzoni
• Frank Muller-Karger
• Institute for Marine Remote SensingCollege of
  Marine ScienceUniversity of South Florida 140
  7th Ave. SouthSt Petersburg, FL 33701(727)
  553-3987(727) 553-1103 FAXpalandro_at_marine.usf.ed
  uhttp//imars.usf.edu

2
Outline

• Basics of remote sensing
• What is remote sensing?
• Theories and definitions
• Missions and sensors
• Introduction to website and tools
• Hands-on IMaRS website
• Provide lesson plans
• Lesson plan building
• Build a lesson plan from IMaRS website
• Hands-on IMaRS website
• Present and feedback
• Present lesson plans to the group
• Evaluate IMaRS website
• Adjourn

3
What is Remote Sensing?

• In the broadest of terms, remote sensing is the
  study of one location from a different location.
• There are various types of sensors used in remote
  sensing that include optics (visual and infrared
  spectrum) and acoustics (sound).
• These sensors can be carried on a ship, airplane,
  satellite, or even a balloon.
• Multi-disciplinary

"Remote Sensing is the science and art of
obtaining information about an object, area, or
phenomenon through the analysis of data acquired
by a device that is not in contact with the
object, area, or phenomenon under investigation."
- Lillesand and Kiefer
4
Definitions

• Spatial Resolution
• The size of the area that is covered by one pixel
  of data, the higher the spatial resolution the
  smaller the pixel.
• Temporal Resolution
• The amount of time it takes for the sensor
  to
• revisit the same spot on the planet.
• Spectral Resolution
• The number of discrete bands used by the
• sensor as well as the number of bands total
• based on the EM spectrum.

5
Pixel Size
6
Electromagnetic Spectrum
The satellite sensor measures the amount of light
being given off, or radiated, by the earths
surface at specific wavelengths in the
electromagnetic spectrum.
7
Radiative Transfer Theory
Cloud
Atmosphere
Sea Surface
Ocean
8
Advantages of Remote Sensing

• Obtain large-extent images of the oceans
• Climate studies
• Local and large-scale studies
• Remote (inaccessible) areas
• Make measurements impossible otherwise
• Oceanic rainfall, distribution of small waves,
  extent of phytoplankton patches and relationship
  to SST, etc.
• Time series studies made possible

9
Global image showing ocean color from SeaWiFS
10
Disadvantages of Remote Sensing

• High-tech issues
• Rapid to change, hard to follow literature
• 2-Dimensional
• Near or at-surface measurements only
• Interpretation
• Products based on many assumptions
• Programming errors
• Unknown calibration problems
• Unknown orbit or sensor errors, etc...

11
Sea-Surface Temperature
NOAA NPOESS (AVHRR)
12
Advanced Very High Resolution Radiometer
13
AVHRR-SST
14
Ocean Color
NASA SeaStar (SeaWiFS)
15
Sea Viewing Wide-Field-Of-View Sensor
16
SeaWiFS-chl_a
17
MODIS-RGB
18
Bottom Habitat Discrimination
NASA Landsat 7 (ETM)
19
Landsat 7 Enhanced Thematic Mapper Plus
20
Landsat-RGB
21
The IMaRS Web Site

• http//imars.usf.edu
