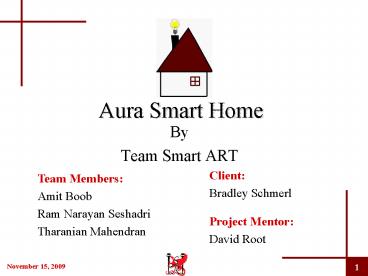

Aura Smart Home

1
Aura Smart Home

• By
• Team Smart ART

Client Bradley Schmerl
Team Members Amit Boob Ram Narayan
Seshadri Tharanian Mahendran
Project Mentor David Root
2
Agenda
Project Overview
Requirements
Architecture
Design
Process Overview
Demo
3
Project Aura Overview
Aura resume the movie I was watching
Aura check my inbox for new mails
My.Aura
Aura translate this !!!_at__at_
Aura I want to write a letter
4
Client Goals
Client Goals

• Identification of one Aura by another
• Authentication between two Auras
• Remote access of user information and tasks by
  Aura
• Identify local services which are most
  appropriate to start or resume the task

Mentor Goals
Stakeholders
Team Goals
5
Mentor Goals
Mentor Goals

• Expect team demonstrating different Software
  Engineering Principles

Client Goals
Stakeholders
Team Goals
6
Team Goals
Mentor Goals
Client Goals
Team Goals
Stakeholders

• Practice various techniques, methods involved in
  Software Engineering
• Produce deliverables according to the commitment
• Handle various people related issues

7
Requirements
Used different methods in combination to capture
customer requirements
8
Requirements

• Combined Scenario

• Functional
• Visitor Identification
• Visitor Authentication
• Owner Context Setting
• Owner Notification
• Remote Access
• Task Transfer

Mel?
Mel?
Mel

• Quality Attributes
• Security
• Backward Compatibility
• Modifiability

Legend
MelP
MelP
9
QA Scenario ..1
Security - User Authentication
Security - Supplier Authentication
10
QA Scenario ..2
Security - Connectors Encryption
Compatibility Choosing connectors
11
QA Architectural Realization
Architecture Mechanisms
QA Scenario
Security - User Authentication
Security - Supplier Authentication
Security - Connectors Encryption
Backward Compatibility
Modifiability Adding Connectors
12
Earlier Aura Architecture CC
Source The Aura Software Architecture an
Infrastructure for Ubiquitous Computing by João
Pedro Sousa, David Garlan Aug 2003 CMU-CS-030183
13
Redefined Aura Architecture CC
Legend
14
Abstract Factory Pattern
15
Public Private Key Encryption
EMBP Environment Manager Binding Protocol EM
Environment Manger
16
Process Incorporated

• Extreme Programming
• Shortened iterations (4-days per iteration)
• Followed test driven development
• Used refactoring
• Developed few important documents and reviewed
  with team members
• Increased the number to interactions with the
  client (twice a week)
• Disadvantage No daily Interaction with client

17
Assumption Process
18
Risk Management

• Voted Risks (Clients)
• Assigned Values
• Selected top risks
• Worked out various mitigation strategies
• Revisited risk every iteration

Risk Exposure
Risks
19
Collecting Measures

• Used Excel sheet for documenting measures
• Estimated and tracked the tasks
• Communicated estimations to clients

20
Team Velocity
21
Gantt Chart

• Customer satisfied if work flow is projecting as
  Gantt Chart
• Clearly showed the dependent modules
• Assisted in estimate, track and communicate
  project status

22
Status
Current Status
To be achieved

• Suppliers ready for the scenarios
• Face Recognition
• Phone
• Door
• Photo Supplier
• Implemented EMBP Protocol Stub
• Speakeasy Separation

• Aura Communication
• Task Transfer between Auras\
• Task layout design implementation
• Enhancing speak easy

23
Lessons Learned

• Process had an impact on our research customers
• Sequence diagrams assisted in segregating tasks
• Assumption Process helped to communicate
  effectively
• Improved Meeting Process
• Roles and Responsibility - Task Focus
• Simple words for communication are very important
• Best Strategy for Debugging - Take a Break

24
Special Thanks

• Mel Rosso-Llopart
• Lending us Camcorder to capture scenario
• Ramkumar Ramachandran
• Acted in scenario

25
Demo
26
Thank You
27
Annexure
28
Overall Process
29
Given Architecture ..1
30
Given Architecture ..2
31
Refactoring
32
Tracking Control
33
Risk Management
34
Change Control
35
Scenario Doorbell 1
Rosie
Dino
Fred
Jane
Start
Hello
Record Voice
Take Picture
Send Recorded Picture Voice
Check Previous Record
Friend Arrived
Check Record
Positive Reply
Welcome
Stop
36
Scenario Coffee Shop 2
Gaston
Dino
Start
Fred
Swipes Card
Get Dinos Location
Send Freds Identity
Check Freds Identity
Positive Response
Ask Dashboard Content
Appropriate Dashboard Content
Display Dashboard
Resume Task
Relay Request
Task Information
Task Invoked
Task Performed
Gets Up
Closes Dashboard
Updates Tasks
Stop
37
Architecture - Face Recognition
Web Cam Driver
Open CV
Image Capturer
Image Preprocessor
Face Detector
Visitors Information
Face Identifier
Image processor
Name Indexer
Grey Scaled Image
Vector
Index
SVM Model
Name List Associated with Index
38
Security Model Protocol based
Face recognition Magnetic Card
Request Visit
Capture face
Send Credentials
Verify Credentials
Allow/ Request Second Level Authentication/ Reject
Accept/ Reject Credentials
39
Security Threats

• Intruders can trap alter the reply message from
  visitors Aura
• Duplication of Information
• Verification of Credentials (Encrypted)
• Magnetic Card Loss
• Usage of credentials if not encrypted
• Some scars or black mark in face
• Climatic Condition (Light may not be sufficient
  for capturing face)
• Change in voice due to illness

40
Requirements

• Quality
• Attributes
• Security
• Performance
• Maintainability
• Extendibility

41
Macro Plan ..1
42
Macro Plan ..2
43
References

• Ron Jeffries, Ann Anderson, Chet Hendrickson
  Extreme Programming Installed
• Kent Beck, Extreme Programming Explained
• http//www.cs.cmu.edu/aura/
• The Architecture Centric Development Method,
  Anthony Lattanze, February 2005, CMU-ISRI-05-103
• C3PO Project Documents

44
Definition of Quality Attributes

• Security
• Performance
• Modifiability
• Maintainability

Ranked from High to Low
45
Security QA1
Artifact Visitors Information
Stimulus
Response
Voice, Magnetic Card
Visitor Authenticated
Environment
Source
Response measure
Aura Smart Home
Visitor
System should authenticate the users based on the
credentials

• The ability to identify, authorize and
  authenticate same person based on his past record
• System should identify a face with an accuracy of
  80 out of a database of 10 faces
• Maximum time a visitor can be authenticated for
  an access should not be more than three times
  when only one type of credential is provided to
  the Aura

46
Security QA1
Artifact EM
Stimulus
Response
Register with EM
EM identified Secured session with EM
Environment
Source
Response measure
Aura Smart Home
Supplier
Supplier Registration time

• The ability to identify, authorize and
  authenticate same person based on his past record
• System should identify a face with an accuracy of
  80 out of a database of 10 faces
• Maximum time a visitor can be authenticated for
  an access should not be more than three times
  when only one type of credential is provided to
  the Aura

47
Security QA1
Artifact Tasks
Stimulus
Response

Task transfer
Secured task transfer
Environment
Source
Response measure
Normal Aura Operation
Aura
Task transfer time

• Aura connectors need to be secured by
  transferring encrypted messages.

48
Performance QA2
Artifact Environment
Stimulus
Response
Authentication Information
Access to environment
Environment
Source
Response measure
Aura Smart Home
Visitor
Time taken to grant access

• The time taken between identification information
  provided by the Visitor and he gets appropriate
  message from Aura should not be more than
  30seconds
• The time taken to transfer a task between Auras
  should not be more than 30seconds over a network
  bandwidth of 1Mbps

49
Modifiability QA3
Artifact Architecture Implementation
Stimulus
Response
Requirement to add a new connector type
Changes Made
Environment
Source
Response measure
Aura Smart Home Architecture
Developer
36 Hours

• The ease with which application can be modified
  from existing artifacts for change requests to
  add a new connector type.

50
Backward Compatibility QA3
Artifact Aura Connectors
Stimulus
Response
Communication with another component
Choose Unsecured or secured depending on scenario
Response measure
Source
Environment
Connector chosen seamlessly
Aura Component
Aura Smart Home Architecture

• Must choose between new connector or old
  connector type at runtime.

51
Maintainability QA4
Artifact All Artifacts
Stimulus
Response
Future Changes
Changes Made
Environment
Source
Response measure
Aura Smart Home
Customer
Customer Priority Time Taken

• The ease with which the changes can be made by
  other person from existing artifacts

52
Establishing Processes

• Customers
• Implementation (Small Iterations)
• No documents until things are clear
• Scenario Based Requirements (Story Based)

• Project Mentor
• Observe teams Software Engineering Practices

Client Functionality
Project Mentor Processes

• RUP Heavy Process
• Adopted practices from XP
• Test Driven Development
• Refractoring
• Small iterations
• Developed few important documents and reviewed
  with team members

53
Volatile Requirements

• Challenge
• Deriving requirements for research project
• Planning and Estimating
• Tracking and control
• Requirement Creep Number of scenarios increases
• Following traditional process
• Good
• Created Scenarios, Use Cases and Activity
  Diagrams
• Established Change Control Board
• Clarified Team Understanding (Assumption
  process)
• Negotiated with clients by showing better results
• Developed few Proof of Concepts

Halogen Elements
54
Evolutionary Architecture
Aura Architecture

• Challenges
• Estimating efforts
• Dealing with quality attribute
• Prioritizing quality attributes
• Evolving requirements
• Contributing to architecture
• Good
• Used scenario based approach to elicit quality
  attribute
• Created runtime views for components
• Created sequence diagrams

55
Multiple Stakeholders
X?

• Challenge
• Managing Technical Client
• Focusing the discussions
• Satisfying conflicting views
• Good
• Got useful information about Aura
• Improved productivity via meeting process
• Allocated Roles and Responsibilities Task
  executions

Y?
Z?
56
Various Processes

• Challenges
• Following traditional process
• Following test driven development for throw away
  nature of code
• Controlling designs discussions and agenda during
  client meeting
• Good
• Improved productivity via meeting process
• Developed mailing process
• Documented assumption process
• Tailored team processes
• Fixed weekly team working day
• Used Excel sheets Task list, Risks, etc.

57
Top Risks - Mitigated

• Multiple Stakeholders
• Define the final decision maker.
• Inform this to various stakeholders
• Change from 12Units to 36Units
• Shorted the number of iterations

58
Artifacts Released

• Design Documents
• EMBP
• Secure connectors
• Protocol xml
• Project Planning
• Gantt Charts
• Scenario Scripts
• Deployment Diagram
• Sequence Diagrams

59
Deployment Diagram
60
Task Allocation By Clients

• Presented Aura Architecture
• Gave an assignment along with estimates
• Continuous interaction for solving the problem
• Task implemented and clarified
