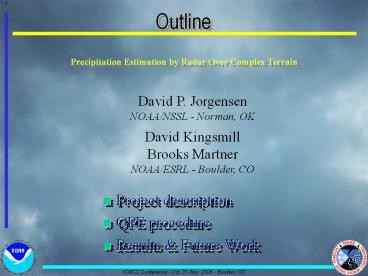

Precipitation Estimation by Radar Over Complex
Terrain
David P. Jorgensen NOAA/NSSL - Norman, OK David
Kingsmill Brooks Martner NOAA/ESRL - Boulder, CO
  • Project description
  • QPE procedure
  • Results Future Work

2
Motivation
Precipitation Estimation by Radar Over Complex
Terrain
  • Evaluate role of shorter-wavelength gap-filling
    radars in improving QPE over network (WSR-88D)
    radars
  • Evaluate different approaches in correcting for
    bright-band effects (i.e., VPR techniques)
  • Plug QPE into distributed hydro models to
    quantitatively evaluate QPE based on predictions
    of river flow

3
HydroMet Testbed Project
  • Evaluate role of gap-filing radars to improve QPE

Western U.S
4
Portable Radars
NSSL C-Band
ESRL X-Pol
  • Non polarized
  • 1.5 circular beamwidth
  • 111 km max range
  • Polarized
  • 1.0 circular beamwidth
  • 40 km max range

5
HMT Specific Z-R Relationship
  • Distrometer located at Colfax about 12 km from
    both SMART-R and XPOL
  • 12 Intensive Operational Periods (rain events)
    from 29 November 2005 to 3 March 2006
  • 10,000 1-s distrometer records in the IOPs

Z100R1.76
6
Concept of Hybrid Scans
  • Use high resolution digital terrain data to find
    lowest unblocked beam for each azimuth
  • VCP-12 scans (same as local WSR-88Ds)
  • Beam must clear terrain by 100 m

7
SMART-R Radar Beam Heights
radar
8
Idealize Vertical Profile of Reflectivity
?Z 6.8 dBZ - 0.05 x Range ?Z1 1.5 dBZ Ice
Slope 5.5 dBZ/km
9
Hybrid Reflectivity Examples
Blockage by trees
Total blockage by trees
10
Example of VPR Effect
Raw Reflectivity
VPR Corrected
11
QPE Comparison to WSR-88 D (KDAX)
1st event high freezing level
2nd event low freezing level
3
Freezing Level Height km
2
1
12
Raingages
13
Radar vrs Rain Gage Analysis
1st event high freezing level
2nd event low freezing level
Radar underestimate
Radar (slightly) overestimate
14
Conclusions
  • WSR-88D radar-derived QPE compares well with the
    gap radars when in rain events (freezing level gt
    2.5 km)
  • WSR-88D underestimates gap radar QPE when
    majority of the basin is snow (freezing level lt
    1.6 km)
  • Compared to gages (equivalent melted precip) the
    gap radars slightly overestimate QPE for higher
    freezing level events (evaporation?)
  • All radars underestimate QPE in low freezing
    level events (VPR model inadequacy?)
