Title: Example application

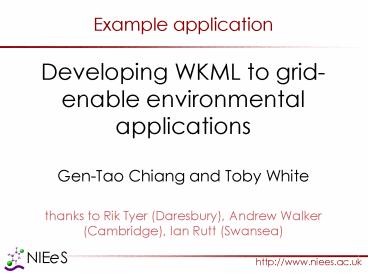

1
Example application
  • Developing WKML to grid-enable environmental
    applications
  • Gen-Tao Chiang and Toby White
  • thanks to Rik Tyer (Daresbury), Andrew Walker
    (Cambridge), Ian Rutt (Swansea)

2
Aim to provide a complete job and data life-cyle
  • We aim to provide a complete job and data
    life-cycle for environmental science applications
    within a grid environment
  • Our aim is to make grids usable
  • Running compute jobs on a gridCollating data and
    metadataVisualising the outputs

3
eScience tools to be used
  • Security
  • Myproxy upload tool
  • Computing Grid
  • Condor pool (including CamGrid)
  • Globus 4 (Pre WS and WS GRAM)
  • MPI enabled PBS Clusters
  • RMCS desktop job submission with data and
    metadata integration (see eMinerals talk)
  • Data Grid
  • Storage Resource Broker (SRB)
  • TobysSRB and Scommands interfaces
  • Metadata management Rcommands

4
NIEeS grid infrastructure
5
eXtensible Markup Language (XML)
  • XML allows information to be encoded with a
    meaningful structure
  • XML is good for information exchange, and can
    easily be extended to include user-specified tags
  • We aim for our applications to generate XML
    output
  • We use KML to represent the geospatial
    information within environmental science
    applications
  • KML is used in Google Earth

6
WKML KML output from Fortran applications
  • Many environmental simulation codes are written
    in Fortran
  • FoX Tobys Fortran library to handle XML data
  • We have developed the WKML library within FoX to
    writing KML output files for visualisation in
    geobrowsers such as Google Earth

7
Example WKML functions
  • Several higher level WKML functions to create
    points, lines, polygons and contours.
  • kmlCreatePoints
  • kmlCreateLines
  • kmlCreatePolygon
  • kmlCreateCells
  • kmlCreateContours
  • Also some netCDF to KML functions

8
How would you do this in Fortran?
  • call kmlAddPoint(x,y)
  • write(10,'(a)') 'ltPointgt'
  • write(10,'(a)') 'ltcoordinatesgt'
  • write(10,'(16f8,a1,16f8)') x, ',', y
  • write(10,'(a)') 'lt/coordinatesgt'
  • write(10,'(a)') 'lt/Pointgt
  • call kmlAddContour(xvec,yvec,zmat,contour)
  • ... endless ...

9
WKML usage example
  • call kmlBeginFile(myfile, kmlfilename, -1)
  • call kmlOpenDocument(myfile,point-test)
  • call kmlCreatePointStyle(myfile,color"orange")
  • call kmlOpenFolder(myfile,namereloc)
  • call kmlCreatePoints(myfile,longitude,latitude,
  • colororange,scalemagnitude(i))
  • call kmlCloseFolder(myfile)
  • call kmlCloseDocument(myfile)
  • call kmlFinishFile(myfile)

Only 8 lines to write the whole file!
WKML Userguide Scispace and Gridinfo
10
Case study 1 HypoDD seismology code
  • Earthquake location algorithm calculates the
    positions of the hypocentres of a series of
    earthquakes. Input file contains initial guesses
    for the hypocentre locations
  • Program generates the final best estimate of
    hypocenters through inverse modelling

11
Google map plots the data and predicted new
hypocentre locations
12
Case study 2 Glimmer glaciology code
  • GLIMMER a glaciology model
  • GENIE land ice model with multiply enabled
    regionsThe case study aims to represent the
    thickness of an ice sheet in three dimensions

13
Ice is represented by z-axis contours
14
Case study 3 remote sensing
  • MCHSIM a hyperspectral remote sensing model for
    coastal water quality applicationIt reads in
    several parameters such as chlorophyll, dissolved
    organic matters and suspended sediments
  • Simulates the radiance, irradiance,
    reflectanceetc of water surface

15
First attempt using fine grid of pixels
16
Better to use a contour approach we have
implemented
17
Tomorrow we will demonstrate the complete job
life cycle
  • from original dataparameter sweeprunning job on
    remote grid resources (National Grid
    Service)one-click to visualise output using
    Google Earth
