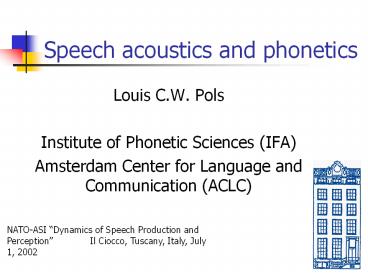

Speech acoustics and phonetics

• Louis C.W. Pols
• Institute of Phonetic Sciences (IFA)
• Amsterdam Center for Language and Communication
  (ACLC)

NATO-ASI Dynamics of Speech Production and
Perception Il Ciocco, Tuscany,
Italy, July 1, 2002
2
Overview

• Dynamics in speech acoustics
• Contour modeling (mainly formants)
• Aspects of spectral undershoot
• Modeling V and C reduction
• Phonetic knowledge from speech corpora
• IFA, CGN, TIMIT, found speech
• Conclusions

3
(No Transcript)
4
Dynamics in speech acoustics

• Dynamics is the norm, not stationarity
• articulatory efficiency
• Dynamics is everywhere
• generally no word boundaries in speech
• deletion of words, syllables, phonemes insertion
• within/between word coarticulation/assimilation
• vowel and consonant reduction
• Acoustic manifestations
• segment duration, F0, loudness, spectral quality

5
Dynamics is the norm

• The speaker speaks as sloppily as the listeners
  allow him to do in communication
• communicative efficiency
• Articulatory vs. perceptual efficiency
• do spectral transitions facilitate or hamper
  perception? gt see other presentation
• Speaker flexibility speaking style (clear vs.
  sloppy) speaking rate

6
Dynamics is everywhere

• Deletion
• bread and butter /brEmbY3/
• Amsterdam (Du) /Amst_at_rdAm/ gt/Ams_at_dAm/
• koninklijke (Du) /konI?kl_at_k_at_/ gt/kol_at_k_at_/
• Insertion
• homorganic glide insertion die een (Du)
  /dij_at_n/
• Degemination
• is zichtbaar (Du) /Is zIxtbar/ gt/IsIxbar/
• Reduction, coarticulation, assimilation

7
Acoustic manifestations

• pitch, loudness, formant, component contours
• contour stylization (e.g., pitch in praat)
• contour modeling
• n-th degree curve fitting (D.van Bergem)
• Legendre polynomials ) (R.van Son)
• 16 points per segment )
• (phoneme) segmentation
• by hand (time consuming non-consistent)
• automatically (via forced phoneme recognition
  and a pronunciation lexicon with alternatives
  systematic errors)

8
Contour modeling

• allows modeling of specific phenomena
• pitch accentuation (vs. vowel onset)
• reduction, centralization, undershoot
• allows generation of stimuli for perc. expts.
• phoneme identification in extending context
• 2-alternatives forced choice identif. of continua
• discrimination, RT
• allows statistics on large speech corpora
• TIMIT, CGN, IFA-corpus, Switchboard

9
Static vs. dynamic V recogn.

• see Weenink (2001)
• Vowel normalizations with the TIMIT acoustic
  phonetic speech corpus, IFA Proc. 24, 117-123
• 438 males, both train test sent. of TIMIT
• 35,385 vowel segments, hand segmented
• 13 monophthongeal vowel categories
• 1-Bark bandfilter anal. (18), intensity. normal.
• 3 frames per segment central and 25 ms L/R

10
Some results

• Vowel classif. () with discriminant functions

Condition Items Static 1 frame Dynamic 3 frames
Original 35,385 438x13x(125) 59.3 66.9
speaker normalized 35,385 62.2 69.2
V centers per speaker 5,374 438x13 78.9 90.1
speaker normalized 5,374 87.9 94.5
11
Formant tracks / speaking rate

• Ph.D. thesis Rob van Son (1993)
• Spectro-temporal features of vowel segments
• see also Speech Comm. 13, 135-148 (Pols vSon)
• 850-words text, read at normal and fast rate
• hand segmentation of 7 most freq. V schwa
• formant tracks
• via 16 points per segm. or 5 Legendre polynomials
• influence of rate, V-dur., context, sent. acc.
• evidence for duration-controlled undershoot?

12
Some results

• no differences for F1/F2 in vowel center for
  normal- or fast-rate speech only some over- all
  rise in F1 for fast rate (irrespective of V)
• same formant track shape (normalized to 16
  points) for normal- or fast-rate speech
• same results when using the more elaborate
  Legendre polynomials
• Concl. changes in V-duration do not change the
  amount of undershoot gt active control
  of articulation speed

13
Formant representations
e
e
zeroth order Legendre Legendre polynomial
coefficients (mean Fi in vowel segment)
second order polynomials (axes reversed)
14
Modeling vowel reduction

• Ph.D. thesis Dick van Bergem (1995)
• Acoustic and lexical vowel reduction
• see also Speech Communication 16, 329-358
• lexical V reduction Fr /betõ/ vs. Du /b_at_tOn/
• acoustic V reduction /banan, bAnan, b_at_nan/
• f(sent. acc., w. str., w. class)
  can-candy-canteen
• coarticulatory effects on the schwa
• C1_at_C2V- and VC1_at_C2-type nonsense words
• perceptual effects (full V or schwa, f.i.
  ananas)

15
Some results
t-n
w-l
The schwa is not just a centralized vowel but
something that is completely assimilated with its
phonemic context
16
Modeling consonant reduction

• Sp. Comm. (1999) 28, 125-140 (vSon Pols)
• 20 min. speech, both spontaneous and read
• 2 x 791 similar VCV hand segmented
• 5 aspects of V and C reduction
• related to coarticulation F2 slope differences
  at CV- vs. VC-boundaries F2 locus equations (F2
  onset vs. F2 target)
• related to speaking effort duration spectral
  COG (mean freq.) V-C sound energy differences

17
Some results

• V markedly reduced in spontaneous speech
• lower F2-slope diff. in spontaneous speech gt
  decrease in articulation speed
• no systematic effect on F2 locus equation V
  onsets and targets change in concert gt any
  V reduction mirrored by comparable change in C
• spont. sp. V and C shorter lower COG gt
  decrease in vocal and articulatory effort

18
Access to large corpora

• more, and more realistic, data
• phonetic knowledge via statistical analyses
• f.i. highly accessible IFA-corpus (free, SQL)
• see Structure and access of the open source
  IFA-corpus, IFA Proc. 24, 15-26 (vSon Pols)
• on-line http//www.fon.hum.uva.nl/IFAcorpus/
• 4 M/4F speakers, 5.5 hrs of speech
• from informal to read sent., words, syllables
• 50Kwords segm. and labeled at phoneme level

19
Some results

• speech annot. meta data relational DB
• realization of final n, f.i. Du geven /xev_at_(n)/

Style wrds /_at_n/ /_at_/ All /_at_n/ /_at_n/ /_at_n/
Informal 5,250 1 304 305 0.3
Retelling 6,229 13 236 249 5.2 LF HF
Narr. story 14,453 180 372 552 33 42 30
Sentences 14,970 203 340 543 37 42 30
Pseudo-sent 2,554 62 19 81 77
All 43,456 459 1,271 1,730 36
Read
20
Spoken Dutch Corpus (CGN)

• 10 M words, 1,000 hrs of speech
• variety of styles, incl. telephone speech
• adult Dutch and Flemish speakers
• for linguistic and technological research
• see various LREC and ICSLP papers (2002)
• see also http//lands.let.kun.nl/cgn/home.htm
• fully transcribed orthogr., POS, lemmas
• partly transcr. phonemic, prosodic, syntactic

21
TIMIT

• popular DB in acoustic phonetics and ASR
• also telephone version (NTIMIT)
• hand segmented labeled at phoneme level
• 438 males, 192 females (8 dialect regions)
• 10 sent./sp. (2 fixed, 1 phon. compact, 7
  diverse)
• sa1 She had her dark suit in greasy wash water
  all year
• includes separate test data (112 M, 56 F)
• e.g. Ph.D thesis X. Wang (1997)
• Incorporating knowledge on segmental duration in
  HMM-based continuous speech recognition

22
Useful info durational variability
Adopted from Wang (1998)
23
all 3,696 training sent. (sx si) of TIMIT
training set
0
normalized phone duration
speaking rate
24
found speech

• DARPA-LVSR community rather ambitious
• Broadcast News (BN), Sp.Comm. 37 (2002)

lt 95 WSJ NAB read sp. 1995 Market place 1996 F0-F5, FX partitioned 1997 3 hrs test unpartit. 1998 non Engl. speech also lt 10x RT
audio training data 100 hrs 10 hrs 55 hrs 50 hrs 100 hrs
text (for LM) 430 K 122 M 540 M gt 900 M
best WER on test set 27.0 27.1 146 hrs 16.2 3 hrs 13.5 gt16.1 3 hrs (10xRT)
For Proc. DARPA Workshops, see http//www.nist.gov
/speech/proc/darpa99/index.htm
25
Articul.-acoustic features in ASR

• A Dutch treatment of an elitist approach to
  articulatory-acoustic feature classification,
  Proc. Eurospeech-2001, 1729-1732 (M. Wester et
  al.)
• Integrating articulatory features into acoustic
  models for speech recognition, Phonus 5, 73-86
  (K. Kirchhoff, 2000)
• An overlapping-feature-based phonological model
  incorporating linguistic constraints
  Applications to speech recognition, JASA 111
  (2), 1086-1101 (J. Sun L. Deng, 2002)

26
Conclusions

• examples of dynamics in speech acoustics
• going from formal to informal speech
• less dynamics, more reduction (artic. guided)
• undershoot vs. speaking style
• sloppiness or articulatory limits?
• functionality of dynamics? gt other paper
• systematicity of dynamics?
• easing ASR, rules for TTS, acquiring knowledge?
