Residual Risk

1

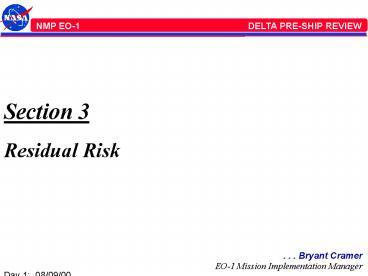

Section 3 Residual Risk
. . . Bryant Cramer EO-1 Mission Implementation
Manager
2
Residual Risk

• Residual Risk is that risk remaining at launch
  after all mitigation efforts have been completed
• The Red Team is charged to ascertain and
  document all residual risks, judged to be any
  level higher than low, that are remaining in the
  mission
• NASA Administrator has asked that 3 system
  engineering tools be used to estimate the
  likelihood of occurrence and the overall mission
  risk associated with the predominant failure
  modes as identified by
• Failure Modes and Effects Analyses
• Fault Tree Analysis
• Probabilistic Risk Analysis
• Red Team Charter focuses on single-point failure
  mechanisms as a major source of residual risk

3
Three System Engineering Tools

• NASA Administrator has asked that we evaluate
  residual risk through the use of
• Failure Modes and Effects Analyses (FMEA)
• Failure Tree Analysis (FTA)
• Probabilistic Risk Analysis (PRA)
• These are normally used during design definition
  to support the system engineering process
• These tools were not used to develop the EO-1
  design
• Single string design by policy
• Hard cost cap and lots of schedule pressure
• Redundancy was largely out-of-bounds -- by
  policy, by budget, by schedule, and by available
  staff
• We utilized selective redundancy within the
  existing constraints as best we could
• We used these 3 tools in a complementary
  abbreviated application to evaluate the
  likelihood of successfully completing the EO-1
  Minimal Mission
• The results were presented to the Red Team on
  June 13, 2000
• Red Team Charter requires that they be assembled
  in a separate document to be delivered by the
  Chairman to the Center Director at the MRR

4
EO-1 Minimal Mission

• Described in EO-1 Mission Success Criteria
• Our evaluation focuses only on the EO-1 Minimal
  Mission

5
EO-1 Residual Risk Assessment

• Fault-Tree Analysis
• Failure of the Minimal Mission
• Includes all mission segments
• Product is mission element failures that disable
  the Minimal Mission
• FMEA
• Down to box, board or service level, as
  appropriate
• Used to survey single-point failures
• Product is all single-point board failures
  disabling the Minimal Mission
• Probability Risk Assessment
• Classified by similarity
• Reliability Block Diagram
• Product is probability of single-point failures
  that disable Minimal Mission

Flight Segment Ground Segment Launch Unique
Segment
F M E A
Single-Point Failures of Minimal Mission within
each Mission Element
Fault Tree Analysis of Minimal Mission
Probabilistic Classification of Single-Point
Failures by Similarity
Reliability Block Diagram for Minimal Mission
Residual Risk Assessment of EO-1 Minimal Mission
Risk Mitigation Strategies
6
Assumptions For All FMEAs

• One failure at a time
• All required inputs are nominal
• All consumables are present in sufficient
  quantities
• Nominal power is available (except when the
  availability of power is part of the failure(s)
  being considered)
• Only the launch separation and on-orbit phase of
  the mission has been treated
• Connector failures are not treated
• (Adapted from GSFC P-302-720 and GSFC S-302-89-01)

7
Failure Severity Criticality Categories for FMEAs

• Severity criticality codes for these FMEAs are
  defined as follows
• 1 Effective loss of the Minimal Mission
  (non-recoverable complete loss of ALI data)
• 2 Loss of the Hyperion (non-recoverable
  complete loss of Hyperion data)
• 3 Serious degradation, but still meets some of
  the Level I ALI and/or Hyperion requirements
• 4 Some degradation or operations impact, but
  still achieves the baseline mission
• 5 Little or no impact to mission success or
  mission operations
• Some examples are
• Category 1 Power System, ACS, WARP, or ALI
  instrument failing completely
• Category 2 Hyperion instrument failing by itself
• Category 3 A Hyperion ASP failure, or an X-Band
  Phased Array failure
• Category 4 Heaters
• Category 5 PPT, GPS, AC, etc.

8
EO-1 Minimal Mission ElementsCategory 1 Failures
9
EO-1 Minimal Mission ElementsCategory 1
Failures(continued)
10
EO-1 Minimal MissionReliability Block Diagram
Attitude Control Subsystem (ACS)
Electrical Power Subsystem (EPS)
Communications Subsystem (CS)
Command Data Handling Subsystem (CDHS)
Reaction Control Subsystem (RCS)
0.9490
0.9679
0.9535
0.9638
Has Redundancy
0.9999
ALI
WARP
Reliability _at_ 1 year 0.7447 Failure Likelihood
0.2553
0.8960
0.9846
Has Consequence Category 1 from FMEA
11
0.75
12
PRA Summary

• Reliability at 1 year for FMEA Category 1
  0.7491
• Reliability at 1 year for FMEA Category 1R
  0.9941
• Redundant 1R items have small impact on
  reliability
• Reliability at 1 year for Category 1 1R
  0.7447
• If 1R items were not redundant then R 0.6917
• Category 1 single point failures are primary
  drivers of residual risk.

13
Special Topic Accelerated Minimal Mission
. . . Bryant Cramer EO-1 Mission Implementation
Manager
14
Overview

• The EO-1 Accelerated Mission is a change in
  operations to maximize the likelihood of flight
  validating the ALI WARP (Minimal Mission)
• The concept is an outgrowth of our Probabilistic
  Risk Assessment (PRA)
• EO-1 is a largely single-string design and for
  such a mission the reliability typically
  decreases to about 0.70 at the end of one year
• Due to selective redundancy, our reliability is
  at 0.75 _at_ 12 months
• By increasing the data collection rate from 4 to
  8 Data Collection Events (DCEs) during the first
  four months aloft, we can increase the
  probability of completing the Minimal Mission
  from 0.75 to 0.90
• The cost is roughly 600K

15
Reliability vs. Mission Success Criteria
Minimal Mission
Completely Successful Mission
Successful Mission
Probability
Completely Successful Mission
8 DCEs / Day
Successful Mission
4 DCEs / Day
Months After Launch
16
EO-1 Accelerated Mission
600K
Accelerated Mission Science Validation Facility
(SVF) Normal Ops
COST (K)
MONTHS
17
Summary

• Accelerated Mission capitalizes on the early
  reliability of the observatory
• Maximizes the likelihood of completing the
  Minimal Mission
• Cost-effective -- can be supported from existing
  resources
• Leaves the option for an extended mission still
  intact
• Facilitates DCEs in Southern Hemisphere
• Strengthens the overall science validation

18
Special Topic WARP Back-Up Solid State Recorder
. . . Irving Linares EO-1 BSSR Lead
19
Background

• WARP failed on 1/4/00 and subsequent
  troubleshooting found a connector with a bent pin
  and socket corrosion that was repaired
• WARP failed again on 2/26/00 and this time an
  LM136 regulator failed and overstressed adjacent
  parts
• This regulator was the true cause of the first
  failure
• A new regulator board was built, integrated, and
  tested, and the WARP returned to the spacecraft
  on 5/16/00
• After the second WARP failure, it was decided
  that EO-1 would pursue a Backup Solid State
  Recorder (BSSR) as a prudent risk mitigation

20
What is the BSSR

• Backup Solid State Recorder is a
  high-reliability, stand-alone CCSDS-compatible
  unit packaged as a single card to fit directly
  into the WARP
• 4.6 Gb of solid state memory
• Interfaces MIL-STD-1773 28V power input
  RS-422 science data input/output
• 31 mux for input science data
• Maximum science data input rate of 165 Mbps
• No processor, no internal software, therefore
  design is simple and independent of flight
  hardware software
• Design incorporates radiation-hardened mil-spec
  EEE parts to gain a reliability prediction of 95
  over two years
• Team Members

21

• Interface Block Diagram

22
BSSR Board Layout

• Preliminary PWB layout

23
Board Placement Within WARP
24
Enhanced WARP Reliability
25
Current Status of BSSR Development

• BSSR Team has completed 75 of the detailed
  electrical design effort
• CDR held on 7/20/00
• Remaining items to complete design under current
  task (8/31/00)
• FPGA designs and simulations
• Analog simulations
• Deliverables under current task
• Electrical schematics, FPGA fuse files
• CDR Package and Action Item responses
• EO-1 ICD-068 EO-1 BSSR ICD and Performance
  Specification
• Draft BSSR Qualification and Acceptance Test Plan
• Preliminary PWB area study, Design
  Guidelines/Critical Routings
• Detailed Parts list complete, Long-Lead parts
  identified and quoted
• Reliability and Thermal Analysis

26
Cost to Date, Cost Schedule to Complete Design

• Costs to date
• July 31, 2000
• 299K for CDR and preliminary design
• August 31, 2000
• Additional 100K for complete electrical design
• February 28, 2001
• Additional 900K for WARP/BSSR Integration
• Major development milestones include
• Complete BSSR Design and conduct Peer
  Reviews 8/31/00
• Complete assembly of the flight BSSR 10/30/00
• Complete BIT at Litton and Deliver to
  GSFC 11/20/00
• Complete BSSR Performance and environmental test
  integrate 1/9/01
• to the WARP
• Complete WARP/BSSR testing and ready to integrate
  to EO-1 2/19/01
• Complete Observatory IT 6/29/01
• Launch Readiness Date 8/23/01
