Title: ENSC 325 Project


1

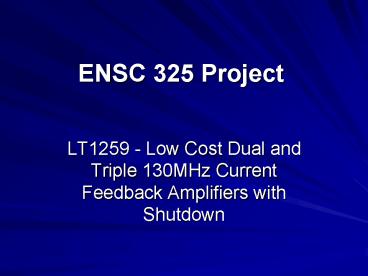

ENSC 325 Project
  • LT1259 - Low Cost Dual and Triple 130MHz Current
    Feedback Amplifiers with Shutdown

2
CFB vs VFB
  • High input slew rate (270V/us)
  • Gain-dependent output slew rate (Typ 1600V/us)
  • Non-constant GBP
  • High BW parameter set by FB resistors and
    internal capacitors
  • Requires resistive feedback from Output to
    Inverting Input for stable operation
  • Higher VOS than VFB
  • Higher Noise Density than VFB

3
Typical Application
4
Simplified Schematic
5
Sub-Circuits
  • Enable Circuitry
  • High impedance output when circuit disabled
  • Establishes bias currents for Input Stage
  • Power-efficient design
  • Input Stages
  • Sense voltage at IN and feedback current at IN-
  • Output Stages
  • Bulk of the current gain
  • Differential ? Single-ended converter
  • Output current used in negative feedback

6
Sub-Circuit 1 Enable Circuitry
  • Matched current mirrors provide bias currents
    which turn on the chip
  • VAB determines IREF for mirrors and is controlled
    via the EN pin
  • EN Low ? VAB 0.7V IREFR EN
    High ? VAB 0V IREFR
  • When the drain-source voltage of the JFET becomes
    zero the current in the mirrors will become zero
    as well. The amplifier is thus disabled.
  • EN pin draws typically 60uA when active

7
Sub-Circuit 2 Input Stage
  • The error current will be proportional to Vin -
    Vin-
  • Rin rp(ß1)(rorp) / 2
  • Rin- rp(rogm-1) / 2(ß1)

8
I-V Conversion
  • The error signal (current) propagates into the
    base of the second BJT and is converted to
    voltage.
  • Vout / Iin -ßr0

9
Output Stage
  • Class AB unity gain push-pull amplifier.
  • Resistances attached at output node are very
    small and used to compensate for transistor
    mismatches.
  • Rout 1/(2gm)
