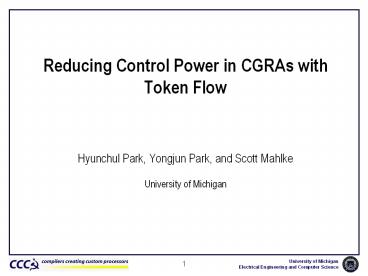

Reducing Control Power in CGRAs with Token Flow

1
Reducing Control Power in CGRAs with Token Flow

• Hyunchul Park, Yongjun Park, and Scott Mahlke
• University of Michigan

2
Coarse-Grained Reconfigurable Architecture (CGRA)

• Array of PEs connected in a mesh-like
  interconnect
• High throughput with a large number of resources
• Distributed hardware offers low cost/power
  consumption
• High flexibility with dynamic reconfiguration

3
CGRA Attractive Alternative to ASICs

• Suitable for running multimedia applications for
  future embedded systems
• High throughput, low power consumption, high
  flexibility
• Morphosys 8x8 array with RISC processor
• SiliconHive hierarchical systolic array
• ADRES 4x4 array with tightly coupled VLIW

Morphosys SiliconHive ADRES
viterbi at 80Mbps
h.264 at 30fps
50-60 MOps /mW
3
4
Control Power Explosion
Single PE
PE Instruction

• Large number of configuration signals
• Distributed interconnect, many resources to
  control
• Nealy 1000 bits each cycle
• No code compression technique developed for CGRAs
• Fully decoded instructions are stored in memory
• 45 total power

4
5
Code Compressions

• Huffman encoding
• High efficiency, but sequential process
• Dictionary-based
• Recurring patterns stored in dictionary
• Not many patterns found in CGRAs
• Instruction level code compression
• No-op compression Itanium, DSPs
• Only 17 are no-ops in CGRA

6
Fine-grain Code Compression

• Compress unused fields rather than the whole
  instruction
• Opcode, MUX selection, register address
• 35 of fields contain valid information
• Instruction format needs be stored in the memory
• Information regarding which fields exist in the
  memory
• Significant overhead 172 bits (20) for a 4x4
  CGRA

6
7
Dynamic Instruction Format Discovery
FU dest lt- src0 src1 RF reg write

• Resources need configuration only when data flows
  through them
• Instruction format can be discovered by looking
  at the data flow
• Token network from dataflow machines can be
  utilized
• Token is 1 bit information indicating incoming
  data in next cycle
• Each PE observes incoming tokens and determines
  the instruction format

7
8
Dynamic Configuration of PEs
Dataflow Graph
Mapping
Configuration

• Each cycle, tokens are sent to the consuming PEs
• Consuming resources collect incoming tokens,
  discover instruction formats, and fetch only
  necessary instruction fields
• Next cycle, resources can execute the scheduled
  operations

8
9
Token Generation

• Tokens are generated at the beginning of dataflow
  live-in nodes in RFs
• Each RF read port needs token generation info
  26 read ports in 4x4 CGRA
• 26 bits for token generation vs. 172 bits for
  instruction format

10
Token Network

• Token network between datapath and decoder
• No instruction format, but token generation info
  in the memory
• Adds 1 cycle between IF and EX stage
• Created by cloning the datapath
• 1 bit interconnect with same topology
• Each resource translated to a token processing
  module
• Encode dest fields, not src fields

10
11
Register File Token Module
token_gen
token sender

• Write port MUXes are converted to token receivers
• Determine selection bits
• Read ports are converted to token senders
• Tokens are initially generated here
• Token generation information stored in a separate
  memory

11
12
FU Token Module

• Input MUXes are converted to token receivers
• Opcode processor
• Fetch opcode field if necessary
• Determine token type (data/pred), latency

12
13
System Overview
datapath
14
Experimental Setup

• Target multimedia applications for embedded
  systems
• Modulo scheduling for compute intensive loops in
  3D graphics, AAC decoder, AVC decoder (214 loops)
• Three different control path designs
• baseline fully decoded instructions
• static fine-grained code compression with
  instruction format stored in the memory
• token fine-grain code compression with token
  network

14
15
Code Size / Performance

• Fine grain code compression increase code
  efficiency
• Token network further improve code efficiency
• Performance degradation
• Sharing of fields, allowing only 2 dests

15
16
Power / Area

• SRAM read power is greatly reduced with token
  network
• Introducing token network slightly increases
  power and area
• Area overhead can be mitigated with the reduced
  SRAM area
• Hardware overhead for migrating staging
  predicates into token network is minimal

16
17
Staging Predicates Optimization

• Modulo scheduled loops
• Prolog (filling pipeline)
• Kernel code (steady state)
• Epilog (draining pipeline)
• Only kernel code is stored in memory
• Staging predicate control prolog/epilog phases

i0
i0
i1
i2
II
i1
i2
Overlapped Execution
17
18
Migrating Staging Predicate

• Staging predicate
• Control information, not data dependent
• 10 configurations used for routing staging
  predicate
• Move staging predicates into control path
• Increase token by 1 bit staging predicate
• Only top nodes are guarded
• Staging predicate flows along with tokens
• Benefits
• Code size reduction
• Performance increase

stage 0
stage 1
stage 2
stage 3
data
staging predicate
18
19
Code Size / Performance

• Code size reduction by 9
• Migrating staging predicates improve performance
  by 7
• 5 increase over baseline

19
20
Power / Area

• Power/area of token network increase due to valid
  bit
• Reduced code size decreases SRAM power/area
• Overall overhead for migrating staging predicates
  is minimal

20
21
Overall Power
226.4 mW
170.0 mW

• System power measured for a kernel loop in AVC
• Introducing token network reduces the overall
  system power by 25, while achieving 5
  performance gain

21
22
Conclusion

• Fine grain code compression is a good fit for
  CGRAs
• Token network can eliminate the instruction
  format overhead
• Dynamic discovery of instruction format
• Small overhead (lt 3)
• Migrating staging predicates to token network
  improves performance
• Applicable to other highly distributed
  architectures

22
23
Questions?
24
Token Sender

• Each output port of resources are converted into
  a token sender
• FU output, routing mux output, register file read
  ports
• Send out tokens only to the specified consumers
  in dest fields
• Allow only two destinations for each output,
  potentially limits the performance

25
Token Receiver

• Input MUXes are converted to token receivers
• Dest fields are stored in the memory, not src
  fields
• MUX selection bits are determined with incoming
  token position

25
26
Dynamic Instruction Format Discovery

• Resources need configuration only when data flows
  through them
• Instruction format can be discovered by looking
  at the data flow
• Token network from dataflow machines can be
  utilized
• Token is 1 bit information indicating incoming
  data in next cycle
• Each PE observes incoming tokens and determines
  the instruction format

26
27
Who Generates Tokens?

• Tokens are generated at the start of dataflow
• Live-ins
• Terminate when they get into a register file
• Tokens terminated in register files can be
  re-generated
• Read ports of register files generate tokens
• Token generation information at RF read ports are
  stored separately
• 26 read ports in 4x4 CGRA

28
Reducing Decoder Complexity
MEM
MEM
MEM
MEM

decoder
decoder
decoder
decoder
Token Network

• Partitioning the configuration memory and decoder
• Trade-off between number of memories and decoder
  complexity
• Design space exploration for memory partitioning
• Which fields are stored in the same memory?
• Sharing of field entries in the memory
  under-utilized fields

28
29
Memory Partitioning

• Bundle fields with the same type field width
  uniformity
• Design space exploration result for a 4x4 CGRA
• sharing degree total entries / total fields
• Reduces decoder complexity by 33 over naïve
  partitioning
• Sharing incurs less than 1 performance
  degradation

type fields memories entries total entries sharing degree
opcode 16 2 8 16 1.0
dest 96 8 8 64 0.75
const 16 2 6 12 0.75
reg addr 48 4 6 24 0.5
