LargeScale Sparse Logistic Regression

1

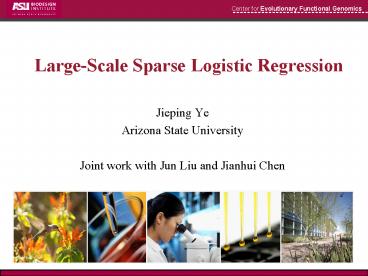

Large-Scale Sparse Logistic Regression

• Jieping Ye
• Arizona State University
• Joint work with Jun Liu and Jianhui Chen

2

• Prediction Disease or not
• Confidence (probability)
• Identify Informative features

Sparse Logistic Regression
3
Logistic Regression

• Logistic Regression (LR) has been applied to
• Document classification (Brzezinski, 1999)
• Natural language processing (Jurafsky and Martin,
  2000)
• Computer vision (Friedman et al., 2000)
• Bioinformatics (Liao and Chin, 2007)
• Regularization is commonly applied to reduce
  overfitting and obtain a robust classifier. Two
  well-known regularizations are
• L2-norm regularization (Minka, 2007)
• L1-norm regularization (Koh et al., 2007)

4
Sparse Logistic Regression

• L1-norm regularization leads to sparse logistic
  regression (SLR)
• Simultaneous feature selection and classification
• Enhanced model interpretability
• Improved classification performance
• Applications
• M.-Y. Park and T. Hastie, Penalized Logistic
  Regression for Detecting Gene Interactions.
  Biostatistics, 2008.
• T. Wu et al. Genomewide Association Analysis by
  Lasso Penalized Logistic Regression.
  Bioinformatics, 2009.

5
Large-Scale Sparse Logistic Regression

• Many applications involve data of large
  dimensionality
• The MRI images used in Alzheimers Disease study
  contain more than 1 million voxels (features)
• Major Challenge
• How to scale sparse logistic regression to
  large-scale problems?

6
The Proposed Lassplore Algorithm

• Lassplore (LArge-Scale SParse LOgistic
  REgression) is a first-order method
• Each iteration of Lassplore involves the
  matrix-vector multiplication only
• Scale to large-size problems
• Efficient for sparse data
• Lassplore achieves the optimal convergence rate
  among all first-order methods

7
Outline

• Logistic Regression
• Sparse Logistic Regression
• Lassplore
• Experiments

8
Logistic Regression (1)

• Logistic regression model is given by

9
Logistic Regression (2)
overfitting
10
L1-ball Constrained Logistic Regression

• Favorable Properties
• Obtaining sparse solution
• Performing feature selection and classification
  simultaneously
• Improving classification performance
• How to solve the L1-ball constrained optimization
  problem?

11
Gradient Method for Sparse Logistic Regression
Let us consider the gradient descent for solving
the optimization problem
12
Euclidean Projection onto the L1-Ball
The Euclidean projection onto the L1-ball (Duchi
et al., 2008) is a building block, and it can be
solved in linear time (Liu and Ye, 2009).
13
Gradient Method Nesterovs Method (1)
Convergence rates
Nesterovs method achieves the lower-complexity
bound of smooth optimization by first-order
black-box method, and thus is an optimal method.
14
Gradient Method Nesterovs Method (2)

• The theoretical number of iterations (up to a
  constant factor) for achieving an accuracy of
  10-8

15
Characteristics of the Lassplore

• First-order black-box Oracle based method
• At each iteration, we only need to evaluate
  the function value and gradient
• Utilizing the Nesterovs method (Nesterov, 2003)
• Global convergence rate of O(1/k2) for the
  general case
• Linear convergence rate for the strongly
  convex case
• An adaptive line search scheme
• The step size is allowed to increase
  during the iterations
• This line search scheme is applicable to
  the general smooth convex optimization

16
Key Components and Settings

• Previous schemes for
• Nesterovs constant scheme (Nesterov, 2003)
• Nemirovskis line search scheme (Nemirovski, 1994)

17
Previous Line Search Schemes

• Nesterovs constant scheme (Nesterov, 2003)
• is set to a constant value L, the
  Lipschitz continuous gradient of the function
  g(.)
• is dependent on the conditional number C

• Nemirovskis line search scheme (Nemirovski,
  1994)
• is allowed to increase, and upper-bounded
  by 2L
• is identical for every function g(.)

18
Proposed Line Search Scheme

• Characteristics
• is allowed to adaptively tuned (increasing
  and decreasing) and upper-bounded by 2L
• is dependent on
• It preserves the optimal convergence rate
  (technical proof refers to the paper)

19
Related Work

• Y. Nesterov. Gradient methods for minimizing
  composite objective function (Technical Report
  2007/76).
• S. Becker, J. Bobin, and E. J. Candès. NESTA a
  fast and accurate first-order method for sparse
  recovery. 2009.
• A. Beck and M. Teboulle. A fast iterative
  shrinkage-thresholding algorithm for linear
  inverse problems. SIAM Journal on Imaging
  Sciences, 2, 183-202, 2009.
• K.-C. Toh and S. Yun. An accelerated proximal
  gradient algorithm for nuclear norm regularized
  least squares problems. Preprint, National
  University of Singapore, March 2009.
• S. Ji and J. Ye. An Accelerated Gradient Method
  for Trace Norm Minimization. The Twenty-Sixth
  International Conference on Machine Learning,
  2009.

20
Experiments Data Sets
21
Comparison of the Line Search Schemes
Comparison the proposed adaptive scheme (Adap)
with the one proposed by Nemirovski (Nemi)
Objective
22
Pathwise Solutions Warm Start vs. Cold Start
23
Comparison with ProjectionL1 (Schmidt et al.,
2007)
24
Comparison with ProjectionL1 (Schmidt et al.,
2007)
25
Comparison with l1-logreg (Koh et al., 2007)
26
Drosophila Gene Expression Image Analysis
Drosophila embryogenesis is divided into 17
developmental stages (1-17)
27
Sparse Logistic Regression Application (2)
28
Summary

• The Lassplore algorithm for sparse logistic
  regression
• First-order black-box method
• Optimal convergence rate
• Adaptive line search scheme
• Future work
• Apply the proposed approach for other mixed-norm
  regularized optimization
• Biological image analysis

29
The Lassplore Package
http//www.public.asu.edu/jye02/Software/lassplor
e/
30
Thank you!
