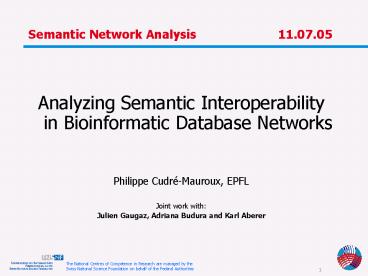

• Analyzing Semantic Interoperability in
  Bioinformatic Database Networks
• Philippe Cudré-Mauroux, EPFL
• Joint work with
• Julien Gaugaz, Adriana Budura and Karl Aberer

2
Overview

• Peer Data Management Systems (PDMS)
• Semantic Interoperability in the Large
• Generatingfunctionologic framework
• The Sequence Retrieval System
• Degree distribution
• Analysis of giant component
• Weighted analysis
• Conclusions

3
Beyond Keyword Search

• searching semantically richer objects in large
  scale heterogeneous networks

ltxapCreateDategt2001-12-19T184903Zlt/xapCreateDa
tegt ltxapModifyDategt2001-12-19T200928Zlt/xapModi
fyDategt
date?
ltesDofCreationgt 05/08/2004 lt/esDofCreationgt
?
?
?
?
?
ltmyRDFDategt Jan 1, 2005 lt/myRDFDategt
4
Decentralized Data Integration

• Large Scale Information Systems (e.g., WWW)
• Number of sources gt 100
• Unreliable data
• Autonomy
• Semi-structured data
• E.g., XML/RDF
• No integrity constraints
• No transactions
• Simple SP queries
• E.g., triple patterns, ranking
• Schemata created by end users
• Network churn

• Distributed Databases
• Number of sources lt 100
• Consistent data
• Coordination
• Structured data
• E.g., Relational data model
• Integrity constraints
• Transactions
• Powerful queries
• E.g., SQL, aggregation
• Schemas created by administrators
• Relatively Fixed topology

5
Data Integration LAV/GAV

• Traditional database techniques (e.g., LAV/GAV)
  rely on centralized schemas to integrate data
  sources
• Not applicable to our context
• Scale (upper ontologies?)
• Churn
• Autonomy

Date
m(Date) myDate
m(Date) yourDate
myDate
yourDate
6
Semantic Interoperability
Q2ltGUIDgtp/GUIDlt/GUIDgt FOR p IN T12 WHERE
p/Creator LIKE "Robi"
Q1ltGUIDgtp/GUIDlt/GUIDgt FOR p IN
/Photoshop_Image WHERE p/Creator LIKE "Robi"
Photoshop (own schema)
WinFS (known schema)
ltPhotoshop_Imagegt ltGUIDgt178A8CD8865lt/GUIDgt
ltCreatorgtRobinsonlt/Creatorgt ltSubjectgt ltBaggt
ltItemgt Tunbridge Wells lt/Itemgt
ltItemgtRoyal Councillt/Itemgt lt/Baggt
lt/Subjectgt lt/Photoshop_Imagegt
ltWinFSImagegt ltGUIDgt178A8CD8866lt/GUIDgt ltAuthorgt
ltDisplayNamegt Henry Peach Robinson
ltDisplayNamegt ltRolegtPhotographerlt/Rolegt
ltAuthorgt ltKeywordgt Tunbridge lt/Keywordgt
ltKeywordgtCouncillt/Keywordgt lt/WinFSImagegt
T12 ltPhotoshop_Imagegt ltGUIDgtfs/GUIDlt/GUIDgt
ltCreatorgt fs/Author/DisplayName
lt/Creatorgtlt/Photoshop_ImagegtFOR fs IN
/WinFSImage

• ? Extending semantic interoperability techniques
  to decentralized settings

7
1. Peer Data Management Systems
escDate ? xapCreateDate
weather
article

• Pairwise mappings
• Peer Data Management Systems (PDMS)
• Local mappings overcome global heterogeneity
• Iterative query rewriting

8
Semantic Mediation Layer
Semantic Mediation Layer
Correlated / Uncorrelated
Overlay Layer
Correlated / Uncorrelated
Physical layer
9
Schema-to-Schema Graph

• Inter-organization of the different schemas used
  by the peers
• Logical model
• Directed
• Weighted
• Redundant

10
The Semantic Connectivity Graph

• Definition (Semantic Interoperability)
• Two peers are said to be semantically
  interoperable if they can forward queries to each
  other in the Schema-to-Schema graph, potentially
  through series of semantic translation links
• Idea
• As for physical network analyses, create a
  connectivity layer to account for semantic
  interoperability
• The semantic connectivity Graph S
• Unweighted, irreflexive and non-redundant version
  of the Schema-to-Schema graph

11
Observations

• Theorem
• Peers in a set Ps are semantically
  interoperable iff Ss is strongly connected, with
  Ss ? s ?p ? Ps, p?s
• Observation 1
• A set of peers Ps cannot be semantically
  interoperable if
• Es lt Vs
• Observation 2
• A set of peers Ps is semantically
  interoperable if
• Es gt Vs (Vs-1) - (Vs-1)

12
2. Semantic Interoperability in the Large

• Question
• How can we analyze semantic interoperability in
  large-scale PDMS?
• Idea use percolation theory to detect the
  emergence of a strongly connected component in S
• Necessary condition for vertex-strong
  connectivity
• Necessary condition for semantic interoperability

13
The Model

• Adaptation of a recent graph-theoretic framework
• Newman, Strogatz, Watts 2001
• Large-scale semantic graphs as random graphs with
  arbitrary degree distribution
• Exponentially distributed, small-world,
  scale-free graphs
• Specificities of our model
• Strong clustering (clustering coefficient cc)
• Bidirectionality (bidirectionality coefficient
  bc) (for directed networks)
• Based on generatingfunctionology
• Percolation ci gt 0

14
Size of the giant component

• With u the smallest non-negative solution of
• And G1 the distribution of edges from first to
  second-order neighbors

15
3. The Sequence Retrieval System (SRS)

• Commercial information indexing and retrieval
  system
• Bioinformatic libraries
• EMBL
• SwissProt
• Prosite
• Etc.
• Schemas described in a custom language (Icarus)
• Mappings (links) from one database to others

16
Why is SRS interesting?

• Applying our heuristics on a real large-scale
  corpus of interconnected databases
• More than 380 databanks
• More than 500 (undirected) links
• Data used by professionals on a daily basis

17
Crawling the SRS schema-to-schema graph

• Custom crawler
• As of May 2005
• (EBI repository)
• 388 nodes
• 518 edges
• Giant connected component 187 nodes
• Power-law distribution of node degrees
• Clustering coefficient 0.32
• Diameter 9

18
Results

• Connectivity indicator ci 25.4
• Super-critical state
• Size of the giant component
• 0.47 (derived)
• 0.48 (observed)

19
Graphs with same power-law degree distr.

• Varying number of edges

20
10x Bigger Graph
21
Analyzing weighted networks

• Do we have a sufficient number of good mappings?
• Introducing quality measures from the mappings
• Weights
• Attribute / schema level
• Cf. Chatty Web (WWW03)
• Semantic query forwarding
• Per-hop forwarding behaviors
• Only forward if wi gt ?
• ? 0 flooding
• ? 1 exact answers

22
Weighted Results

• Same degree distribution (388 nodes)
• Uniformly distributed weights between 0 and 1

23
4. Conclusions

• Analyzing a real network of bioinformatic
  databases
• Accurate results (even for relatively small
  networks)
• Weighted / unweighted
• Current works
• Compositions of weights along a path
• Semantic random walkers
• Public domain simulator
• Future works
• Analyzing other forwarding behaviors
• Implementation in a real PDMS (self-organizing
  mappings)
• GridVine

24
References
A Necessary Condition for Semantic
Interoperability in the Large Philippe
Cudré-Mauroux and Karl Aberer ODBASE
2004 GridVine Building Internet-Scale Semantic
Overlay Networks Karl Aberer, Philippe
Cudré-Mauroux and Tim van Pelt ISWC
2004 Semantic Overlay Networks (Tutorial) Karl
Aberer and Philippe Cudré-Mauroux VLDB 2005
complete reference list at http//lsirpeople.epf
l.ch/pcudre/
25
Thank you for your attention

• Questions ?
