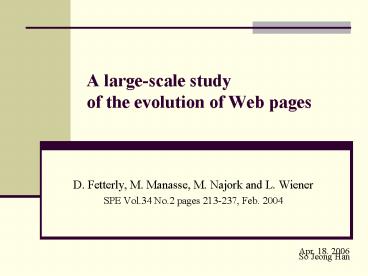

A largescale study of the evolution of Web pages

1
A large-scale studyof the evolution of Web pages

• D. Fetterly, M. Manasse, M. Najork and L. Wiener
• SPE Vol.34 No.2 pages 213-237, Feb. 2004

Apr. 18. 2006 So Jeong Han
2
Content

• Results
• Conclusions

3
Results(1) Document Size Analyze

• Fig 2 . Document Size (byte) versus Top-level
  domain
• HTTP status code of 200
• x Document size (2x-1 2x Byte)
• 14 with standard deviation 1

4
Results(2) Document Size Analyze

• Fig 3. Document Size (Word) versus Top-level
  domain

5
Results(3) Status Code Analyze
Heisenberg Effect

• Fig 4. Distribution of HTTP status codes over
  crawl generations.
• for each crawl generation the percentage of page
  retrievals resulting in categories of status
  codes.
• y start at 85
• URLs lifetime is limited.
• Object Why do downloads fail?

6
Results(4) TDL Analyze

• Fig 5. Download success per Top-level domain.
• Pages in .jp .de .edu is available
• The decline in the curves bears out the limited
  lifetime of Web pages

7
Results(5) TDL Analyze
Unreachable after crawl 1
Downloaded during the final crawl

• Fig 6. Last successfully downloaded Web page per
  TLD
• For viewing the lifetime of URLs from different
  domains.
• Pages in .cn expire sooner than average.

8
Results(6) Change Analyze

• Fig 7. Distribution of change
• Fig 8. scaled to show the low-percentage
  categories
• cumulative percentage distribution

9
Results(7)

• Fig 9. Type of markup change
• Markup of 1,468,671 pages change
• Observing link evolution of this type
• Crawler recognize Session ID and remove Session
  ID
• avoid recrawling the same content

10
Results(8)
Fig 9.
Shrink

• Fig 10. Type of markup change normalized by hosts
• Fig 9 were influenced by URL? Host?
• Change of type is counted per host.
• of changes attributed to URL query (48 -gt 4)
• Tend to appear many times on the same page.
• When session ID are embedded in links to URL,
  They tend to appear in all relative links on the
  page

11
Results(9)

• Fig 11. Breakdown of tags that changed
• changes that were additions or deletions of tags

12
Results(10) - TLD, Change Analyze
Complete change cluster
No change cluster

• Fig 12. Clustered rates of change by TLD
• Each bar is divided into six region change
  cluster
• .de domain problem
• Automatically generate (stuffing)
• Use distinct host names as a front to a single
  server
• Trick link-based ranking algorithm.
• Draw visitors to the Adultweb site.

13
Results(11) - TLD, Change Analyze

• Solution
• Symbolic host names of all the URLs in our data
  set
• Singled out each IP address with more than a 1000
  symbolic host names mapping to it.

• Fig 13. Clustered rates of change by TLD after
  excluding automatically generated keyword-spam
  documents.
• Eliminated about 60

14
Results(12) TLD, Change Analyze

• Fig 14. Clustered rates of change by TLD
• omitting the no change cluster after excluding
  automatically generated keyword-spam documents.

• Conclusion
• Adult content continues to skew our results.
• Shingling technique might not be well adapted to
  writing system like Chinese or Kanji (not employ
  inter-word spacing)
• Extent of change is quite consistent with other
  TLD

15
Results(13) - Change Analyze
Fig 8.
Fig 12.

• Fig 15. scaled to show the low-percentage
  categories, after excluding automatically
  generated keyword-spam documents.
• Bucket 0 cut in half
• Right is monotonous
• consider
• whether the length of pages impacts their rate of
  change

16
Results(14)

• Fig 16. Clustered rates of change by document
  size. (byte)
• Document size is strongly related to rate of
  change.
• Small documents are mostly to change
• Large documents (32KB above) change much more
  frequently than smaller ones (4KB below).

17
Results(15)

• Fig 17. Clustered rates of change by the number
  of words per document.
• Sensitivity of our shingling techniques depend on
  the number of words in a document
• all- or-nothing similarity metric gives a
  relatively coarse.
• Large documents are more likely to change than
  smaller one.

18
Results(16)

• Fig 18. Clustered rates of change by the number
  of words per document, and omitting the no change
  cluster.

19
Results(17)

• .com .net
• Stronger effect for larger documents (than .gov
  .edu)
• - Commercial Web site appearance of freshness
• - Educational Governmental Web site archival
  purpose

• Fig 19. Clustered rates of change by top-level
  domain and number of words per document

20
Results(18)

• Fig 20. Distribution of the standard deviations
  of the rate of change in a given document over
  its lifetime

21
Results(19)
(85,85) web page dont change much over a
3week inteval
10000 times higher than any other feature
The number of pre-images in a document unchanged
from Week n to n1
The number of pre-images in a document unchanged
from Week n-1 to n

• Plate 1. Logarithmic histogram of intra-document
  changes over three successive weeks, showing the
  absolute number of changes.

22
Results(20)
Indicating once again that past change is a
strong predictor of future change.

• Plate 2. Logarithmic histogram of intra-document
  changes over three successive weeks, ormalized to
  show the conditional probabilities of changes.

23
Conclusion(1)

• Purpose measuring the rate and degree of Web
  page
• Method
• crawled 151 million pages once a week for 11
  weeks
• saving salient information about each downloaded
  document
• including a feature vector of the text without
  markup
• plus the full text of 0.1 of all downloaded pages

24
Conclusion(2)

• Conclusion (We found..)
• Web pages change markup or in trivial ways
  change
• Relation with TLD
• frequency of change of a document (strong)
• degree of change (weaker)
• Document size
• both frequency and degree of change. (.com
  .net)
• large documents change more often and more
  extensively
• Predict future change -gt implications for web
  crawlers
• German anomaly fast-changing page is not
  worthy.

Fin.
