Gesellschaft für Parallele Anwendungen und
Systeme mbH

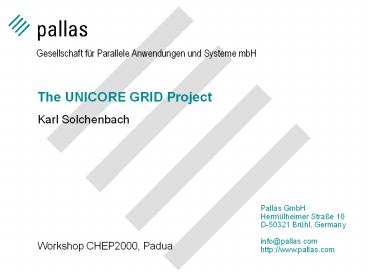

The UNICORE GRID Project
Karl Solchenbach
Pallas GmbHHermülheimer Straße 10D-50321 Brühl,
Germanyinfo_at_pallas.comhttp//www.pallas.com
Workshop CHEP2000, Padua
2
What is UNICORE?

• UNICORE is a project funded by the German
  Ministry of Education and Research (BMFB)to
  develop a prototype for seamless, intuitive, and
  secure access to computing resources.
• Duration 07/1997 - 12/1999

3
The Unicore Partners (past)

• German BMBF funded for
• Implementation Pallas and Genias.
• Users German Research Centres and Universities
  (FZ Juelich, RUS, DWD, LRZ, RZU, PC2, ZIB.
• Partners/Founders
• fecit
• ECMWF
• Affiliates
• debis, Inpro
• IBM, NEC, SGI/Cray, Siemens/Fujitsu, Hitachi,
  SUN, HP

4
Motivation

• Different architectures
• Different vendors
• Different software
• Different usage models
• Incompatible administration
• Incompatible data management

5
Motivation

• Consequences
• Users work with the computer
• they are familiar with
• the have resources
• New systems require
• additional learning
• additional conversions of jobs and data
• high administration overhead

6
Motivation

• Consequences
• Expensive resources are used sub-optimally
• Problems are solved inefficiently
• Solvable problems are not solved
• This holds for research and industry

7
Goals of UNICORE

• Seamless batch access to computing resources
• Production-ready for existing environments
• Based on existing/emerging technologies
• Access to distributed data
• Interdependent jobs on distributed systems

8
Goals of UNICORE

• Seamless access to computing resources
• Intuitive GUI for batch submission
• Same look-and-feel independent of target system
  hide the seams
• Facilitate distribution of work to most suitable
  platform or site
• Provide full information about resources

9
Goals of UNICORE

• Production-ready for existing environments
• Map abstract UNICORE specifications to site
  specific functions
• Map UNICORE ids (certificates) to local account
  names (Unix logins)
• Site retains full control over resources
• No changes to local resource management or
  accounting

10
Goals of UNICORE

• Based on existing/emerging technologies
• Access via www
• Java and Java applets
• X.509 certificates

11
Goals of UNICORE

• Interdependent jobs on distributed systems and
  access to distributed data
• User specifies target system (s)
• UNICORE distributes jobs to sites
• UNICORE synchronizes execution
• UNICORE transfers required data between sites

12
Unicore Architecture

• 3 tiers
• User interface Job Preparation Agent, Job
  Management and Control
• Site Security Gateway, authentication
• Job Control Network Job Supervisor

13
Unicore Security and Authentication

• Jobs will be submitted to a site over the
  Internet
• needs a trusted Unicore component to authorise
  the jobs on any Firewall, the GATEWAY
• Sites keep autonomy over who is a user
• each Unicore user must have a local login
  (different at each site)
• Gateway maps Unicore user to local incarnation
• HTTPS and X509 certificates
• certificate identifies the Unicore user
• implementation comes as standard with (some)
  servers and browsers

14
The Abstract Job Object

• The Abstract Job Object (AJO)
• uniform model of computing actions
• data access as well as computing
• asynchronous
• extensible
• AJO is the link between instantiations of Unicore
  agents (and different implementations)

15
UNICORE Environment
Seamful
Seamless
Site A
Site C
User
JPA
NJS
Browser
Site B
NJS
AJO Environment
Transfer
Export
AJO Environment
Site File Store
Site File Store
Import
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
What is not in the UNICORE prototype?

• Concurrent use of distributed systems(application
  -level metacomputing)
• Computational steering
• Application specific interfaces
• Resource brokers
• Support for every platform

22
Summary

• UNICORE will establish infrastructure for
  supercomputer centers in Germany to share
  resources
• Users want UNICORE now
• UNCORE has vendor support

23
Future

• Create a UNICORE product (Pallas)
• Deploy UNICORE at German HPC centers
• UNICORE Plus project is funded by German
  government (01/2000 - 12/2002)
• European GRID initiative EUROGRID

24
EUROGRID

• Idea European GRID project supported by leading
  European HPC centers
• Experiment for application-specific GRIDs
  (biology, weather, CAE, )
• Proposal to European Commission
• Partners
• HPC centers CSAR, IDRIS, ICM, FZ Jülich,
  Parallab
• Users MSC, DWD, Aeromatra
• Integration Pallas, Fecit
