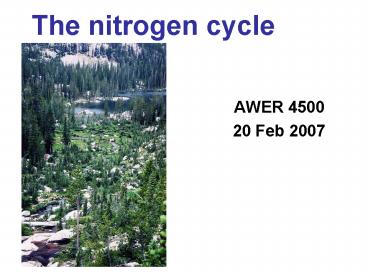

The nitrogen cycle

1
The nitrogen cycle

• AWER 4500
• 20 Feb 2007

2
Nitrogen

• Often a limiting nutrient for algal growth
• N can have a variety of electron states,
  therefore had lots of forms!
• Occasionally Toxic

3
Types of Nitrogen

• N2 gas Very Abundant, mostly unavailable
• DIN, Dissolved inorganic nitrogen
• NH3 / NH4 Ammonia / Ammonium (nutrient, toxic at
  high levels)
• NO3- / NO2- Nitrate / Nitrite (nutrient, toxic
  at high levels)
• Organic nitrogen
• PON Particulate organic nitrogen (e.g. algae,
  bacteria, detritus)
• DON Dissolved organic nitrogen (proteins,
  tannins, etc. etc.)

4
REDOX and nitrogen
5
Sources of Nitrogen

• Precipitation
• Stream Inflow
• Nitrogen Fixation
• Lightening
• Biological

6
(No Transcript)
7
Biological N2 fixation

• Conversion of N2 gas to ammonium
• Very energetically expensive
• Needs
• Large supply of energy
• Nitrogenase enzyme
• Anoxic site
• Legumes, Cyanobacteria

8
Cyanobacteria

• Common members of lakes and stream communities.
• Autotrophic
• Heterocysts
• Seasonal cycles

Heterocyst
Photos from Whitton and Potts 2000
9
Nitrogen Fixation in Lake Titicaca, Peru
10
Sources of Nitrogen

• Precipitation
• Stream Inflow
• Nitrogen Fixation
• Lightening
• Biological
• Anthropogenic (fertilizer)

11
From Vitousek et al. 1997, Ecol. Appl.
12
(No Transcript)
13
The nitrogen cycle
N2 gas
NITROGEN FIXATION
NH4
14
The nitrogen cycle
N2 gas
NITROGEN FIXATION
NH4
R NH2
15
Ammonia assimilation and ammonification

• Assimilation uptake conversion of ammonium to
  amino acids in algae bacteria
• Ammonification - conversion of organic N back
  to ammonia, by bacteria animals

16
The nitrogen cycle
N2 gas
NITROGEN FIXATION
NH4
NO2-
NO3-
NITRIFICATION
R NH2
ASSIMILATION / REMINERALIZATION
17
Nitrification

• Aerobic reaction, using ammonia as an energy
  source
• Needs
• Ammonium
• Oxygen
• Nitrifying bacteria
• Loss of ammonia from water column

Summary 2 NH4 3 O2 ? 2 NO3-
18
The nitrogen cycle
N2 gas
NITROGEN FIXATION
DNRA
NH4
NO2-
NO3-
NITRIFICATION
R NH2
ASSIMILATION / REMINERALIZATION
19
DNRA

• Dissimilatory nitrate reduction to ammonium
• Conversion of nitrate back to ammonium, carried
  out by bacteria
• Newly discovered, not well known

20
The nitrogen cycle
N2 gas
NITROGEN FIXATION
DNRA
NH4
NO2-
NO3-
NITRIFICATION
NITRATE ASSIMILATION
R NH2
ASSIMILATION / REMINERALIZATION
21
Nitrate Assimilation and Reduction

• Assimilation - Conversion of nitrate to amino
  acids
• Requires reduction of nitrogen
• More energetically expensive than ammonium
  assimilation

22
The nitrogen cycle
N2 gas
NITROGEN FIXATION
N2O
DENITRIFICATION
NO
DNRA
NH4
NO2-
NO3-
NITRIFICATION
NITRATE ASSIMILATION
R NH2
ASSIMILATION / REMINERALIZATION
23
Denitrification

• Nitrate as a terminal electron receptor, in
  absence of oxygen
• Sugars burned using nitrate as oxidizing source
  instead of O2
• Nearly as efficient as aerobic respiration
• Requirments
• Anoxia
• Source of nitrate
• Source of carbon
• Denitrifying bacteria

24
The nitrogen cycle
N2 gas
NITROGEN FIXATION
N2O
DENITRIFICATION
NH3 gas
NO
VOLATIZATION
DNRA
NH4
NO2-
NO3-
NITRIFICATION
NITRATE ASSIMILATION
R NH2
ASSIMILATION / REMINERALIZATION
25
Seasonal Nutrient CyclesSummerOligotrophic Lakes

• Oxic Epilimnion
• Oxic Hypolimnion

Temp
O2
Summer Stratification
26
N in oligotrophic lakes

• NH3 NO3 assimilation in epilimnion
• Ammonification in epilimnion
• Nitrification in epilimnion and hypolimnion
• Remineralization in hypolimnion sediments

27
Seasonal Nutrient CyclesSummerEutrophic Lakes

• Oxic Epilimnion
• Anoxic Hypolimnion

Temp
O2
Summer Stratification
28
N in eutrophic lakes

• Ammonification in epilimnion
• Remineralization in hypolimnion
• Nitrification in epilimnion, but not hypolimnion
• Denitrification in hypolimnion
• NH4 diffusion from sediments

29
(No Transcript)
