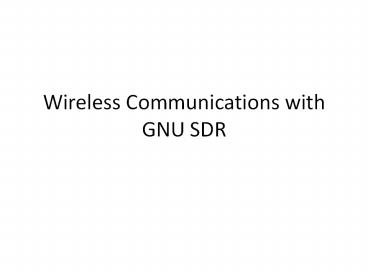

Wireless Communications with GNU SDR

1
Wireless Communications with GNU SDR
2
Writing a signal processing block

• http//www.nd.edu/jnl/sdr/docs/tutorials/10.html
• As mentioned earlier, the signal processing is
  carried out by the signal processing blocks.
• The signal processing blocks are written in C.
• Each block has input ports and output ports.
• A block is fed with input data and will spit out
  output data.
• Multiple blocks are connected by the flow graph.
  Each block runs in parallel supported by
  threads.
• So keep in mind that you are writing a parallel
  program!
• There is a central scheduler which sets up
  buffers between the blocks and determines how
  much data each block should consume. Each block
  should also tell the scheduler how much data it
  has produced. It is the central schedulers job
  to keep the flow running without stalling. But
  you need to tell the scheduler the correct
  information.

3
SPB

• Any block is directly or indirectly derived from
  the gr_block class.
• To specify the input/output ports
• gr_io_signature_sptr    d_input_signature
• gr_io_signature_sptr    d_output_signature
• Smart pointer is used to make sure that ojbect it
  points to is automatically deleted
• gr_io_signature_sptr

4
SPB

• The core of a block

• Does the real work -- The central scheduler calls
  it every once a while, tell it the maximum number
  of output items it can produce in noutput_items,
  tell it how many items are available at each
  input ports in array ninput_items, provides
  pointers to the arrays of input items in
  input_items which the function can read, and
  provides pointers to arrays of output items which
  it can write to.
• The returned value is the actual number of items
  produced to the output ports. Must be the same
  for each output port. Can be less than
  noutput_items.
• At the end of the function, tell the central
  scheduler how many items consumed from each input
  port. Can be different.

5
Compile and Install

• http//www.nd.edu/jnl/sdr/docs/tutorials/11.html
• After writing the SPB, you need to compile it and
  install it and make it callable from Python.
• Here are the rules.
• First, you need to organize your directory as
  (just copy everything from an existing block and
  modify!)

6
SPB

• Then, you need to write a .i file to tell SWIG,
  the Simplified Wrapper and Interface Generator to
  generate the interface callable by Python.
• The .i file is very small and normally you dont
  have to do a lot with it except change the class
  names to the one you are currently using (the
  details in the online tutorial.)
• Then you need to modify Makefile.am, also just to
  update some names (the details in the online
  tutorial)
• Then you need to modify configure.ac at the top
  directory, only two lines (the details in the
  online tutorial)

7
SPB

• Then, run these commands. If your code is right
  everything should be fine.

8
Linear System

• In signal processing, for most of the times, we
  deal with linear systems.

h(t)
x(t)
y(t)

• A linear system is a system such that Tax_1(t)
  bx_2(t) aTx_1(t) bTx_2(t).
• Suppose Tx(t)y(t). A linear system is time
  invariant if Tx(t-\tau) y(t-\tau).

9
Digital Signal Processing

• In fact, most of the signal processing is done
  digitally.
• For example, the sender reads the bits, process
  the bits into digital waveforms, and send it out.

10
Impulse Response

• A digital linear time invariant system can be
  FULLY described by its impulse response.
• It is usually written as hn, which is the
  output of the system when the input is \deltan,
  which is 1 when n0 and 0 for all other values of
  n.

11
Impulse Response

• The reason is, all signals can be represented as
  linear combinations of \deltan
• xn\sum_k-\infty\infty x_k \deltak,
  where x_k is a number equal to xk.
• We really didnt do anything here
• But, recall the definition of a linear time
  invariant (LTI) system, we can write the output
  as
• yn \sum_ k-\infty\infty x_k hn-k
• This is the KEY expression called convolution.
  You need to understand this to understand lots of
  other things.

12
Example

• The digital low pass filter.
• Consider the simplest one (the one we discussed
  in the last lecture) average recent samples.
• ynxnxn-1/2
• Intuitively, it should average out some sudden
  changes.
• h0h11/2.

13
The Simple Low Pass Filter

• The simple low pass filter, what does it do in
  the frequency domain?
• To do this, we consider DFT (Digital Fourier
  Transformation) defined as
• H(j) \sum_n0N-1 hn e-j n 2\pi/ N,
  where N is the number of non-zero points of hn.
• Its basically the same as the continuous FT.
  \sum_n0N-1 hn e-j n 2 \pi/ N is just
  to take a sample on a certain frequency from the
  time domain signal, cause all other frequency
  components are going to be 0.
• If the sample time is T, H(j) represents the
  signal strength at frequency j/NT. (e-j n 2
  \pi/ N repeats every N/j samples. So, in
  continuous time, it repeats every NT/j seconds.)

14
DFT

• So, the DFT of the simple low pass filter can be
  calculated.
• DFT_h(j) 1/21e-2j \pi / N.

15
Convolution and Frequency
16
The RRC Filter

• The LPF we used is called the root raised
  cosine filter.
• Check http//www.dsplog.com/2008/04/22/raised-cosi
  ne-filter-for-transmit-pulse-shaping/

17
Why use RC

• The problem is that the baseband waveform is
  generated but you have to take samples at the
  receiver side to determine the bits.
• If using some arbitrary LPF, the signal shape is
  arbitrary and the samples you take for yn will
  have interferences from yn-1, yn-2, ,
  yn1, yn2
• So you want to use LPF such that all other
  non-relevant samples have 0 influence on the
  current sample.
• The Raised Cosine Filter satisfies this
  constraint
• Root means that the sender and receiver will each
  do half of it.

18
Carrier Phase Tracking
19
Sample Time
