Title: Multiplex Beer System Sizing


1

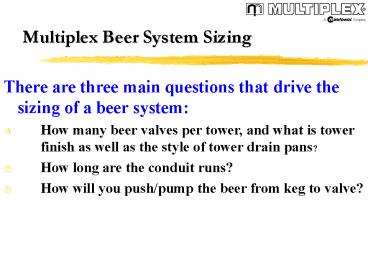

Multiplex Beer System Sizing
  • There are three main questions that drive the
    sizing of a beer system
  • How many beer valves per tower, and what is
    tower finish as well as the style of tower drain
    pans?
  • How long are the conduit runs?
  • How will you push/pump the beer from keg to
    valve?

2
Here is the selection process
  • Towers
  • Drain pan(s)
  • Main conduit (or trunk line) run or length
    calculation
  • Glycol supply conduit calculation
  • Beermaster glycol refrigeration unit selection
  • Pick glycol kit
  • Method to push/pump the beer?
  • Install kit
  • Options

3
(No Transcript)
4
Towers (1)
  • How many valves?
  • What style?
  • What type of finish?

Brass Chrome Ceramic Custom
5
Drip Pan (1a)
  • Use recommended pan size in the same finish as
    the tower

See Beer Price Booklet for recommended drain pan
size for each tower
6
Trunk Line Conduit Calculation (3)
  • (Trunk Line Conduit with beer and glycol lines
    together) Figure one line for each valve on the
    tower, plus two lines for glycol. If you have 6
    beers or more going to one tower, figure 4 glycol
    lines plus 1 beer line for each valve.
  • of feet from the walk-in cooler to each beer
    tower
  • of feet in ½ the cooler perimeter per run
    (i.e., 8 x 10 18ft.)
  • of feet up/down in the run (approx. 10 ft. ea.,
    total 20 ft.)
  • Total up the number of feet and add a 5 safety
    factor
  • (Use the new Beer Survey Form)

7
Glycol Supply Conduit Calculation (3a)
  • Conduit for glycol supply only of feet from
    the chiller unit to the walk-in cooler

8
  • Model 75 1/3 HP
  • Model 150 1/2 HP
  • Model 300 1 HP
  • Model 450 2.2 HP
  • the largest glycol unit available

9
Unit Selection (2)
  • The total length of conduit feet gives you the
    model (2) you need. Model number length of
    conduit
  • Model 75 120V (1pump/motor) in air or
    water-cooled, 75 run
  • Model 150 120V (max. of 2 pumps/motors supplied
    w/ 1) in air or water-cooled 150 run
  • Model 300 208-230V, single phase (max. of 3
    pumps/motors supplied w/1) in air or
    water-cooled 300 run
  • Model 450 208-230V/ 3 phase (max. of 4
    pumps/motors supplied w/ 3) in air, water or
    remote-air cooled 450 run
  • Variables to consider
  • For 6 beers and above add another glycol circuit.
    (And add one extra pump/motor per glycol
    circuit!)
  • If multiple directions of runs are needed, extra
    pumps/motors are needed--generally one pump/motor
    for each direction

10
Choosing a glycol kit (2a)
  • Add the appropriate size glycol kit for the unit
    selected. Glycol/water mixture 1/3--2/3.

11
Guide to of conduits run directions for each
Beermaster glycol unit
  • A Model 75 usually runs in one direction only,
    with just one conduit
  • A Model 150 can run two conduits in two
    directions simply by adding one glycol pump
    motor
  • A Model 300 can run three conduits in up to three
    directions by adding one or two glycol pumps
    motors
  • A Model 450 can run four conduits in up to four
    directions by adding one glycol pump motor
  • (See next slide)

12
75
150
300
450
13
Installation Kit (3b)
  • P/N 00211505 for up to 10 valves and up to 3
    towers
  • P/N 00211507 for up to 13 valves and up to 4
    towers
  • Each job requires at least one Installation Kit!

14
How are we going to push/pump the beer? (4)
  • This becomes a personal or financial preference
    select CO2 gas method or the pump method
  • C02 only (for Conduit runs of less than 60 feet
    only)
  • 1 primary regulator (4A) or step down regulator
    (4E) if soda system CO2 supply is available
  • Secondary regulators (4B) (1 per keg)

15
How are we going to push/pump the beer? (4)
  • CO2/AIR BLEND (Not recommended by Multiplex, nor
    Anheuser-Busch)
  • Primary regulators (4A) or Step down regulator
    (4E) if soda system CO2 supply is available
  • Secondary regulators (4B) (1 per keg)
  • Blender with Air Filter (4C)
  • Air Compressor (4D)

16
How are we going to push/pump the beer? (4)
  • Aligal (Beer gas, pre-blended CO2N2, which is
    CO2 plus Nitrogen in a pre-filled cylinder)
  • 1 primary regulator (4A) for Aligal tank
  • Secondary Regulators (4B) (1 per keg)
  • CO2/Nitrogen Blend (with separate N2 supply)
  • Primary regulators (4A) or Step down regulator
    (4E) if soda sys. CO2 is available
  • Nitrogen Primary regulator (00683128 must add
    nitrogen tank adapter 00204859)
  • Secondary regulator (4B) (1 per keg)
  • CO2/Nitrogen Blender (4C)
  • 1 outlet 2 needed if Guinness/Bass is dispensed

17
How are we going to push/pump the beer? (4)
  • Beer Pumps
  • 1 primary regulator for CO2 (4A) or step down
    regulator (4E) if soda system CO2 supply is
    available
  • Secondary regulators
  • 1 to operate all the beer pumps
  • plus 1 for every 3 kegs to pressurize kegs with
    CO2
  • Beer Pumps (1 per keg)

18
Options (5)
  • Empty beer detectors--should be on every job!
  • Wall hanging kit (Model 75, use 0021429 Model
    150, use SS206730)
  • Walk-in Cooler (38 degrees)
  • Chill-Pak super chiller (new)
  • Frosty Towers (new)

19
And the MOST IMPORTANT reason to use Multiplex
Beermaster Systems is
  • Control of the temperature of the beer to
    minimize foam and maximize the Retailers profit
