TIME DELAYED CONTROL OF A PENDULUM Analysis

1

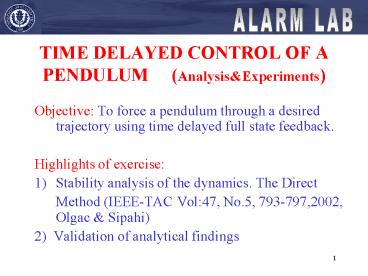

TIME DELAYED CONTROL OF A PENDULUM
(AnalysisExperiments)

• Objective To force a pendulum through a desired
  trajectory using time delayed full state
  feedback.
• Highlights of exercise
• Stability analysis of the dynamics. The Direct

• Method (IEEE-TAC Vol47, No.5,
  793-797,2002, Olgac Sipahi)
• 2) Validation of analytical findings

2
Pendulum Control System
Amplifier(Driver)
Computer (Controller)
Pendulum(System)
DC Motor(Actuator) Encoder(Feedback)
3
System Overview
4
1) Stability Analysis

• There are stability switches for the system at
  hand (system
• details are suppressed). They dictate the
  stability outlook

Note1 Delay (t)0, stable control system
Note2 Listed delays cause resonance at
corresponding frequencies
5
Experimental validation of stability switching
points (using impulse responses)
0.25
0.2

0.2
0.15
0.15
0.1
0.1
0.05
0.05
q rad
q rad
0
0
-0.05
-0.05
-0.1
-0.1
-0.15
-0.15
-0.2
-0.2
-0.25
-0.25
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
Time
Time
t 63.5 ms, w7.46 rad/s
t 425ms, w5.88 rad/s
Note All traces are in the steady state
6
Experimental validation of stability switching
points (using impulse responses) Contd
q rad
q rad
t 928 ms, w7.42 rad/s
t 1426 ms, w5.96 rad/s
7

Experimental validation of stability switching
points (using impulse responses) Contd
q rad
t 1849 ms, w7.28 rad/s
8
Achieving Optimum Rightmost Pole Using Time
Delay
Method The stability charts given in
Mechatronics, Vol.12, 393-413,2002,
Filipovic-Olgac. Claim Optimum rightmost
poles can be achieved by adding time delay to
system feedback without any other change in
control. Therefore performance of system can be
improved.
9
Rightmost Pole Influence on Impulse Response
Stable interval 1 0 lt t lt 63.5 ,
optimum t1 is 0 ms
2 432.4 lt t lt 911.4 , optimum t2 is 706
ms 3 1523 lt t lt
1759 , optimum t3 is 1666 ms
Impulse
Impulse
Stable, t2 706 ms Settling time (5) 1.71
sec
Stable, t1 0 ms Settling time (5) 3.45 sec

10
Rightmost Pole Influence on Impulse
Response Contd
Impulse
Impulse
Stable, t3 1666 ms Settling time (5) 4.1
sec
Unstable, t 200 ms
Conclusion t2 performs better than both t1
and t3
11
2) Trajectory Tracking I / Experimental
verificationDesired Trajectory
qd0.1sin(12.56 t)
Time
t1 0 ms , gives best transient performance
within interval 1 Figure shows the steady state.
12
Trajectory Tracking I (Contd)
t2 706 ms, gives best transient performance
within interval 2 Figure shows the steady state
13
Trajectory Tracking I (Contd)
t3 1666 ms, gives best transient performance
within interval 3 Figure shows the steady state.
14
Conclusion of Trajectory Tracking I
All optimal stable operations for t1 , t2 ,
t3 show similar tracking errors (at the steady
state). Their respective transient
characteristics are on pages 9,10 .
15
Trajectory Tracking II, Dual frequencyDesired
Trajectory qd0.1sin(12.56 t)0.02sin(9.4 t)
t1 0 ms, gives best transient performance
within interval 1 Figure shows the steady state.
16
Trajectory Tracking II (Contd)
t2 706 ms, gives best transient performance
within interval 2 Figure shows the steady state.

17
Trajectory Tracking II (Contd)
t3 1666 ms, gives best transient performance
within interval 3 Figure shows the steady state
18
Conclusion of Trajectory Tracking II
Tracking for dual frequency trajectory exhibit
similar tracking errors (at the steady state)
for all three stable pockets.
19
Results

• Stability pockets are analytically determined
  and experimentally verified.
• Time delay on feedback can be used as a parameter
  which improves the control performance.
