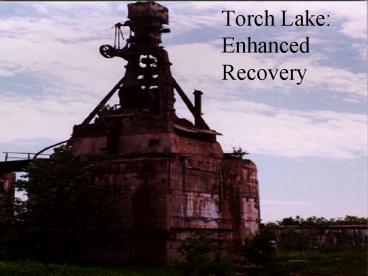

Torch Lake: Enhanced Recovery

1
Torch Lake Enhanced Recovery
2

• 1868 first stamp mill opened on Torch Lake
• 1/3 of lake filled in with stamp sands
• 1968 last stamp mill on Torch Lake closed
• 1972 27,000 gal of leaching liquor spilled in
  lake
• 1973 fish with tumors found in lake
• 1983 fish advisory posted
• 1983 IJC lists Torch Lake as Area of Concern
• 1986 Torch Lake becomes Superfund site

3

• 1992 EPA completes assessment and formulates
  remediation plan
• 1997 remediation performed in watershed (Scales
  Creek)
• 1997 Public Action Committee formed
• 1998 fish spawning reef constructed
• 1999-2003 stamp sands on shore covered with top
  soil
• 2004 remediated shore areas delisted from EPA
  Superfund list

4
(No Transcript)
5
(No Transcript)
6
Dissolved Cu in Torch Lake
7
(No Transcript)
8
(No Transcript)
9
Areal picture of lake with bathymetric
contours overlain
10
Post-mining sediments
Mining-period sediments
11
X-rays of Torch Lake sediment cores showing
varves (layers) in stamp sands
12
Post-mining sediments
Stamp sands
Note the high water content and lack of cohesion
in the Torch Lake sediments.
Torch Lake
Lake Superior
Portage Lake
13
Sediment core from Torch Lake with mine residues
overlaying fresh sediments.
Water with suspended clay
Layer of stamp sand on top of recovered sediment
Brown, post-mining sediments
Stamp sands underneath recent sediments
14
Canadian Interim Sediment Quality Guideline
Cessation of mining
Stamp sands
Probable effects level
15
Current Lake Status

• Sediments are accumulating very slowly (2 mm/yr)
• Copper concentrations remain 2 orders of
  magnitude above recommended concentrations and 1
  order of magnitude above known toxic effects
  level
• Some evidence exists of resuspension and mixing
  of stamp sands into fresh sediments.

16
Useful Web Sites
http//www.epa.gov/glnpo/aoc/trchlke.html - EPA's
web page on AOC, Superfund activities http//www.
torchlake.org/index.html - Public Advisory
Counsel (PAC) web page http//www.ijc.org/rel/bo
ards/annex2/tables/torchlak.html - IJC web
information on Torch Lake http//www.epa.gov/glnpo
/sediment/realizing2/RR2report.PDF - an EPA web
page on remediation of sites with contaminated
sediments
