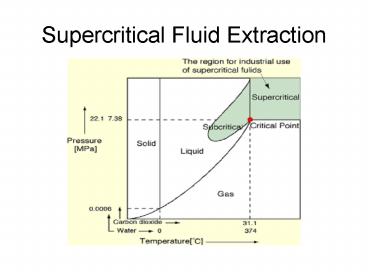

Supercritical Fluid Extraction

1
Supercritical Fluid Extraction
2
Supercritical Fluid Extraction

• SF combines desirable properties of gases and
  liquids
• Solubility of liquids
• Penetration power of gases
• Process flexibility Density of SF and solubility
  of a solute in it can be changed in a continuous
  manner by change of pressure
• Environmental perspective Innocuous substances
  such as water and carbon dioxide can be used as
  extracting solvents instead of organics

3
Applications of SFE

• Separation and purification of oils, flavours and
  medicinal components
• Removal of grease and other fouling material
• Removal of impurities from chemical products
• Breaking of azeotropes
• Fractionation and purification of polymers e.g.
  removal of unchanged monomers from polymers
• Food and beverage processing e.g. production of
  decaf coffee, alcohol free beer

4
SFE Solute solubility

• Density of a SF increases with pressure i.e. more
  solvent molecules per unit volume
• Pressure packs the solvent molecules closer and
  facilitates the entrapment of more solute
  molecules
• Dependence of solubility on pressure can be
  utilized to fine-tune the SFE process

Solubility of solute in SF Mass/volume
Pressure
5
SFE Enhanced penetration

• Diffusivity of solvent molecules in a SF approach
  gaseous state diffusivity
• Solute diffusivity within a SF approaches that
  shown in gaseous phase

Solvent (SF)
Solute
6
Density of SF
TR 0.8
TR 1.0
TR 0.9
TR 1.1
?R
1
TR 1.2
1
PR
7
SFE Types

• Liquid-SF extraction
• Similar to liquid-liquid extraction
• Examples
• Increasing ethanol concentration in aqueous
  solution
• Removal of alcohol from beer
• Solid-SF extraction
• Similar to solid-liquid extraction (leaching)
• Examples
• Removal of caffeine from coffee beans
• Polymer fractionation
• Extraction of flavours from rose petals

8
Liquid-SF extraction Ethanol enrichment by
supercritical CO2
Ethanol
Supercritical carbon dioxide
Water
Probably not the best extracting fluid for
ethanol enrichment!
9
Production of supercritical fluid
Adiabatic compression
Adiabatic compression heating
10
Enrichment of ethanol using supercritical CO2
Pressure reduction valve
Separator
Ethanol water mixture
Recycled carbon dioxide
Extractor
Ethanol
Carbon dioxide
Compressor
Raffinate
11
SFE using membrane

• Efficient segregation of streams
• Compactness of apparatus
• Large interfacial area
• Constant interfacial area which is independent of
  the fluid velocity

Feed
Raffinate
SF
Extract
12
Solid-SF extraction
Pressure reduction valve
Separator
Coffee beans
Recycled carbon dioxide
Extractor
Caffeine
Carbon dioxide
Compressor
Raffinate
