Title: Chapter 25: Enveloped DNA Viruses

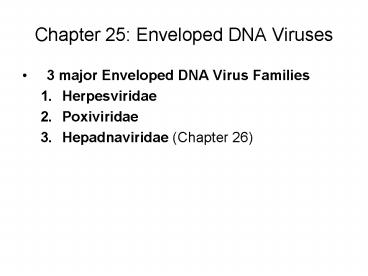

1Chapter 25 Enveloped DNA Viruses
- 3 major Enveloped DNA Virus Families
- Herpesviridae
- Poxiviridae
- Hepadnaviridae (Chapter 26)
2Herpesviridae
- Largest family of DNA viruses that affects humans
- Infections are very common viruses are
ubiquitous - Once you get Herpes virus, you always have it
always have the Herpes infection - 8 human herpesvirus species known, each w/
ability to enter a latent state following
1infection of their natural host be
reactivated _at_ a later time.
3Herpesviridae
- General Characteristics of HerpesViruses
- Icosahedral capsid enclosed in lipoprotein
envelope - Tegument amorphous proteinaceous material lying
between envelope and capsid - Contains virus-coded enzymes and transcription
factors - Genome single molecule of linear, ds-DNA
4Herpesviridae
- Classification of HerpesViruses
- a-Herpesvirinae (Herpes Simplex Virus group)
- Rapid, cytolytic growth cycle establish latency
in Nerve Ganglia - Lytic infections in permissive cells
Fibroblasts Epithelial cells - Members HSV-1, HSV-2 and VZV
- ß-Herpesvirinae (Cytomegalovirus group)
- Slow replication cycle, resulting information of
multinucleated, giant host cells - Latency established in non-neuronal tissues, 1
lymphoreticular cells glandular tissues - Members HCMV, HHV-6 and HHV-7
- ?-Herpesvirinae (Lymphoproliferative group)
- Replicate in mucosal epithelium, where latency is
also established - Induction of cell proliferation in lymphoblastoid
cells - Members EBV and HHV-8 (recovered from Kaposi
Sarcoma)
5Herpesviridae
- Nature of a-HerpesViruses
- Large, enveloped ds-DNA viruses
- Envelope obtained from host cell nuclear
membrane released by exocytosis or lysis - Genome encodes for proteins that regulate viral
mRNA synthesis by host cells DNA-dependent RNA
polymerase - HSV genome also encodes for proteins that
regulate DNA replication provides for own
DNA-dependent DNA polymerase - Initially uses host cells DNA-dependent RNA
polymerase to form viral mRNA, which is
translated into early proteins, such as viral
DNA-dependent DNA polymerase - Genome encodes for proteins that slow down or
stop host cells ability to synthesize own DNA,
RNA and proteins - Virus DNA replication assembly BOTH occur in
nucleus - Virus buds thru nuclear membrane and is released
from cell by exocytosis or lysis - When virus released, does NOT get envelop from
plasma membrane of host cell it was already
acquired from nuclear membrane
6Herpesviridae
- Summary of HSV Viral Cycle
- Viral envelope glycoporoteins bind (adsorb) virus
to host cell receptors - Fusion of viral envelope w/ host cell membrane
removal of envelope and release of nucleocapsid
tegument proteins into the cytoplasm - One tegument protein induces a host cell RNase
that degrades host cell mRNA, shutting off host
cell protein synthesis - Upon fusion, virion also releases proteins that
promote initiation of viral gene transcription,
thus beginning replicative cycle - Nucleocapsid is transported to a nuclear pore,
thru which viral DNA is released into the
nucleus. Another tegument protein is an
activator of cellular RNA polymerase that causes
the enzyme to initiate transcription of immediate
early viral genes, coding for a variety of
regulatory functions. Then delayed early viral
genes expression enzymes for replication of
viral DNA
7Herpesviridae
- Summary of HSV Viral Cycle
- Early proteins facilitate transcription of
viral genome and include the DNA-dependent DNA
polymerase - Late proteins structural and synthesized after
DNA replication - Acquisition of viral envelope
- Newly synthesized envelope proteins accumulate on
nuclear membrane - Nucleocapsids, now assembled, acquire their
envelopes by budding thru nuclear membrane - Enveloped nucleocapsids exit the host cell via
exocytosis or cell lysis (host cell dies) - Latency all herpesviruses can undergo this
alternative infection cycle, entering a quiescent
state from which they can be reactivated - Cells that promote latency semipermissive
cells restrict viral transcription of early
late proteins - Occurs in NERVE CELLS
8Herpes Simplex Virus, Types 1 2
- HSV infect most types of human cells
- Lytic infection in permissive Fibroblasts and
Epithelial cells - Latent infection in semipermissive neurons
- HSV-1 HSV-2 gt common human pathogens that
cause painful, but benign manifestations
recurrent disease - CLASSIC manifestation of lesions is that of clear
vesicle on an erythematous base, which progresses
to pustular lesions, ulcers and crusted lesions
9Herpes Simplex Virus, Types 1 2
- Epidemiology
- Reservoir humans w/ acute asymptomatic
infection person is infected for a life-time d/t
latency - HSV is an exclusive human disease
- Mode of Transmission p-p via direct contact w/
virus-containing secretions, both sexual
non-sexual fingers exchange of oral fomites
autoinnocualtion from oral/genital lesions to
other body areas (e.g., eyes) contact w/ lesions
on mucosal or cutaneous surfaces - Enveloped virus gt is readily inactivated by
drying, detergents and other adverse conditions - Transmission of HSV-1 via kissing or
saliva-contaminated fingers eating utensils,
toothbrushes, drinking glasses - Typical transmission adult w/ active recurring
lesion touches/kisses a child gt large s or
virus are present in vesicular fluids exudate
from ulcerative lesions - Transmission of HSV-2 is primarily by sexual
contact - HSV-2 found in 10-15 cases of STDs in clinics
- Also infected ?s can transmit virus to infants
during delivery
10Herpes Simplex Virus, Types 1 2
- Pathogenesis
- HSV-1 HSV-2 multiply in epithelial cells of
mucosal surface onto which they were innoculated
? production of vesicles or shallow ulcers
containing virus - Immune response via cytotoxic T-cells
(lymphocytes) in immunocompetent indiv. - Latency usually estd. in regional ganglia as
result of entry of infectious virions into
sensory neurons that terminate _at_ site of infection
11Herpes Simplex Virus, Types 1 2
- Clinical Significance
- HSV-1 generally causes lesion above waist
- HSV-2 generally causes lesions below waist
- Primary Infections of Upper Body
- Lesions consists of vesicles shallow ulcers
- Accompanied by fever, myalgia and malaise
- Gingivostomatitis (Herpes Labialis) m/c
symptomatic infection of upper body in children - Pharyngitis or tonsilitis m/c symptomatic
infection in adults - Keratoconjunctivitis
- HSV-1 infection of eye 2nd m/c cause of corneal
blindness (after trauma), corneal scarring - Herpetic Gladiatorium
- Herpes infection of the body d/t skin abrasions
- Seen in wrestlers burn victims
- Herpetic Whitlow
- Herpes infection of fingers /or hands
- Historically, dentist are _at_ high risk long
history of exposure before wearing gloves - Chiropractors esp. working w/ pts w/ shingles
12Herpes Labialis
- m/c clinical disease caused by HSV-1
- AKA cold sore or fever blister
- Lesion
- Clear vesicles on erythematous base, which
ulcerates and crusts over - Location around mouth or oral cavity
- Often re-occurs when virus buds from sensory
neuron, specifically CN V2 (Maxillary Branch of
the Trigeminal Nerve) - 1 infection
- Sxs fever, pain and irritability usu. persist
for 1 week, followed by gradual healing during
2nd week - Virus passes along Nerve fibers to regional
ganglia w/ Gingivostomatitis Trigeminal
Ganglia involved and virus becomes sequestered in
latent form there - Virus cant be detected in latent form no sxs
- Recurrence of latent infection activation by
emotional stress, trauma, UV-B sunlight, fear,
cold winds, hormonal ?s - Virus moves ? nerve fiber to cause recurring skin
lesions _at_ original inf. site
13Herpes Simplex Virus, Types 1 2
- Primary Infections of Upper Body
- Herpetic encephalitis
- VIREMIA allows spread of virus to CNS, brain in
particular - Destruction of temporal lobe, causing seizures,
focal neurological abnormalities, HA, fever - Untreated 70 mortality rate
- Primary infections of Lower Body
- Herpes genitalis Genital Herpes
- Infection w/ HSV-2 involving urogenital skin
mucous membranes - Majority of infections asymptomatic
- Symptomatic infections painful, itching,
vesiculoulcerative lesions upon genital tissue - Males glans or shaft of penis sometimes in
urethra - Females vulva, cervix (mucoid discharge
possible), perianal area, inner thighs and vagina - Accompanying by fever, malaise, myalgia,
inguinal adenitis (lymph node swelling)
possible b/c of transient viremia - Infections heal spontaneously in 2-4 weeks
- Recurrent infections common, but milder than 1
infection - Periodic recurrence d/t budding of HSV-2 from
Sacral N. ganglia
14Herpes Simplex Virus, Types 1 2
- Latency virus infects innervating sensory
neurons by retrograde transport to ganglia - HSV-1 in Trigeminal Ganglia (CN V2) for oral HSV
- HSV-2 in Sacral or Lumbar Ganglia for Genital
Herpes - Reactivation
- Hormonal ?s, fever, STRESS, and physical damage
to neurons gt all known triggers for viral
reactivation and replication of latent virus - Stress causes reactivation of viral genome newly
synthesized virions are transported ? the axon to
nerve endings from which the virus is released,
infecting the adjoining epithelial cells - Characteristic lesions produced in same area as
1 lesions, but less severe - HSV-1 lesions occur as clusters of vesicles _at_
border of lips Herpes labialis or cold sores,
fever blisters frequency 0 ? several/year - HSV-2 genital infections occur w/ greater
frequency (monthly), often asymptomatic, but
still w/ viral shedding - Circulating Ab does NOT prevent recurrence
15Herpes Simplex Virus, Types 1 2
- Laboratory Identification/Dx
- Clinical observation of the vesicular lesions
- Isolation of HSV from tissue scrapping sample
- Characteristic inclusion body in nucleus of
infected cell can be stained Intranuclear
inclusion body Cowdry Type A intranuclear
Inclusion Body - Treatment/Prevention
- Several antivirals drugs available that are DNA
inhibitors none cure the latent infection, but
can minimize asymptomatic viral shedding and
recurrence of symptoms - Prevention by avoidance of contact w/ potential
virus-shedding lesions safe sexual practice - No vaccine available
16Varicella-Zoster Virus
- Causative agent for varicella or chicken pox
- Reactivation of the latent infection produces
shingles - Classified in the a-Herpesvirinae subfamily of
HSV - Similar to HSV, but has smaller genome,
replicated slowly, infects narrower range of
cells - Establishes latent infections in neurons
- Recurrent infection along innervated dermatomes
- Vesicular, blister-like lesions
- Requires cell-mediated immunity to control and
prevent - Epidemiology
- 1 Mode of Transmission p-p, direct via
respiratory droplets - 2 Mode of Transmission p-p, direct contact w/
active vesicle - Systemically spread thru entire body by viremia
- VZV differs from HSV in that it produces a viremia
17Varicella-Zoster Virus
- Pathogenesis
- 1 infection in cells of respiratory mucosa
epithelial cells fibroblasts - Cell-to-cell spreading to region lymph nodes
- From lymph nodes to the blood 1 Viremia ? then
virus to reticuloendothelial system, where it
grows in liver, spleen, BM - 2 Viremia moves the virus from RES via the blood
to entire body, including the skin - Symptoms include fever, malaise, and
vesiculopustular rash that appears in successive
crops beginning on head/neck, than thorax, and
finally extremities
18Varicella-Zoster Virus
- Pathogenesis
- Virus becomes Latent in semi-permissive cells of
dorsal root ganglion (drg) /or cranial nerve
ganglia (CN V in particular) - Antibody limits viremia spread, but cell-mediated
immunity is required for complete resolution - Infection in adult is more serious than in
children - Reactivation VZV replicated and is released
along the neural pathways to the skin, causing a
vesicular rash along the entire dermatome
Shingles
19Varicella-Zoster Virus
- Clinical significance
- Chickenpox (Varicella Primary Infection)
- Childhood exanthem
- Mild childhood disease w/ sxs of fever
maculopapular rash (follows 14-day incubation) - Hallmark of Varicella Vesicle
- dew-drop on rose pedal lesion small red spots
in them - Becomes pustular crusts over, forming scab
- Successive crops of vesicles appaer over 3-5
days at any given stage, all lesions can be
observed - Lesions begin on scalp, spread over the face
neck to trunk, where they are most severe and
noticeable
20Varicella-Zoster Virus
- Clinical significance
- Shingles (Herpes zoster Recurrent infection)
- Recurrent manifestation of VZV acquired earlier
in life as chickenpox - Virus buds thru nerves along the dermatomes or
along CN V - Painful vesicular lesions having a erythematous
base develop along these nerve - Postherpetic neuralgia
- Chronic pain along the dermatomes, which persists
from years following a bout of shingles - Occurs in 30 pts gt65 yao
21Varicella-Zoster Virus
- Laboratory Identification/Dx
- Cytology
- Presence of Cowdry Type A intranuclear Inclusion
Bodies - Tznack smears from base of vesicles reveal
multinucleated giant cells (syncytia formation) - Ag detection
- Serology presence of IgM or 4-fold ? in IgG
- Treatment/Prevention
- Inmunocompromised antiviral drug
- VZ Ig vaccination in susceptible individuals
(immunocompromised) no effect on zoster
22Human Cytomegalovirus
- Member of the ß-Herpesvirinae subfamily of
Herpesvirinae family - Is the LARGEST known virus to infect humans
largest genomes of all herpesviruses - Longer replication cycle and infected cells are
greatly enlarged and mulitnucleated - Cytomegalo cell of great size name for classic
cytomegalic inclusion disease derives from
propensity for massive enlargement of
CMV-infected cells
23Human Cytomegalovirus
- Nature of the organism
- Linear, ds-DNA housed in icosahedral capsid
- Lipid envelope contains gps that facilitate
attachment and entry into host cell - Pathogenesis
- CMV is lymphotrophic affinity for lymphocytes
- Replicates only in human cells
- Permissive cells fibroblasts, epithelial cells,
macrophages - Semi-permissive cells mononuclaer lymphocytes,
stromal cells of BM, leukocytes cells of kidney,
heart, lung - CMV readily establishes persistent and latent
infections
24Human Cytomegalovirus
- Pathogenesis
- Replicative cycle same as for other
Herpesviruses - Occurs in epithelial cells and virus is shed in
most body fluids (Viremia when into blood) - Virus then infects lymphocytes and macrophages
- Latent infection is established in mononuclear
lymphocytes and fibroblasts in organs, such as
Kidney, Heart, and Lung - Reactivation d/t various factors like
immunosuppresion - Reactivation often follows blood transfusion and
organ transplants
25Human Cytomegalovirus
- Epidemiology
- Infection in children is usually asymptomatic
- Virus is shed in tears, urine, saliva, semen,
breast milk, vaginal secretions virtually any
body fluid - Transmission is by intimate contact w/ these
bodily fuilds saliva m/c - Transmission also by sexual intercourse, blood
transfusion, organ transplants CMV can also
cross placenta and infect neonate in utero of
newborn via breast milk - Mode of Transmission p-p direct (slivary
droplet), vertical (congenital), direct (sexual),
blood transfusion, tiss/organ transplant
26Human Cytomegalovirus
- Clinical Significance
- Cytomegalo Inclusion Disease
- Asymptomatic Infection
- In most healthy people no symptoms
- If sxs develop mono or hepatits
- Mononucleosis Syndrome
- Similar to EBV w/ atypical lymphocytosis
- Mild pharyngitis and variable lymphadenopathy
- Sxs malaise, myalgia, fever, liver dysfunction,
lymphocytosis, subclinical hepatitis - Heterophile-Negative Mononucleosis
- Distinguishes Heterophile-Positive Mononucleosis
- Hepatitis
- Liver dysfunction similar to hepatitis, but NO
evidence of hepatitis virus
27Human Cytomegalovirus
- Clinical Significance
- Congenital
- HCMV is the m/c intrauterine viral infection
- Vertical transmission mother ? infant
- Virus crosses placenta from mothers blood
primary infection - Virus ascends from cervix during reoccurrence
- CMV is the most prevalent viral cause of
congenital disease - Pathology
- Microencephaly
- Intracerbral calcifications
- Hepatosplenmegaly
- Rash
28Human Cytomegalovirus
- Clinical Significance
- Transfusion Transplantation Recipients
- Mononucleosis or hepatitis following blood
transfusion - Virus is frequently transmitted reactivated in
organ transplants - Immunocompromised patients
- 1 and 2 infections may occur in pts w/
decreased cellular immunity - Cancer pts
- AIDS pts
29Human Cytomegalovirus
- Laboratory Identification/Dx
- Cytology
- Cytomegalic cell hallmark
- Enlarged cell in which nucleus contains a dense,
central, basophilic intranuclear inclusion body
resembled Owls Eye - Ag detection
- PCR analysis
- Enzyme of fluorescent labeled monoclonal Ab
- Serology
- Looking for IgM or IgG Abs
- Culture
- CMV grows in diploid-fibroblast cell cultures
- Characteristic CPEs seen in 4-6 weeks
- Not routinely done
30Human Herpesvirus Type 6 7
- Members of ß-Herpesvirinae
- Both are causative agents of Roseola Infantum
(exathem subitum) - Lymphotrophic and ubiquitous
- 45 of U.S. children are seropositive by age 2
- An infection of T-cells
- Symptoms
- Rapid onset of fever to 103-105F may last 4-5
days - Fever is followed by generalized rash (exathem)
in 24 hours lasts 24-48 hours - Rash is d/t delayed hypersensitivity of T-cell
activation in the skin - T-cells resolve the infection, but virus may
remain latent in T-cells for a life time. - HHV-6 is also a co-factor in AIDS pts causing
Mono or lymphadenopathy - Early HIV co-infection w/ HHV-6 Terminal HIV
(encephalitis) - Virus is shed via oral secretion for adults to
children
31Human Herpesviruse Type 8
- Does not occur as frequently as the other herpes
viruses in the normal, healthy population - Virus genome /or viral proteins have been
detected in gt90 of pts w/ Kaposi Sarcoma
32Epstein-Barr Virus
- Member of ?-Herpesvirinae subfamily of
Herpesvirinae family of DNA viruses - Ubiquitous virus
- Etiological agent for Infectious Mononucleosis
(kissing disease) in young adults - Nature of the organism
- Enveloped virus w/ linear, ds-DNA
- Easily disrupted by acids, detergents and
desiccation transmission is effectively
accomplished via intimates contact and saliva - DNA core surrounded by icosahedral nucleocapsi
- Very limited host range affinity for C3d
component of C system C3d is expressed on
B-cells and epithelial cells of oropharynx and
nasopharynx
33Epstein-Barr Virus
- Epidemiology
- Reservoir humans, EBV only infects humans
- Humans can be both symptomatic asymptomatic
- Mode of Transmission p-p, direct, saliva
intimate oral contact - Is kissing disease b/c increased incidence in
adolescents and young adults who exchange saliva - 70 of U.S. population is infected by age 30
- 100,000 college undergraduate students infected
each year - Children w/ subclinical disease infected _at_
early age by sharing drinking glasses from
parents - High risk for lymphoproliferative disease
disorders initiated by EBV in - Transplant pts who are immunocompromised
- Genetically immunodeficient patients
- AIDS patients
34Epstein-Barr Virus
- Pathogenesis
- Productive infection of B-cells of oropharynx gt
promotes shedding of virus into the saliva then
transmission of virus to other hosts - Viremia is established to spread the virus to
other B-cells in lymphatic tissue and blood - EBV is a B-cell mitogen stimulated growth
prevents apoptosis stimulated rapid growth of
B-cells - Interaction between the B-cell and EBV does NOT
destroy the B-cell, but rather transforms the
B-cell. The transformed B-cells contain many
copies of EBV DNA, proliferate rapidly and have
EBV Ags on cell membrane
35Epstein-Barr Virus
- Pathogensis
- LYTIC infections occur in permissive cells,
mostly epithelial cells - LATENT infections occur in semipermissive
B-cells or non-permissive B-cells - 2 infection subtypes in this subfamily
- EBV-1
- EBV-2
36Epstein-Barr Virus
- Clinical Disease
- Infectious Mononucleosis
- m/c manifestation of EBV Kissing Disease
- Incubation period 3-7 weeks
- Onset is gradual, up to 1 week in duration
(malaise, HA, fatigue, Low grade fever) - Acute phase 1-3 weeks in duration
- Intermittent high fever, generalized weakness,
severe sore throat, swollen lymph nodes, atypical
lymphocytes
37Epstein-Barr Virus
- Clinical Disease
- Infectious mononucleosis
- Summary of Signs Symptoms m/c complaint
FATIGUE - High fever
- Generalized malaise
- Exudative pharyngitis and tonsilitis
- Lymphademopathy - lymph node swelling
- Often heptosplenomegaly enlargement of liver
and spleen - Occasional rash
- Lymphocytosis gt ??? of T-lymphocytes in blood
- 10-80 of these are atypical Atypical
Lymphocytes or Downey Cells enlarged T
lymphocytes w/ eccentric nuclei and vacuolated
cytoplasm - Heterophile () Heterophile Ab specific for EBV
- Nonspecific Abs, including IgM Ab, that
recognizes Paul-Bunnel Ag on sheep, horse and
bovine Erythrocytes (RBCs)
38Epstein-Barr Virus
- Clinical Disease
- Infectious Mononucleosis
- Rarely fatal in healthy people, but can cause
serious complications - Neurological disorders
- Laryngeal obstruction
- Splenic rupture
- Meningoencephalitis
- Guillian-Barre Syndrome (ascending paralysis)
39Epstein-Barr Virus
- Other Clinical Diseases
- Chronic mono-like disease
- Characterized by chronic fatigue low grade
fever, HAs and sore throat may also be present - Lymphoproliferative diseases
- Hairy Oral Leukoplakia
- Productive infection of epithelial cells in
mouth, esp. tongue - An opportunisitic manifestation that occurs in
AIDS pts - (African) Burkitts Lymphoma
- m/c outcome of EBV exposed to non-permissive
B-cells get tumor formation (lymphoma) B-cell
proliferation in lymphatics of the jaw face
mostly seen in children - Adults may occur in abdomen get abdominal
tumors - Malaria seems to enhance this in Africa endemic
in children living in Malaria regions of
Sub-Saharan Africa
40Epstein-Barr Virus
- Other Clinical Diseases
- Lymphoproliferative Diseases
- Hodgkins Lymphoma
- Expression of EBV outside Africa
- Sxs similar to B.L.
- Nasopharyngeal carinoma
- Seen in Chinese males
- Tumor of epithelial origin
- Lymphocytic pneumonia
41Epstein-Barr Virus
- Laboratory Clinical Dx
- Based on symptoms
- The finding of atypical lymphocytes (Downey
Cells) - Persistence of lymphocytosis, Herterophile Ab,
and Ab to EBV Ags - Sxs extreme fatigue, pharyngitis, lymphadenosis
(swollen lymph nodes), high fever,
hepatosplenomegaly gt adolescent, young adults - Lymphocytosis 60-70 mononuclear cells w/ 30
Atypical lymphocytes Earliest indicator of
disease - Ag detection DNA probes, immunofluorescence
- Serology
- Heterophile Ab is present by end of 1st week and
is EXCELLENT indicator of EBV infection in adults
42Epstein-Barr Virus
- Treatment Prevention
- No effective tx for EBV no viral vaccine
- Bed rest is BEST during acute phase
- In children less severe infection ? immunity
developed lifelong early exposure may be a
means of preventing more severe infections and
symptomatic disease. - Contact physical activities should be avoided b/c
a swollen spleen could rupture
43Poxviridae
- Variola virus etiological agent for Small Pox,
which has been eradicated! - Small pox 1st disease to be controlled by
immunization its eradication is one of the
greatest triumphs of Medical Epidemiology - Variola virus only DNA virus that replicates in
the CYTOPLASM - Virion carries its own DNA-dependent RNA
polymerase to allow for viral replication to
occur in the cytoplasm - Inclusion bodies (Guariniers) serve as sites of
DNA replication in the cytoplasm (Cytoplasmic
Factories) - Clinical
- Small Pox eradicated
- Molluscum Contagiosum
- Only poxvirus disease seen today
- Etiological agent Molluscum contagiosum virus
- Benign epidermal tumor that occurs only in humans
- Appears as papules nodules on skin have
central casseous plug that can be squeezed out
(expressed) - M/c on trunk, genitalia, proximal extremities
- Lesions itch - autoinnoculation
