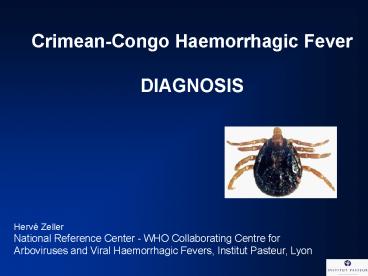

Crimean-Congo Haemorrhagic Fever DIAGNOSIS
Hervé Zeller National Reference Center - WHO
Collaborating Centre for Arboviruses and Viral
Haemorrhagic Fevers, Institut Pasteur, Lyon
2
Viral Haemorrhagic Fevers
3
Viral Haemorrhagic Fevers
Arenaviridae (Lassa, Junin, Machupo, Guanarito)
4
Viral Haemorrhagic Fevers
Arenaviridae (Lassa, Junin, Machupo, Guanarito)
Filoviridae (Ebola, Marburg)
5
Viral Haemorrhagic Fevers
Arenaviridae (Lassa, Junin, Machupo, Guanarito)
Envelopped RNA viruses
Bunyaviridae (CCHF, RVF, Hantaviruses)
Filoviridae (Ebola, Marburg)
6
Family Genus VIRUS DISTRIBUTION Flaviviridae
Flavivirus Yellow Fever Africa South
America Dengue 1,2,3,4. Tropical
areas Omsk HF Russia Alkhurma Saudi
Arabia Kyasanur Forest HF India Bunyavirida
e Phlebovirus Rift Valley Fever Africa, Saudi
Arabia Nairovirus Crimean-Congo HF Africa,
Eurasia Hantavirus Hantan Dobrava Puumala
Eurasia Sin Nombre, Andes Americas
7
Hemorrhages are inconstant Emerging part of the
iceberg Most frequently asymptomatic
infections
8
Biosafety Issues Related to Haemorrhagic Fever
Viruses

• Criteria for classification
• Disease severity
• Transmissibility to laboratory workers
• Availability of treatment
• Availability of vaccine
• Classification BSL 1 to BSL4

9
CCHF VIABILITY SENSITIVITY TO DESINFECTANTS
sodium hypochlorite 2, glutaraldehyde 2,
formaldehyde SENSITIVE TO DESSICATION INACTIVA
TION IRRADIATION UV TEMPERATURE 1 hour
60C not complete inactivation beta
propiolactone 4C not complete inactivation
Triton X100
10
(No Transcript)
11
CCHF Nairovirus genome   _________________________
____________________ Segment Nucleotides Amino
acids Protein __________________________________
___________ S 1659-1712 442-482
N M 4888 1551 G1 G2 NSm? L 12255 4036
L? _____________________________________________
12
VHF SUSPECT CASE
13
VHF SUSPECT CASE
Malaria Hepatitis Typhoidis
Toxicosis Septicemia Leptospirosis Rickettsiosis

14
VHF SUSPECT CASE
Malaria Hepatitis Typhoidis
Toxicosis Septicemia Leptospirosis Rickettsiosis

Epidemiological data, risk evaluation biological
analysis, differential diagnostic
15
VHF SUSPECT CASE
Malaria Hepatitis Typhoidis
Toxicosis Septicemia Leptospirosis Rickettsiosis

Epidemiological data, risk evaluation biological
analysis, differential diagnostic
Contact between clinicians and biologists
16
CCHF laboratory data
LEUCOPENIA, particularly neutropenia THROMBOCYTOPE
NIA Hematocrite increases early then falls
down ASL, AST levels increases Proteinuria and
hematuria Mild azotemia, bilirubine increase
17
CCHF laboratory diagnosis

• Viral detection blood specimen
• RT-PCR (nested)
• Cell culture (Vero E6 cells)

18
CCHF laboratory diagnosis

• Viral detection (blood specimen)
• RT-PCR (nested)
• Cell culture (Vero E6 cells)
• Antibody detection (serum sample)
• IFA
• ELISA IgM (immuno-capture) IgG
• NT

19
CCHF laboratory diagnosis
Viremia 10-12 days (although afebrile). Can be
detected by PCR up to day 16 By day 9 all
patients will have IgM or IgG antibody
Information needed DATE OF ONSET OF FEVER
20
CCHF viral/antibody kinetics
IgM
IgG
viremia
5
0
10
RT-PCR
16
Viral isolation
ELISA IgM IgG
IFA
IgM duration 2-3 months up to 6 months
21
Primers for RT-PCR on S segment
From J. Smith, 1990
22
RT-PCR /Southern blot hybridization/antibody
retrospective study
From Burt et al, J Virol Methods 1998, 70129-137
23
RT-PCR /Southern blot hybridization/IFA antibody
26 samples from 19 patients from day 3-12 of
illness
From Burt et al, J Virol Methods 1998,
70129-137
24
Hyalomma sp.
ticks
RT-PCR Viral isolation
25
536 pb amplicons of the S fragment of CCHF genome
using primers CSDR3/CSDF2. RFLP with Hinf I, Hae
III, and Alu I endonucleases
Rapport IP Dakar 1993
26
Turkey 2003
Phylogenetic analysis of 46 partial sequences
(219 bp) of the S segment of CCHF virus
27
Phylogenetic analysis of 46 partial sequences
(219 bp) of the S segment of CCHF virus. Seven
major genetic groups. Strains from the Middle
and Far East and from different African regions
cluster in clearly separated groups. TURKEY
2003 Preliminary data 96-98 homology with
strains from the Balck Sea area and
Kosovo KOSOVO AF404507 STAVROPOL AF481802
DROSDOV U88412 ROSTOV AY277672
Drostein et al, J Clin Microbiol 2002, 40 1122
28
National Reference Center - WHO Collaborating
Centre for Arboviruses and Viral Haemorrhagic
Fevers, Institut Pasteur, Lyon Marie-Claude
Georges Isabelle Schuffenecker Ingrid
Marendat Séverine Murri Hervé Zeller
BSL 3
BSL 4
