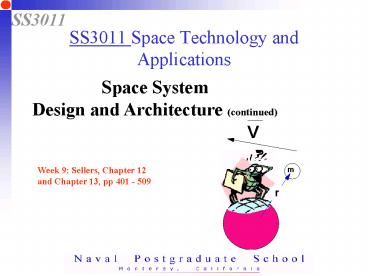

SS3011 Space Technology and Applications

1
SS3011 Space Technology and Applications
Space System Design and Architecture (continued)
Week 9 Sellers, Chapter 12 and Chapter 13, pp
401 - 509
2
Reaction Control Systems - Propulsion(RCS)

• The spacecraft propulsion system provides
  controlled impulse for
• Orbit insertion and transfers
• Orbit maintenance (station keeping)
• Attitude Control
• Propulsion Types
• Cold gas, monopropellant, bipropellants, ion

3
Reaction Control Systems (RCS)
4

• RCS (cont.)
• Propulsion system components
• Fuel Tanks
• Thrust engines
• Oxidizer tanks (for bipropellant systems)
• Pressure regulators
• Fill, vent, drain, isolation valves
• Pressure temperature transducers
• Heaters

5
RCS Example Cold Jet Thruster
No Combustion Thrust provided by
expansion of gas through Nozzle Low Isp
Simple Mechanism
Gas Storage Tank
Gas Exhaust Nozzle
Pressure Regulator
Actuator Valve for Gas Flow
6
Hall Thruster
Hall Thruster
Anode (200 - 1000 V)
Hollow Cathode

• Principle Electromagnetic Acceleration of
  Ions
• Propellant Xe, Kr

Magnets
ION BEAM
Isp 1000-3000 sec ? 30-60 Thrust 5-400
mN Power 50W - 4.5 kW
Gas Inlet
ION BEAM
1. Electrons emitted from the cathode travel
toward the anode. 2. Electrons are impeded in the
discharge channel by a strong radial magnetic
field, causing a strong axial electric field to
concentrate in this region. 4. This electric
field heats the electrons, which subsequently
ionize gaseous propellant (xenon) emitted near
the anode. 6. The ionized gas accelerates axially
through the electric field in the discharge
channel, exiting the device at high speed, thus
producing thrust.
SPT-140 DM3
7
RCS Control Maneuvers
Rate Nulling
8
RCS Control Maneuvers
0
0
RCS Torque Impulse Counters rates
9
Example Yaw Damping
10
Example Yaw Damping (contd)
xthrusters
11
RCS Thrust Profile
Thrusters Tend to Fire Impulsively
Calibration
Tells Flight Control Computer How Long to Fire
Thrusters
12
Fuel Budget for the Burn
From Calibration
13
Attitude Controland even More Complex Feed-back
Control Problem
Sensor
Magnetometer
Attitude Determination Loop
Attitude Determination and Control System (ADCS)
14
Attitude Controland even More Complex Feed-back
Control Problem
thrusters
Feed-back Control and Actuation Loop
15
Electrical Power System(EPS)

• Solar Cells/Batteries, Radioactive Thermal
  Generators (RTG)
• Solar Cells
• Silicon (14 Efficiency) - 190 W/m2
• Gallium Arsenide (18) - 244 W/m2
• Degradation (3-4/yr LEO)
• Temperature (.5 decrease per degree)
• Sun Incidence angle

16
Solar Cells
Effect of Temperature On h
17
Solar Cell Efficiency
Vmax
18
Where is Maximum Power Point
19
Max Power Point (contd)
20
Effect of Aging
Vmax
Beginning-of-Life Power Must be Large Enough
to Accommodate End-of-Life Power
21
Effect of Eclipses
Most Spacecraft Pass into Earths Shadow Once
Each Orbit Effect Causes Cyclic Power
Production
22
Cyclic Power Production
Cyclic Power Production Requires Significant
Power Conditioning and Storage capacity
23
How Long Will the Eclipse Last
Ignore Effect of Elevation Angle (worst case
scenario)
24
Power Distribution and Storage System
25
Batteries and Storage Systems
26
Batteries and Storage Systems

• Batteries
• Nickel Cadmium, Nickel Hydrogen
• Cycles
• LEO - every orbit (5000/yr)
• GEO - two 45 day periods

• Issues
• Depth of Discharge (Deep-Cycle Tolerance)
• Charge/Discharge Time
• Weight
• Power Regulation and Distribution

27
Power Distribution and Storage System(example)
28
Thermal Control System

• Manages Heat Flow Through Spacecraft to Keep
  Systems within Operating Temperature Ranges
• -- Typical operating ranges (?C)
• 0 to 40 for Electronics
• 5 to 20 for Batteries
• 7 to 35 for Hydrazine
• Propellant
• -100 to 100 for
• Solar Arrays
• -200 to -80 for IR
• payload sensors

29
Thermal Control Systems (TCS)

• Spacecraft Heat Sources
• Internal, Direct Solar, Albedo, Earth, Space

30
Forms Of Heat Transfer

• Radiation, Conduction

Radiation -- heat transmission through space
31
Radiation
Incoming Radiant Energy
32
Radiation (contd)
Emitted Radiant Energy -- as object heats
up, it radiates energy back into space
33
Example How Fast Does an Insulated Plate Heat Up
Assume Sun angle is q
34
Example (contd)
35
Change in Internal Energy of the Plate
36
Radiation Heating Example (contd)
37
Radiation Heating Example (concluded)
38
How Do TCS Work

• Radiation, Conduction
• (No Convection -- no air)

Conduction -- heat transmission through a solid
x
k -- thermal conductivity W/ ? k m
39
Conduction
40
Heat management techniques

• Two basic techniques
• Passive thermal control
• Thermal coatings
• Thermal insulation (MLI)
• Heat Sinks
• Mirrors (OSR)
• Active thermal control
• Heaters/Thermostats
• Louvers/shades
• Heat pipes

41
Heat management techniques

• Two basic techniques
• Passive thermal control
• Thermal coatings
• Thermal insulation (MLI)
• Heat Sinks
• Mirrors (OSR)
• Active thermal control
• Heaters/Thermostats
• Louvers/shades
• Heat pipes

42
Heat Pipes
Low Boiling Point Liquid Liquid Absorbs Heat
at Hot-end Vaporized Liquid Condenses at Cold
end . Releases heat Capillarity Action
Carries Liquid back to Hot End of Tube
43
Structure

• Provides stable support and maintains its
  integrity during all mission phases
• Provide a compatible interface with the launch
  vehicle
• Must meet the functional requirements of all
  subsystems

44
Structure (cont.)

• Must withstand
• Launch loads
• Ground qualification and acceptance test loads
• On-orbit loads
• Shock and vibration (separation loads reach 5,000
  to 10,000 Gs)
• Pyro shock

45
Example Launch Loads
46
Structure (cont.)

• Primary and secondary
• Primary
• Main load bearing element, provides the most
  direct and efficient load path from various
  spacecraft components to the launch vehicle
  interface
• Goal is to achieve high strength and stiffness,
  low weight and high buckling strength
• Secondary
• Includes all other bracketry, solar arrays,
  antennas and appendages
• Structure is typically 5 to 20 of total weight

47
Types of Loads
Axial
Shear
Lateral
48
Types of Loads (contd)
T
Bending
Torsional
49
Stress versus Strain
Stress (force per unit area tensor)
Fz
Fx
50
Stress versus Strain
Strain deformation due to load
51
Mechanisms

• Electro-mechanical devices employed to carry out
  key functions
• Separation systems
• Antenna deployment and pointing
• Attitude control
• Experiment orientation and control
• One-shot or Continuous

52
Mechanisms (cont.)

• 3 Basic Categories
• One Shot
• Solar array deployment
• Antennas
• Booms
• separation ordnance
• Continuous Operation
• Momentum wheels
• solar array drives

53
Spacecraft Harness

• The spacecraft harness provides electrical
  connections for both signal and power between all
  subsystems, instruments and payloads. It
  includes
• All interconnecting cables
• Umbilical wiring for ground checkout and launcher
  interface
• Separation switches
• Grounding connectors

54
Telemetry, Tracking and Command (TTC)

• Telemetry
• Gathers data from other subsystems
• Processes and formats data
• Transmits data to the ground station
• Tracking
• Determines satellite position
• Command
• Satellite control is established and maintained

55
Telemetry, Tracking and Command (TTC)
56
Ground System Interface

• Degree of Autonomy
• Ground Stations
• Space Links
• Guidance Navigation
• (Orbit Determination)

Uplink
Data
Facility
Mgmt
Output
57
Testing and Flight Qualification

• Static loads
• Alignment verification
• Acceleration tests
• Centrifuge
• Vibration / Acoustic
• Pyro shock
• Spin balance
• Mass properties

58
Testing (cont.)

• Appendage deployment
• Antenna patterns
• Magnetic moments
• Thermal vacuum and thermal screening
• Solar simulation
• Electromagnetic compatibility
• Leak / Pressure tests
• Integrated system electrical functional
• Ground station compatibility
