Title: EE 1101 Circ N 4'2

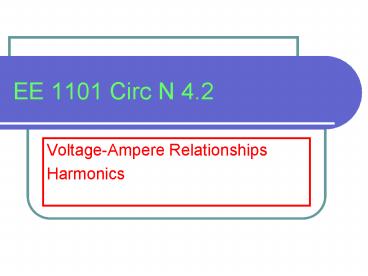

1
EE 1101 Circ N 4.2
  • Voltage-Ampere Relationships
  • Harmonics

2
Fundamental freq harmonics
  • A sine wave is usually represented by
  • v(t) Vsin(wt)
  • It has w or f as its frequency and the period T
    given by

3
Fundamental freq harmonics
  • However, if for some reason (e.g. saturation) the
    sine wave is distorted its equation will change
    to

4
Fundamental freq harmonics
  • has the fundamental freq w AND other freq
  • known as harmonics.
  • It is noted that the harmonics are multiples of
    the fundamental freq.
  • It is well known that the magnitudes

5
Sine wave (clean)
6
Sine wave (distorted)
7
Other Periodic Functions
  • Using Fourier Functions (or otherwise) other
    periodic functions can be expressed in terms of
    sine/cosine functions. These expressions clearly
    bring out the fundamental freq harmonics.
  • Examples are (i) square wave (ii) triangular
    wave.

8
Square Wave
A
wt
-A
9
Triangular Wave
V
wt
-V
10
Square wave (Fourier Analysis)
11
Square wave (Fourier Analysis)
12
Square wave (Fourier Analysis)
  • The square wave analysis is

13
Triangular wave (Fourier Analysis)
14
Triangular wave (Fourier Analysis)
15
Triangular wave (Fourier Analysis)
16
Fundamental freq harmonics
  • In conclusion
  • Any wave form can be represented by a sum of
    sinusoidal functions (sine waves) one wave as a
    fundamental the rest as harmonics. The
    harmonics progressively decrease in magnitude
    in practice higher ones are neglected. If we draw
    a freq spectrum the obvious is seen.

17
Freq Spectrum of Square Wave
Magnitudes (peak values)
3
5
1
freq
18
Phase Phase Difference
  • These are best understood when we consider
    voltages currents in a circuit.
  • A purely resistive circuit is

R
i
19
Phase Phase Difference
20
Phase Phase Difference R-L Circuit
i
R
L
21
Phase Phase Difference R-L Circuit
22
Phasor Diagram for R-L Circuit
Im
I
Re
i
23
Phase Phase Difference R-C Circuit
  • A capacitive circuit is

R
i
C
24
Phase Phase Difference R-C Circuit
25
Phasor Diagram for R-C Circuit
Im
i
Re
26
Leading lagging sinusoids
  • A sinusoidal signal that leads another reaches
    its peak BEFORE the one it leads does so.
  • The opposite is indeed true.
  • Exercise
  • Use the above information to sketch v, i as
    sinusoidal signals clearly indicate
