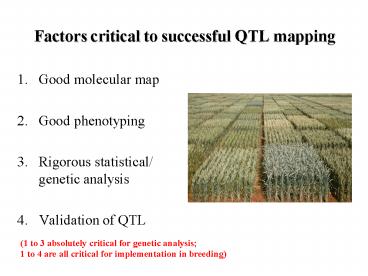

Factors critical to successful QTL mapping

1
Factors critical to successful QTL mapping

• Good molecular map
• Good phenotyping
• Rigorous statistical/ genetic analysis
• Validation of QTL

(1 to 3 absolutely critical for genetic analysis
1 to 4 are all critical for implementation in
breeding)
2
Why is good phenotyping important?Response to
selection and heritability
R i sP h2
3
Response to selection
h2 100
h2 50
h2 0
Original population
frequency
Trait value
Selected population
small s2G
moderate s2G
large s2G
As such, heritability is best thought of as the
correlation of phenotype with genotype
4
Response to selection and heritability
R i sP h2
Narrow-sense heritability
Single observation h2 s2G s2GE / (s2G
s2GE s2Residual)
Multiple observations h2 s2G / (s2G
s2GE/ne s2Residual/nenr )
5
Mapping population size limits accuracy of QTL
mapping (simulated data)

• QTL h2 n Power Bias (?G2)
• 10 .30 100 9 559
• 10 .95 100 39 197
• 10 .30 500 57 144
• 40 .95 500 46 165
• (Beavis, 1998)

(more markers do not solve this problem!)
6
(Real data!!)
7
Location of QTL

• Perfect marker (SNP) Rht-B1b for plant height
• Marker/gene located at 51.8cM along chromosome
• Analysis of plant height data in
  Cranbrook/Halberd
• 8 environments (h2SP 0.41 to 0.78)
• Depending on environment, QTL located at 47 to
  58cm along chromosome 4B
• One-step, multi-environment analysis (h2LM 0.91
  0.04)
• QTL located at 52cM along chromosome 4B

8
So?

• Heritability limits QTL detection independent of
  map quality
• Heritability is a test of the potential genetic
  variance that can be accounted for
• So, why dont journals require heritability be
  published?

9
QTLNetwork version 2.0
10
Breeding progress for yield at CIMMYT reflected
in higher stomatal conductance
Fischer et al., 1998
11
Leaf section
Stomatal cavity
12
Stomatal conductance also impacts of
transpiration efficiency and adaptation to drought
12CO2 diffuses more rapidly through stomatal
pores 12CO2 preferentially fixed by Rubisco
13
Leaf porosity measured using viscous flow
porometer
14
Stomatal conductance - Cranbrook/Halberd
Plant height
Anthesis date
15
Stomatal conductance Sunco/Tasman
Plant height
Anthesis date
