Title: Detention Design

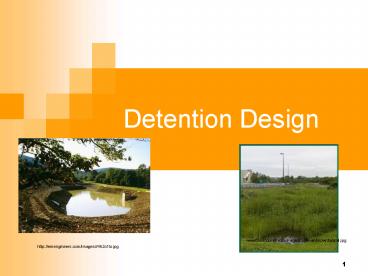

1
Detention Design

www.b-e-c.com/PromoPages/GatewayBrownfields4.jpg
http//emengineers.com/images/Wh2o1lo.jpg
2
Objectives
  • Know what a detention basin is
  • Compute a reservoir routing by hand
  • Inflow Hydrograph
  • Storage and Outflow versus WSE
  • Routing Table

3
/www.dfo-mpo.gc.ca/canwaters-eauxcan/infocentre/gu
idelines-conseils/factsheets-feuillets/nfld/images
/fact17_e/4-7.jpg
4
Detention Basin-Purposes
  • Store water temporarily during a storm and
    release the stored water slowly
  • Attenuate the flow
  • Store first-flush
  • Design for infiltration

5
Detention Basins
  • On-Site
  • Regional

6
Detention Basins
  • Inflow (ditch or pipe)
  • Storage
  • Outflow (orifice or weir)
  • Emergency spillway

7
Routing
  • Method used to model the outflow hydrograph
  • Based on continuity equation
  • Water in varies
  • Water out varies

8
Information Needed to Route
  • Inflow hydrograph
  • Relation of storage volume to elevation in the
    proposed detention basin
  • Relation of outflow to water level elevation
    (discharge rating)

9
Computing Storage Volumes
  • Elevation-Area
  • Average end-area

10
Discharge Rating
  • Calculate outflows based on water elevation in
    the detention pond
  • Orifice and weir equations are used

11
Set up table with small time steps
  • Water in Water Out Difference in Storage
  • (water in is changing w/ time)
  • (water out is a function of basin WSE)
  • (basin WSE is a function of basin geometry)

12
Reservoir Routing
  • Avg Inflow (I) Avg Outflow (O) Change in
    storage per some increment of time
  • If IO there is no change in water elevation
  • If IgtO then water surface rises
  • If IltO then water surface decreases

13
Reservoir RoutingOver some time increment (1 to
2)
  • I1 and I2 are inflows at beginning and end of
    time increment
  • O1 and O2 are outflows
  • S2 and S1 are actual storage volumes
  • Delta t is the time from 1 to 2

14
Equation
  • (I1I2)/2 (O1O2)/2 (S2-S1)/t
  • Rearrange to
  • (I1I2) (2S1/t)-O12S2/t O2
  • Left hand side knowns
  • Right-hand side - unknowns

15
Equation
  • O2 and S2 -2 unknowns need 2 equations
  • There is a relationship between outflow and
    storage volume

16
Example 14-5Inflow Hydrograph
17
Example 14-5 Storage Vol Discharge vs WSE
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
Example 14-5Routing Table
22
(No Transcript)
