Title: User-Interface Design


1

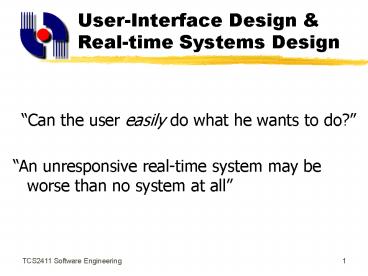

User-Interface Design Real-time Systems Design
  • Can the user easily do what he wants to do?

An unresponsive real-time system may be worse
than no system at all
2
Lecture Objectives
  • To understand the important aspects of user
    interface design
  • To discuss the guidelines for producing better
    user interface
  • To understand the major issues in designing
    real-time systems
  • To illustrate the design considerations for
    real-time systems

3
User Interface
  • The interface is the system for most users
  • Communication between the user and the system
  • When interface is not easy, user may reject
    system
  • Important to have more user-friendly interface to
    improve usability
  • User training may help improve users
    understanding and use of system

4
Types of Interface
  • Natural Language Interface

5
Types of Interface
  • Question and Answer Interface

6
Types of Interface
7
Types of Interface
  • Menus
  • Input/ Output Forms
  • Command-Language Interface

User interface has two main components
Presentation language Action language
8
Human Factors
  • It is important to understand the human factors
  • Better understanding of skills, behaviour and
    limitations can produce better and friendlier
    interface
  • The factors
  • Human Perception
  • Human Skills
  • Type of Task

9
Human Perception
  • Visual - size, shape, color, orientation,
    movement, etc
  • When we look at an item, we are receiving info
    from all parts
  • The brain can efficiently process 7 chunks
    (items) at a time
  • So when designing a screen, these factors should
    be considered

10
Human Skills
  • Understand the target user and the skill level of
    the user
  • Education level, e.g. clerk, manager, engineer or
    programmer
  • Computer skills - novice, average, expert
  • For unskilled users, user interface have to be
    more robust and more help should be available

11
Types of Tasks
  • Communication tasks - information transferred
    from producer to consumer
  • Dialogue tasks - user direct and control
    interaction with the system
  • Cognitive tasks - performed once information is
    obtained associated with system function
  • Control tasks - allow user to control info and
    cognition and order the process through which
    other generic tasks occur

12
General Interaction Guidelines
  • Be consistent
  • Offer meaningful feedback
  • Ask for verification of any non-trivial
    destructive action
  • Permit easy reversal of most actions
  • Reduce the amount of information to memorise
    between actions
  • Seek efficiency in dialog, motion and thought

13
General Interaction Guidelines (Continued)
  • Forgive mistakes
  • Categorize activities by function and organise
    screen geography accordingly
  • Provide help facilities that are context
    sensitive
  • Use simple action verbs or short verb phrases to
    name commands

14
Information Display Guidelines
  • Display only information that is relevant to the
    current context
  • Dont bury the user with data, use a presentation
    format that enables rapid assimilation of
    information
  • Use consistent labels, standard abbreviations,
    and predictable colours
  • Allow user to maintain visual context
  • Produce meaningful error messages

15
Information Display Guidelines (Continued)
  • Use upper and lower case, indentation, and text
    grouping to aid in understanding
  • Use windows to compartmentalize different types
    of information
  • Use analog displays to represent information
    that is more easily assimilated with this form of
    representation
  • Consider available geography of the display
    screen and use it efficiently

16
Data Input Guidelines
  • Minimize the number of input actions required of
    the user
  • Maintain consistency between information display
    and data input
  • Allow user to customize input
  • Interaction should be flexible but also tuned to
    the users preferred mode of input

17
Data Input Guidelines (Continued)
  • Deactivate commands that are inappropriate in the
    context of current actions
  • Let user control the interactive flow
  • Provide help to assist with all input actions
  • Elliminate mickey mouse input

18
Real-time Systems
  • Systems that are integrated with real-world
    devices
  • Generate action in response to external events
  • High speed data acquisition and control under
    severe time and reliability constraints
  • System performance is most important

19
Real-time Systems Interfaces
Sensors
Control device
environmental data
control instructions
Real-time System
20
Examples of Real-time Systems
  • Aircraft avionics
  • Manufacturing process control
  • Industrial instrumentation
  • Intelligent buildings
  • Anti-lock Braking System (ABS)

21
Differences in Real-time System Development
  • Design of real-time system is resource
    constrained
  • Real-time systems are compact, yet complex
  • Real-time systems often work without the presence
    of a human user

22
Demands of Real-time System
  • Information flow that is gathered or produced on
    a time-continuous basis
  • Control information passed throughout the system
    and associated control processing
  • Multiple instances of same transformation,
    sometimes encountered in multitasking situations
  • System states and the mechanism that cause
    transitions between states

23
Time-continuous Data Flow
Monitored temperature
Input continuously
Output continuously
Monitor and adjust temperature level
Corrected value
Temperature set-point
24
Extensions to Data Flow Notation
Data object that is input or output from a
process on continuous basis
quasi-continuous data flow
Control process
Transformer of control or events accepts
control and input and produces control as output
Control item or event takes on a Boolean or
discrete value
control item
Repository of control items that are to be stored
for use by one or more processes
control store
25
Example of Data and Control Flow
Status of each fixture
Movement alarm
Robot initiation control
parts status buffer
Start/stop flag
Bit string
Monitor fixture operator interface
Process activate
Operator settings
Position commands
Process robot commands
Robot movement record
Operator commands
robot command file
26
Dynamic Attributes
  • Interrupt handling and context switching
  • Response time
  • Data transfer rate and throughput
  • Resource allocation and priority handling
  • Task synchronization and intertask communication

27
Interrupt Handling and Context Switching
  • Interrupts - external stimuli
  • System must respond to interrupts
  • Usually multiple interrupts - need to prioritize
    and service most important ones
  • Many real-time operating systems make dynamic
    calculations to monitor servicing of interrupts,
    within given time constraints
  • Context switching - switch among tasks
  • Interrupt latency - time lag before interrupt

28
Interrupt Handling Routine
  • Save state of interrupted program
  • Determine nature of the interrupt
  • Service interrupt
  • Restore state of interrupted program
  • Return to interrupted program

29
Response Time
  • Time within which a system must detect an
    internal or external event and respond with an
    action
  • Usually event detection and response generation
    are simple
  • Determining appropriate response may involve
    complex, time-consuming algorithms
  • Context switching and interrupt latency affects
    response time

30
Data Transfer Rate and Throughput
  • Data Transfer Rate - how fast data move into or
    out of the system
  • Throughput - rate of output compared to rate of
    input (system efficiency)
  • Timing and capacity is usually given by vendors
  • However, overall system performance need to
    consider other factors e.g. device performance,
    buffer size, I/O device, etc.

31
Resource Allocation and Priority Handling
  • Distributed databases are preferred in real-time
    systems because of multitasking
  • Data often processed in parallel
  • Concurrency control required - locking and time
    stamping to ensure data integrity
  • Real-time operating systems also manage resources
    such as memory and processors

32
Task Synchronisation and Communication
  • Real-time multitasking systems must have
    mechanism to synchronize and communicate between
    tasks
  • Queuing semaphores - synchronization and
    signaling items that manage traffic
  • Mailboxes and Messaging systems - alternative to
    sending information between tasks

33
Conclusion
  • Real-time system emphasized on performance and
    reliability
  • Fault tolerance and system restart is most
    critical
  • Often redundancy and backup is built into system
    design
  • Design requires additional consideration for
    size, efficiency and reliability

34
References
  • Software Engineering A Practitioners Approach
    5th Ed. by Roger S. Pressman, Mc-Graw-Hill, 2001
  • Software Engineering by Ian Sommerville,
    Addison-Wesley, 2001
