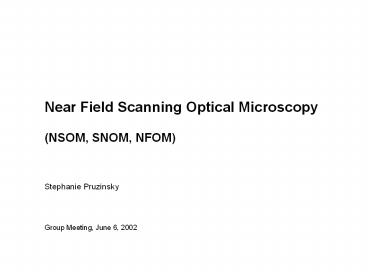

Near Field Scanning Optical Microscopy

1
Near Field Scanning Optical Microscopy (NSOM,
SNOM, NFOM) Stephanie Pruzinsky Group
Meeting, June 6, 2002
2
Near-Field v. Far-Field
Near-Field (Evanescent)
Light with spatial frequencies are present in the
tip but decay within one wavelength dmin 1
20 nm has been reported dmin 50 100nm is more
common
Far-Field (Diffraction Limited)
dmin ?/2 - ?
http//www.nrel.gov/sss/nsom.html
3
Typical NSOM Setup
4
WITEC NSOM Setup
http//www.witec.de/snom.html
5
NSOM Probe Techniques
Aperture
Apertureless
STOM
6
NSOM Aperture Probes
Chemical Etching
Fiber-Pulling
Evanescent Decay
Aluminum Deposition
300 nm
300 nm
7
WITEC Microfabricated NSOM Probes
wafer with 228 tips
Si cantilever
hollow Al pyramid
tip 100 nm
http//www.witec.de/snom.html
8
NSOM Applications

• Fluorescence imaging
• tagged in situ biological samples
• phase-separated or patterned films and
  monolayers
• single dye molecules
• Microspectroscopy
• quantum dots
• nanoparticles
• plasmonic crystals
• photonic crystals
• Laser ablation
• localized MALDI mass spectrometry
• Photolithography, localized photochemistry

9
NSOM Fluorescence Imaging of Single Dye Molecules
0
2.1
13.5
10
NSOM Spectroscopy of Quantum Dots
11
NSOM of 2D Photonic Crystals
100 nm
