Title: Computing%20the%20Fundamental%20matrix

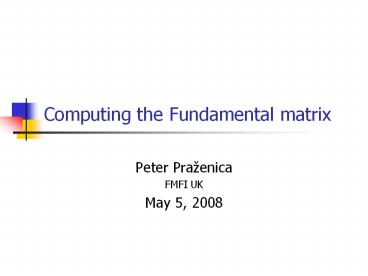

1
Computing the Fundamental matrix
  • Peter Praženica
  • FMFI UK
  • May 5, 2008

2
Contents
  • Fundamental matrix
  • Linear methods
  • Basic algorithm
  • Normalized
  • Nonlinear methods
  • The distance to epipolar lines
  • The Gradient criterion and an interpretation as a
    distance
  • The optimal (reprojected) method
  • M-Estimator with the Tukey function
  • Monte Carlo - Least-median-of-squares method
  • Example of estimation with comparison

3
Fundamental matrix
  • The basic description of the projective geometry
    of two views
  • The computation of the Fundamental matrix is of
    utmost theoretical and practical importance
    (self-calibration method, recovering the 3D
    projective geometry)
  • Stage for this chapter
  • Two views of a scene taken by two (perspective
    projective) cameras
  • n (respectively n) points of interest have been
    detected in image 1 (respectively in image 2)
  • Goal to establish a set of correspondences and
    to compute the estimate of the Fundamental matrix
    F that best explains those correspondences

4
Linear methods
The key idea Each point correspondence (m, m')
yields one equation , therefore
with a sufficient number of point correspondences
in general position we can determine F. No
knowledge about the cameras or scene structure is
necessary. Principle Let and
be two corresponding points.
If the Fundamental matrix is
, then the epipolar constraint
can be rearranged as Where Equation 6.1
is linear and homogeneous in the 9 unknown
coefficients of matrix F. Thus if we are given 8
matches, then we will be able, in general, to
determine a unique solution for F, defined up to
a scale factor. This approach is known as the
eight-point algorithm.
(6.1)
5
LM Least-squares solution
In this case, we have more linear equations than
unknowns, and, in the presence of noise, we look
for the minimum of the error criterion which
is equivalent to finding the minimum of


(6.3) Where 2 solutions 1) closed-form
solution via the linear equations 2) solution of
subject to
6
LM Least-squares solution
Closed-form solution via the linear equations
One of the coefficients of F is set to 1,
yielding a parameterization of F by eight values,
which are the ratios of the eight other
coefficients to the normalizing one. Let us
assume for the sake of discussion that the
normalizing coefficient is F33. We can rewrite
(6.3) as where is formed with the first 8
columns of ,
and b is the ninth column of .
The solution is known to be if the matrix
is invertible. The second method solves the
classical problem with The solution is the
eigenvector associated with the smallest
eigenvalue of .
7
Linear methods Discussion
  • The advantage of the eight-point algorithm is
    that it leads to a noniterative
  • computation method which is easy to implement
    using any linear algebra
  • numerical package however, we have found that it
    is quite sensitive to noise, even with numerous
    data points.
  • The constraint det(F) 0 is not satisfied
  • The quantity that is minimized in (6.2) does not
    have a good geometric interpretation, one could
    say that one might be trying to minimize an
    irrelevant quantity
  • In all of the linear estimation techniques that
    will be described in this section, we
  • deal with projective coordinates of the pixels.
    In a typical image of dimensions
  • 512 x 512, a typical image point will have
    projective coordinates whose orders of
  • magnitude are given componentwise by the triple
    (250,250,1). The fact that the
  • first two coordinates are more than one order of
    magnitude larger than the third
  • one has the effect of causing poor numerical
    conditioning. Solution normalizing the points in
    the two images so that their three projective
    coordinates are of roughly the same order.

8
LM Enforcing the rank constraint
Two-step approximate linear determination of
parameters The idea is to note that in Equation
5.10 of Proposition 5.12, if the epipoles are
known, then the Fundamental matrix is a linear
function of the coefficients (a, b, c, d) of the
epipolar homography. 1. We determine the epipole
e by solving the constrained minimization
problem
subject to , which yields e as
the unit norm eigenvector of matrix
corresponding to the smallest eigenvalue 2. Once
the epipoles are known, we can use Equation 5.10
or, if the epipoles are not at infinity, Equation
5.14, and write the expression as a
linear expression of the coefficients of the
epipolar homography where
(respectively ) are the affine
coordinates of (respectively ) This
equation can be used to solve for the
coefficients of the epipolar homography in a
least-squares formulation, thereby completing the
determination of the parameters of F.
9
LM Enforcing the rank constraint
Using the closest rank 2 matrix The matrix F
found by the eight-point algorithm is replaced by
the singular matrix that minimizes the Frobenius
norm llF - F'll. This step can be done using a
singular value decomposition. If
, with , then
. Solving a cubic
equation One selects two components of F, say,
without loss of generality, F32 and F33 and
rewrites (6.3) as The vector h is made of the
first 7 components of the vector f, the matrix
is made of the first 7 columns of matrix ,
and the vectors W8 and W9 are the eighth and
ninth column vectors of that matrix,
respectively. The solution h is We have a
linear family of solutions parametrized by F32
and F33. In that family of solutions, there are
some that satisfy the condition det(F) 0. They
are obtained by expressing the determinant of the
solutions as a function of F32 and F33. One
obtains a homogeneous polynomial of degree 3
which must be zero. Solving for one of the two
ratios F32 F33 or F33 F32 one obtains at
least one real solution for the ratio and
therefore at least one solution for the
Fundamental matrix.
10
Nonlinear methods
The distance to epipolar lines The idea is to
use a non-quadratic error function and to
minimize However, two images should play the
symmetric roles It can be written using the
fact that . It can be observed that this
criterion does not depend on the scale factor
used to compute F. The Gradient criterion and
an interpretation as a distance Uses criterion
11
Nonlinear methods
The optimal method The nonlinear method based
on the minimization of distances between observed
points and reprojected ones where f is a
vector of parameters for F, Mi are the 3D
coordinates of the points in space, and P(f),
P(f) are the perspective projection matrices in
the first and second images, given the
Fundamental matrix F(f). That is, we estimate
not only F, but also the most likely true
positions . Because of the epipolar
constraint, there are 4 - 1 degrees of freedom
for each point correspondence, so the total
number of parameters is 3p 7. The estimation
of the Fundamental matrix parameters f can be
decoupled from the estimation of the parameters
Mi Since the optimal parameters can be
determined from the parameters f, we have to
minimize only over f. At each iteration, we have
to perform the projective reconstruction of p
points. The problem can be rewritten as
12
M-Estimator
Let be the residual of the i-th datum. For
example, in the case of the linear methods
, in the case of the nonlinear
methods The standard least-squares method tries
to minimize , which is unstable if there
are outliers present in the data. The
M-estimators try to reduce the effect of outliers
by replacing the squared residuals by another
function of the residuals, yielding the error
function where p is a
symmetric, positive function with a unique
minimum at zero and is chosen to be growing
slower than the square function. The M-estimator
of f based on the function is a vector f
which is a solution of the system of q
equations



(6.16) where the derivative
is called the influence function. If we now
define define a weight function then Equation
6.16 becomes
13
M-Estimator with the Tukey function
otherwise
where is some estimated standard deviation
of errors and c 4.6851 is the tuning constant.
The corresponding weight function is
otherwise
14
Monte Carlo - Least-median-of-squares method
It estimates the parameters by solving the
nonlinear minimization problem Given p point
correspondences ,we
proceed through the following steps 1) A Monte
Carlo type technique is used to draw m random
subsamples of q 7 different point
correspondences 2) For each subsample, indexed
by J, we use the technique described in
Proposition 5.14 to compute the Fundamental
matrix FJ. We may have at most 3 solutions 3)
Compute the median, denoted by MJ, of the squared
residuals 4) Retain the estimate FJ for which
MJ is minimal among all m MJs
15
Example of estimation with comparison
  • Pair of calibrated stereo images
  • There are 241 point matches which are
    established automatically
  • Outliers have been discarded
  • The calibrated parameters of the cameras are not
    used, but the Fundamental
  • matrix computed from these parameters serves as a
    ground truth

Method e e e e RMS CPU
Calibrated 5138.18 -8875.85 1642.02 -2528.91 0.99
Linear 5.85 304.018 124.039 256.219 230.306 3.40 0.13s
Normalization 7.20 -3920.6 7678.71 8489.07 -15393.5 0.89 0.15s
Nonlinear 0.92 8135.03 -14048.3 1896.19 -2917.11 0.87 0.38s
Gradient 0.92 8166.05 -14104.1 1897.80 -2920.12 0.87 0.40s
M-estimator 0.12 4528.94 -7516.3 1581.19 -2313.72 0.87 1.05s
Reprojected 0.92 8165.05 -14102.3 1897.74 -2920.01 0.87 19.1s
LMedS 0.13 3919.12 6413.1 1500.21 -2159.65 0.75 2.40s
( each F is normalized by its Frobenius norm)
e, e positions of 2 epipoles RMS squared
distances between points and their epipolar
lines CPU approximate CPU time in seconds when
the program is run on a Sparc 20 workstation
16
Better comparison method
  1. Choose randomly a point m in the first image
  2. Draw epipolar line of m in the second image using
    F1
  3. If the epipolar line does not intersect the
    second image, then go to Step 1
  4. Choose randomly a point m on the epipolar line.
    Note that m and m correspond to each other
    exactly with respect to F1
  5. Draw the epipolar line of m in the second image
    using F2 , and compute the distance, denoted by
    d1 , between point m and line F2m
  6. Draw the epipolar line of m in the first image
    using F2 , and compute the distance, denoted by
    d1 , between point m and line F2Tm
  7. Conduct the same procedure from Step 2 through
    Step 6, but reversing the roles of F1 and F2, and
    compute d2 and d2
  8. Repeat Step 1 through Step 7 N times
  9. Compute the average distance of ds, which is the
    measure of difference between the two Fundamental
    matrices

17
New comparason
  • Linear method is very bad
  • The linear method with prior data normalization
    gives quite a reasonable result
  • The nonlinear method based on point-line
    distances and that based on gradient-weighted
    epipolar errors give very similar result to those
    obtained based on minimization of distances
    between observed points and reprojected ones. The
    latter should be avoided because it is too time
    consuming.
  • M-Estimators or the LMedS method give still
    better results because they try to limit or
    eliminate the effect of poorly localized points.
    The epipolar geometry estimated by LMedS is
    closer to the one computed through stereo
    calibration.

Linear Normalized Nonlinear Gradient M-Estimator Reprojected LMeDS
Calibrated 116.4 5.97 2.66 2.66 2.27 2.66 1.33
Linear 117.29 115.97 116.40 115.51 116.25 115.91
Normalized 4.13 4.12 5.27 4.11 5.89
Nonlinear 0.01 1.19 0.01 1.86
Gradient 1.19 0.00 1.86
M-Estimator 1.20 1.03
Reprojected 1.88
Write a Comment
User Comments (0)
About PowerShow.com
