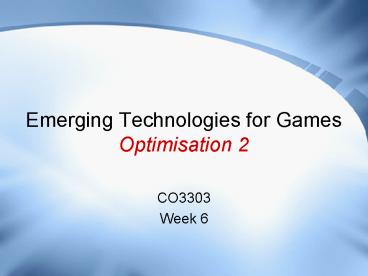

Emerging Technologies for GamesOptimisation 2

• CO3303
• Week 6

2
Todays Lecture

• Memory Optimisation
• Cache Recap
• Cache Optimisation
• Shader Optimisation

3
Memory Optimisation

• Last week we looked primarily at optimising for
  speed
• Often need to minimise the memory used by an
  application too
• These objectives frequently conflict, e.g.
• Use a look-up table of pre-calculated values to
  speed up a calculation uses more memory
• Compress some data to minimise memory program
  needs to decompress, slowing it down
• Memory optimisations are usually algorithmic

4
Memory Optimisations

• Compress data
• Standard algorithms RLE, LZW (zip) etc.
• Store a minimum of data
• Dont store data that can be calculated from
  other data
• E.g. Store X Y axis of matrix calculate Z
  axis (like targeting)
• Avoid sparse data structures arrays/lists etc.
  with many empty slots
• Perhaps use RLE style compression
• Store data on hard-drive/DVD rather than memory
• Implement streaming ability to read data from
  external storage whilst running other processes
• Note that hard-drives etc. have a cache also

5
Cache Recap

• A cache stores data efficiently that would
  otherwise be expensive to fetch/calculate
• A memory cache is a small local memory store with
  very fast access
• Duplicates data held in the main memory, but with
  much faster read/write speeds
• Anywhere 2-10 times faster
• There may be several caches for a CPU
• A small fast cache (L1), larger less fast one
  (L2) etc.
• The GPU also has memory caches
• Vertex cache (fast access to vertex data)
• Texture cache (fast access to pixel data)

6
Cache Use

• When data is read
• If in cache, fetched quickly from there - cache
  hit
• otherwise fetched from slower memory/cache -
  cache miss

• In any case, any data read is placed in the cache
• The entire row containing the data is stored
• Typically a power of 2, e.g. a 128 byte block
• This means subsequent reads of the same, or
  nearby data will be a cache hit
• Rewards access to closely clustered data

7
Efficient Cache Use

• To use cache efficiently
• Try to read data near data we recently accessed
• Accessing data sequentially is ideal
• Random access to data is cache-inefficient
• Particularly if random access to a large area,
  makes cache redundant major efficiency loss
• Arrays and vectors can be very cache friendly
• If we mainly sequentially access them
• Linked lists can be problematic
• If the nodes become distributed around memory
• N.B. Writing to the cache follows a similar
  scheme
• Although actual writes to main memory can be
  delayed

8
GPU Caches

• Have seen the vertex cache on modern GPUs
• We should attempt to order the triangles in our
  geometry to revisit recently used vertices

• Also have a texture cache
• Recently used blocks of textures can be accessed
  more quickly
• Suggests we try to render any geometry with
  similar textures together
• Avoid using large textures on small polygons
• Pixels will be widely spaced in the source
  texture random access

9
Cache Optimisation

• Cache performance affects all applications
• Failure to consider the cache coherency of your
  app can lead to very poor performance
• Without anything obvious being wrong
• Note that cache issues often stop promising
  optimisations from performing effectively
• Particularly Look-up table of pre-calculated
  values...
• random access into a large table may be slower
  than actually performing the calculation
• We shouldnt cache optimise everything, but
  should be aware of the issues

10
Shader Optimisations

• Shaders almost always need to be optimised
• Very often the bottleneck on current games
• Particularly the pixel shader for more elaborate
  effects
• The HLSL shader compiler is good and catches many
  optimisations
• But we really need to squeeze out every drop of
  speed if we want to match the competition
• Shader optimisation is tricky
• Methods are not widely documented (trade secrets)
• Nvidia / ATI websites and tools are the best
  source of ideas

11
Basic Shader Optimisations

• Ensure optimisation is enabled on the shader
  compiler (it is by default)
• Do some performance analysis
• Put a timer on screen
• Use time per frame, not FPS. FPS can be
  misleading
• NVShaderPerf
• Expect your pixel shader to need optimisation if
  you use fancy materials / lighting
• Or the vertex shader if you perform complex
  vertex blending / deformation etc
• But more usually the pixel shader

12
Shader Optimisations

• Use optimisations from last week, especially
• Take constant calculations out of loops
• In fact avoiding loops is usually better
• Especially those with a variable count (i.e. 1 to
  n)
• Early return from functions
• Break calculations into small steps
• Use simpler instructions
• E.g. Preventing diffuse value becoming negative
• float DiffuseLevel max(0.0f, dot(N, L))
• The function saturate is faster (clamp to 0-gt1
  range)
• float DiffuseLevel saturate(dot(N, L))

13
Shader Optimisations

• Calculate constant values on the CPU
• Move code out of shaders.
• E.g. Wiggling texture as used last year
• float wiggle // Set wiggle from main CPU code
• output.UV cos(wiggle) // Wiggle texture UVs
• The term cos(wiggle) is constant for each
  primitive
• Instead calculate cos in the main code and pass
  in
• float cosWiggle // cos calculated in CPU code
• output.UV cosWiggle
• CPU only executes the cos once, a pixel shader
  will may calculate it millions of times (once for
  each pixel)

14
Shader Optimisations

• Values output from a vertex shader are linearly
  interpolated for the pixel shader
• E.g. A pixel halfway between two vertices will
  get values (world position, UVs, normal etc.)
  exactly halfway the vertex values
• OK for positions / scalars, but vectors suffer
  similar problems to rotational lerp
• Need to normalise vectors in the pixel shader -
  nlerp

15
Shader Optimisations

• We can use this knowledge for optimisation
• Interpolate values from vertex shader
• Remove code from pixel shader
• float3 LightVector LightPos - i.WorldPosition
• Add a parameter from vertex to pixel shader
• float3 LightVector TEXCOORD2
• Move code to vertex shader
• o.LightVector LightPos - i.WorldPosition
• Normalise in pixel shader if using vectors
• Will probably need to change setup code too
• Powerful method to remove excessive calculation
• But problems with large rotational changes (again)

16
Shader Optimisations

• Use textures to store calculations
• Convert
• spec saturate(dot(N,L))
• Kspow((dot(N,L)gt0) ? saturate(dot(N,H)) 0),n)
• Into
• spec tex2D(dot(N,L), dot(N,H))
• And load a texture that encodes the first
  calculation
• Tricky to prepare
• Very powerful, especially for complex shaders
