Title: GEO4840 TECTONICSs06


1

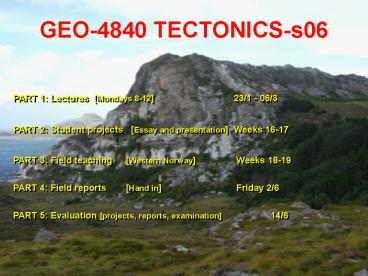

GEO-4840 TECTONICS-s06
PART 1 Lectures Mondays 8-12 23/1 - 06/3
PART 2 Student projects Essay and
presentation Weeks 16-17
PART 3 Field teaching Western Norway Weeks
18-19
PART 4 Field reports Hand in Friday
2/6
PART 5 Evaluation projects, reports,
examination 14/6
2
GEO-4840 TECTONICS-s06
  • LECTURES
  • Introduction and course content
  • Tectonic processes and anatomy of mountain belts.
  • Main themes
  • 1) Material balance and properties
  • Uplift and subsidence.
  • Topography, crustal and lithospheric
    thicknesses/structure

2) Wilson cycle tectonics, Ocean-continent
transition, Oceanic complexes, exotic
terranes. Ophiolite obduction, (Oman,
Caledonian and Appalachian). Andean margins,
Incipient continental collision, Australia -
Banda Arc collision.  Continental collision
3
LECTURES (continued) 3) Examples of
Continental collision zones The
Himalayan-Tibetan region The Caledonides,
with emphasis on Scandinavia
Mediterranean  4) From collision to extension,
Dynamics of orogenic wedges, Exhumation,
Renewed rifting.
4
Reading list
5
Reading list forts
6
  • Student projects (written with oral
    presentation)
  • All projects are related to the
    field-course/work/excursions.
  • The student seminar day will be Mon 24. and Wed
    26. April
  • Extensional detachments in Norway ()
  • Main tectonic units in the Scandinavian
    Caledonides ()
  • Main tectonic units in east Greenland Caledonides
    ()
  • Ophiolites in the Scandinavian Caledonides ()
  • 5) Lower Palaeozoic rocks in the foreland
    Scandinavia ()
  • PT-time history of eclogites in Western Gneiss
    Complex()
  • Melanges and Olistostromes ()
  • Ultramafic rocks in the Western Gneiss Complex ()
  • The mineralogy of Ultra-high-pressure rocks ()
  • PT-time history of eclogites in the Caledonian
    nappes

7
MOUNTAIN CHAINS ARE THE MOST IMPRESSIVE VISIBLE
TOPOGRAPHIC FEATURES ON THE EARTHS SURFACE
8
The anatomy of mountain belts The product of
complex interactions of thrusting and
extension accompanied by pro- and retrograde
metamorphic reactions and erosional denudation
9
  • MOUNTAIN BELTS, OLD (at least from Mid
    Proterozoic) and YOUNG,
  • HAVE VERY SIMILAR INTERNAL STRUCTURES
  • FORELAND
  • CONTINENTAL BASEMENT-CORED NAPPES
  • SUTURE WITH OCEANIC AND EXOTIC TERRANES
  • HINTERLAND / PLATEAU REGIONS
  • FORELAND

10
Various stages of orogenic maturity along strike
Andean margins
Foreland flexure
Suture(s)
Common internal structure of orogenic belts
(in space and time)
Hinterland orogenic plateau
Foreland basin
11
Schematic view of stages in a classical Wilson
cycle
5) Remnant stage Continental collision, suture
zones, deform- ation and metamorphism, mountain
building Extensional collapse, faulting and
collapse basins 4) Terminal stage Near closure of
ocean, mature arcs and back-arc, accreationary
wedges, HP-LT metamorphic complexes (Mediterranean
See area) 3) Vaning stage Intra-oceanic
subduction and island arcs transition to Andean
margins. (SE Asia and Western Passific) 2)
Mature stage Passive margins with
large shelf-areas (Atlantic Ocean) 1) Embryonic
to Young stage. Rifts to small ocean basin with
sea-floor spreading. (East African rift and Red
Sea)
12
(No Transcript)
13
Exact estimates of material present in the orogen
Le Pichon et al., 1993
14
ESTIMATES OF MISSING CONTINENTAL
MATERIAL Topography and erosional levels are
taken into consideration Dewey et al. (1986) ca
1,2 x 104 km2 Le Pichon et al (1993) Linear
shortening between 1850 - 2600 km Surface loss
during the past 45 myr from 57 to 62 x 105
km2 Rate of surface loss 1,1 x 10 km2 x
10-6yr Arial deficit in sections 33 - 52 x 105
km2 (max) 18 - 30 x 105 km2
(min) (Depends on estimates of original surface
elevation) WHAT IS THE EXPLANATIONS FOR THE
DEFICIT?
erosion
India
Tarim
Present continental crust
15
  • LATERAL TRANSPORT OF MATERIAL

16
The lateral extrusion model For SE Asia
Tapponnier et al., 1982, 1986
17
Fournier Jolivet et al.
18
2) VERTICAL TRANSPORT OF MATERIAL (SUBDUCTION /
EDUCTION)
