PINTOS: An Execution Phase Based Optimization and Simulation Tool

1

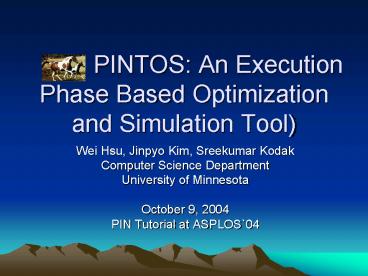

PINTOS An Execution Phase Based
Optimization and Simulation Tool)

• Wei Hsu, Jinpyo Kim, Sreekumar Kodak
• Computer Science Department
• University of Minnesota
• October 9, 2004
• PIN Tutorial at ASPLOS04

2
Outline

• What is Pintos?
• What can Pintos do?
• Phase detection for optimization and simulation
• Optimization (instruction prefetching)
• Fast Simulation
• Summary

3
What is Pintos?

• PINTOS is a PIN based Tool for Optimization and
  Simulation
• A research framework supports adaptive object
  code optimization
• Supports deep analysis of run-time program
  behavior for object code optimization (e.g.
  instruction, data prefetching)
• Integrates HPM performance monitoring (Pfmon)
  with dynamic instrumentation (PIN).
• Also supports fast performance simulation
• Identifies program phases (with coarse and fine
  granularity)
• Generates simulation strings that capture
  representative program behaviors

4
Pintos Framework
PIN-based Analysis
Filtered Opt Targets
pfmon
profile analysis
Optimization
control flow
program
profile
Opt targets
Cache Sim
PIN-based Phase Detection
pfmon
profile analysis
Simulation Strings
Simulation
Phase Info
program
profile
phase targets
Simulation String Gen
5
Our Background

• ADORE dynamic optimization system

Code Cache
Phase Detection
Main Thread
Dynamic Optimization Thread
Trace Selection
Optimization
Deployment
Kernel / Pfmon
Hardware Performance Monitoring Unit
6
ADORE Performance Speedup of ORC2.1 O2 Compiled
SPEC2000 Benchmarks
7
ADORE Performance at Different Sampling Rates
8
Future Enhancements to ADORE

• I-cache prefetching
• Help thread based optimizations
• Value prediction based optimizations
• Dynamically undo aggressive optimizations (e.g.
  control/data speculations, indirect array
  prefetches)
• Software Branch Predictions

9
What can Pintos do for us?

• Pintos uses pfmon to identify high-level
  performance problems (e.g. I-cache miss) and
  locate target code (phases) for optimization
• Pintos then uses PIN-based analysis tool to focus
  on target code (phases) to conduct deep analysis
• Pintos provides a framework to support deep
  analysis of program behavior so that we may
  experience with new object code optimization
  techniques and feed them to ADORE.
• Simulation strings can be generated by Pintos and
  used for more efficient micro-architecture
  simulations

10
Phase based Optimization and Simulation

• Phase is a sequence of code that consistently
  exhibits certain performance behaviors in Pintos,
  for example
• Gzip shows consistent and repeated data cache
  miss patterns
• Crafty exhibits consistent I-cache misses
• A repeating phase can serve as an unit for
  dynamic and adaptive optimization, or for fast
  performance simulations.
• Optimization unit can be basic block, trace,
  procedure and region (loops and loop nests
  including complex control transfers)
• Simulation unit can be an extended code sequence

11
Phase Detection

• One phase detection method doesnt fit all needs.

• Dynamic data cache prefetching requires coarse
  grain phases (e.g. loops) while dynamic I-cache
  prefetching requires fine-grain phases (e.g.
  frequent calling paths).
• A phase tuple is used to determine the current
  point of execution in PIN instrumentation
• Phase tuple (phase ID , ip addr, of retired
  insts)

12
Pintos for Optimization (I-Prefetch)

• Many applications still suffer from significant
  I-cache misses (e.g. data base apps, some SPEC
  CPU2000 benchmarks, etc)

• Complex control flows
• cause high miss rate from
• streaming prefetches

• Predictable call sequence
• results in relatively low miss
• rate

13
I-Cache Miss Analysis (pfmon)

• Miss address based info
• Crafty (2125/4760000)
• 25 30 (1.41) Each top miss PC was
  caused by 10-40
• 50 91 (4.28) different paths.
• 75 228 (10.73)
• 90 442 (20.80)
• Path based info
• Crafty (8016/4760000) Each top path leading to
  I-cache
• 25 28 (0.34) miss has 1-2 possible
  prefetch targets
• 50 126 (1.57)
• 75 436 (5.43) Data show we can reduce
  points of
• 90 1118 (13.94) interest for inst
  prefetching

14
Exploring prospective points of instruction
prefetching (PIN)

• Pintos generates prospective paths leading to
  frequent I-cache misses by analyzing pfmon
  profile
• PIN instrumentation routine constructs control
  flow graph and simulates instruction cache along
  execution
• It inserts I-cache prefetching instructions for
  the prospective paths based on control flow edge
  weight and estimated cache replacement

Paths frequently causing I-cache misses
B1
B2
B6
B3
B4
B5
B7
Instruction Cache Simulator
B8
Control flow graph
15
Exploring prospective points of instruction
prefetching (PIN)

• Key observation
• Most I-cache misses happen in the following cache
  lines after the entry or the return of a function
  call.
• L1I cache misses are mostly capacity misses. We
  need to estimate how prefetch affect incoming
  instruction stream.
• Key idea
• Run ahead by exploring CFG and I-cache simulator
• Evaluate prospective paths given by Pintos

Paths frequently causing I-cache misses
B1
B2
B6
B3
B4
B5
B7
Instruction Cache Simulator
B8
Control flow graph
16
Pintos for Fast Simulation

• Execution driven micro-architectral simulation is
  commonly used for evaluating new
  micro-architecture features and respective code
  optimizations.
• Simulation time is often too long for a complete
  simulation. New methods for fast simulations such
  as Simpoint and Smarts have been proposed.
• PASS (Phase Aware Stratified Sampling) is a
  different way to generate representative and
  customized traces for targeted simulations

17
Fast Simulation Techniques

• Truncated Execution
• Run Z, FastFoward-W-R
• Sampling
• SMARTS
• SIMPOINT
• Stratified Sampling
• Reduced Input Sets
• MinneSPEC

18
Problems of Previous Works

• Truncated Execution gives very inaccurate results
• Reduced Input sets do not always behave the same
  as reference inputs so the performance estimation
  based on reduced input sets may be misleading.

19
Mechanism of SMARTS

• W Warm up time (Fixed to 2000 instructions for
  SPEC 2000)
• U Detailed Simulation (Fixed to 1000
  instructions for SPEC2000)
• (K-1)U
• Function Simulation with Functional Warming
  (The tool gives the value of K for which the IPC
  will be within 3 of the actual value with
  99.7 confidence interval)

20
Issues in Previous Work

• SMARTS
• Value of U and W fixed for SPEC 2000 suite. Have
  to identify them for every new benchmark suite
  (Very time consuming)
• Over sampling in steady phases. Does not
  effectively exploit the existence of phases in
  programs
• SIMPOINT
• The user chooses the length of simulation point
  (100 million, 10 million, 1 million)
• Provides Simulation Points based on Clustering of
  Basic Block profiles which is generated using
  sim-fast or ATOM

21
Phase Aware Stratified Sampling (PASS)

• Deploy a hierarchical method to detect coarse and
  fine grain program phases
• (1) Tracking calling stack (stable bottom
  coarse grain phase) ? inter-procedure
• (2) Detecting loops within the procedure ?
  intra-procedure
• (3)Tracking data access pattern such as stride
  within loops (fine grain phases)
• Select stratified samples from each phase until
  getting high statistical confidence

22
IPC vs SimPoint (cc1-166, 1 million insts)
23
IPC vs Phase Classification on PASS(cc1-166, 1
million insts)
24
IPC vs SimPoint (cc1-166, 250 million insts)
25
IPC vs SimPoint (gzip-source, 1 million insts)
26
IPC vs Phase Classification on PASS(gzip-source,
1 million insts)
27
IPC vs SimPoint (gzip-source, 250 million insts)
28
IPC vs SimPoint (mcf-ref, 1 million insts)
29
IPC vs Phase Classification on PASS (mcf-ref)
30
IPC vs SimPoint (mcf-ref, 250 million insts)
31
IPC vs Phase Classification on PASS(gap-ref, 1
million insts)
32
IPC vs SimPoint (gap-ref, 250 million insts)
33
Summary

• We show the combination of HPM sampling (Pfmon)
  and dynamic instrumentation (Pin) in our research
  framework (Pintos) for adaptive object code
  optimization and micro-architectural simulation.
• PASS (Phase Aware Stratified Sampling) may lead
  to a more efficient way in simulating the
  interaction between compiler optimizations and
  new micro-architectural features.
