Additional NN Models

1

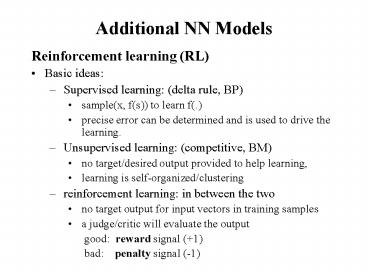

Additional NN Models

• Reinforcement learning (RL)
• Basic ideas
• Supervised learning (delta rule, BP)
• sample(x, f(s)) to learn f(.)
• precise error can be determined and is used to
  drive the learning.
• Unsupervised learning (competitive, BM)
• no target/desired output provided to help
  learning,
• learning is self-organized/clustering
• reinforcement learning in between the two
• no target output for input vectors in training
  samples
• a judge/critic will evaluate the output
• good reward signal (1)
• bad penalty signal (-1)

2

• RL exists in many places
• Originated from psychology( training animal)
• Machine learning community, different theories
  and algorithms
• major difficulty credit/blame distribution
• chess playing W/L (multi-step)
• soccer playing W/L(multi-player)
• In many applications, it is much easier to
  determine good/bad, right/wrong,
  acceptable/unacceptable than to provide precise
  correct answer/error.
• It is up to the learning process to improve the
  systems performance based on the critics signal.

3

• Principle of RL
• Let r 1 reword (good output)
• r -1 penalty (bad output)
• If r 1, the system is encouraged to continue
  what it is doing
• If r -1, the system is encouraged not to do
  what it is doing.
• Need to search for better output
• because r -1 does not indicate what the good
  output should be.
• common method is random search

4

• ARP the associative reword-and-penalty algorithm
  for NN (Barton and Anandan, 1985)
• Architecture

input x(k) output y(k) stochastic units z(k)
for random search
5

• Random search by stochastic units zi
• or let zi obey a continuous probability
  distribution
• function.
• or let is
  a random noise, obeys
• certain distribution.
• Key z is not a deterministic function of x,
  this gives z a chance to be a good
  output.
• Prepare desired output (temporary)

6

• Compute the errors at z layer
• where E(z(k)) is the expected value of z(k)
  because z is a random variable
• How to compute E(z(k))
• take average of z over a period of time
• compute from the distribution, if possible
• if logistic sigmoid function is used,
• Training BP or other method to minimize the
  error

7

• (II) Probabilistic Neural Networks
• 1. Purpose classify a given input pattern x
  into one of the
• pre-defined classes by Bayesian decision
  rule.
• Suppose there are k predefined classes s1,
  sk
• P(si) prior probability of class si
• P(xsi) conditional probability of class si
• P(x) probability of x
• P(six) posterior probability of si, given x
• example
• Ss1Us2Us3.Usk, the set of all patients
• si the set of all patients having disease I
• x a description of a patient(manifestation)

8

• P(xsi) prob. One with disease I will have
• description x
• P(six) prob. one with description x will have
• disease i.
• by Bayes theorem

9

• 2. PNN architecture feed forward with 2 hidden
  layers
• learning is not used to minimize error but to
  obtain P(xsi)
• 3. Learning
• assumption P(si) are known, P(xsi) obey
  Gaussian distr.
• estimate

10

• 4.Comments
• (1) Bayesian classification by
• (2) fast classification( especially if
  implemented in parallel
• machine).
• (3) fast learning
• (4) trade nodes for time( not good with large
  training
• smaples/clusters).

11

• (III)Recurrent BP
• Recurrent networks network with feedback links
• - state(output) of the network evolves along the
  time.
• - may or may not have hidden nodes.
• - may or may not stabilize when t?
• - how to learn w so that an initial state(input)
  will lead to
• a stable state with the desired output.
• 2. Unfolding
• for any recurrent network with finite evolution
  time, there is an equivalent feedforward network.
• problems
• too many repetitions
• too many layers when the network need a long
  time to

12

• reach stable state.
• standard BP needs to be relized to hard
  duplicate weights.
• 3. Recurrent BP (1987)
• system
• assume at least one fixed point exists for the
  system with the given initial state
• when a fixed point is reduced
• can be obtained.
• error

13

• take the gradient descent approach to minimize E
  by update W
• direct derivation will have

14

• Computing is very time consuming.
• Pineda and Almeida/s proposal
• can be computed by another recurrent net
• with identical structure of the original RN
• direction of each are is reversed( transposed
  network)
• in the original network weight for node j to i
  Wij
• in the transposed network, weight for node j to
  i

15
(No Transcript)
16

• Weight-update procedure for RBP
• with a given input and its desired output
• Relax the original network to a fixed point
• Compute error
• Relax the transposed network to a fixed point
• Update the weight of the original network

17

• The complete learning algorithm
• incremental/sequential
• W is updated by the preseting of each learning
  pair using the weight-update procedure.
• to ensure the dearned network is stable,
  learning rate must be small(much smaller than the
  rate for standard BP learning)
• time consuming two relaxation processes are
  involved for each step of weight update
• better performance than BP in some applications

18

• III network of radial basis functions
• Motivations
• better function approximation
• BP network( hidden units are sigmoid)
• training time is very long
• generalization(with non-training input) not
  always
• good
• Counter Propagation(hidden units are WTA)
• poor approximation, especially with
  interpolation
• any input is forced to be classified into one
  class and intern produces class/ output as its
  function value.

19

• 2. Architecture
• input?hidden?output(similar to BP and CPN)
• operation/learning similar to CPN
• input?hidden competitive learning for class
  character
• hidden?output delta rule(LMS error) for
  mapping
• difference hidden units obey Radial Basis
  function
• 3. Hidden unit Gaussian function
• suppose unit I represent a class of inputs with
  centroid

20

• Radial basis function
• input vectors with equal distance to Ci will
  have the same output.
• Each hidden unit I has a receptive fied with Ci
  as its center
• if xCi , unit I has the largest output
• if x!Ci, unit I has the smallest output
• the size of the receptive field is determined by
• During computation, hidden units are not WTA( no
  lateral inhibition with an input x, usually more
  than one hidden units can have non-zero output.
  These outputs can be combined at output layer to
  produce better approximation.

21

• 4. Learning
• input?hidden
• Ci competitive, based on neti
• ad hoc(performance not sensitive to
• hidden?output
• delta rule(LMS)

22

• 5. Comments
• compare with BP
• approximate any ..L2 function(same as BP)
• may have better
• usually requires many more training samples and

• many more hidden units
• only one hidden layer is needed.
• training is faster
• Compare with CPN
• much better function approximation
• theoretical analysis is only prelimnary
