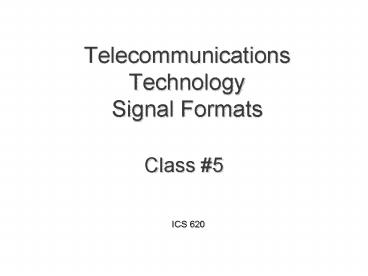

Telecommunications Technology Signal Formats

1
Telecommunications TechnologySignal Formats

• Class 5

ICS 620
2
Overview

• Signal formats (review)
• Multiplexed Signal Formats
• Noise types
• Signal to Noise Ratio

3
Signal Encoding Techniques
4
Reasons for Choosing Encoding Techniques

• Digital data, digital signal
• Equipment less complex and expensive than
  digital-to-analog modulation equipment
• Analog data, digital signal
• Permits use of modern digital transmission and
  switching equipment

5
Reasons for Choosing Encoding Techniques

• Digital data, analog signal
• Some transmission media will only propagate
  analog signals
• E.g., optical fiber and unguided media
• Analog data, analog signal
• Analog data in electrical form can be transmitted
  easily and cheaply
• Done with voice transmission over voice-grade
  lines

6
Signal Encoding Criteria

• What determines how successful a receiver will be
  in interpreting an incoming signal?
• Signal-to-noise ratio
• Data rate
• Bandwidth
• An increase in data rate increases bit error rate
• An increase in SNR decreases bit error rate
• An increase in bandwidth allows an increase in
  data rate

7
Factors Used to CompareEncoding Schemes

• Signal spectrum
• With lack of high-frequency components, less
  bandwidth required
• With no dc component, ac coupling via transformer
  possible
• Transfer function of a channel is worse near band
  edges
• Clocking
• Ease of determining beginning and end of each bit
  position

8
Factors Used to CompareEncoding Schemes

• Signal interference and noise immunity
• Performance in the presence of noise
• Cost and complexity
• The higher the signal rate to achieve a given
  data rate, the greater the cost

9
Basic Encoding Techniques

• Digital data to analog signal
• Amplitude-shift keying (ASK)
• Amplitude difference of carrier frequency
• Frequency-shift keying (FSK)
• Frequency difference near carrier frequency
• Phase-shift keying (PSK)
• Phase of carrier signal shifted

10
Basic Encoding Techniques
11
Amplitude-Shift Keying

• One binary digit represented by presence of
  carrier, at constant amplitude
• Other binary digit represented by absence of
  carrier
• where the carrier signal is Acos(2pfct)

12
Amplitude-Shift Keying

• Susceptible to sudden gain changes
• Inefficient modulation technique for data
• On voice-grade lines, used up to 1200 bps
• Used to transmit digital data over optical fiber

13
Binary Frequency-Shift Keying (BFSK)

• Two binary digits represented by two different
  frequencies near the carrier frequency
• where f1 and f2 are offset from carrier frequency
  fc by equal but opposite amounts

14
Binary Frequency-Shift Keying (BFSK)-contd

• Less susceptible to error than ASK
• On voice-grade lines, used up to 1200bps
• Used for high-frequency (3 to 30 MHz) radio
  transmission
• Can be used at higher frequencies on LANs that
  use coaxial cable

15
Multiple Frequency-Shift Keying (MFSK)

• More than two frequencies are used
• More bandwidth efficient but more susceptible to
  error
• f i f c (2i 1 M)f d
• f c the carrier frequency
• f d the difference frequency
• M number of different signal elements 2 L
• L number of bits per signal element

16
Multiple Frequency-Shift Keying (MFSK)-contd

• To match data rate of input bit stream, each
  output signal element is held for
• TsLT seconds
• where T is the bit period (data rate 1/T)
• So, one signal element encodes L bits

17
Multiple Frequency-Shift Keying (MFSK)-contd
18
Phase-Shift Keying (PSK)

• Two-level PSK (BPSK)
• Uses two phases to represent binary digits

19
Phase-Shift Keying (PSK)-contd

• Differential PSK (DPSK)
• Phase shift with reference to previous bit
• Binary 0 signal burst of same phase as previous
  signal burst
• Binary 1 signal burst of opposite phase to
  previous signal burst

20
Phase-Shift Keying (PSK)-contd

• Four-level PSK (QPSK)
• Each element represents more than one bit

21
Phase-Shift Keying (PSK)-contd

• Multilevel PSK
• Using multiple phase angles with each angle
  having more than one amplitude, multiple signals
  elements can be achieved
• D modulation rate, baud
• R data rate, bps
• M number of different signal elements 2L
• L number of bits per signal element

22
Quadrature Amplitude Modulation

• QAM is a combination of ASK and PSK
• Two different signals sent simultaneously on the
  same carrier frequency

23
Quadrature Amplitude Modulation
24
Decibels

• It is essential to realize that decibels are a
  measure of the RATIO between two quantities.
  Decibels are a measure of how one quantity
  compares to some reference quantity. Decibels are
  NOT an absolute measure.

25
Decibels - contd
dB 20 log 100/1 20 log 10 20
(2) 40 dB
IN
OUT
2
1v
100v
IN
OUT
dB 20 log 1/100 20 log 10 20
(-2) -40 dB
-2
100v
1v
26
Noise Types

• White Noise
• Static -- Lightning
• Thermal -- Pervasive
• Galactic -- Not a problem except in satellite
• Single Frequency
• Hum -- 60 Hz

27
Noise Types (Cont'd)

• Shot noise
• Phenomenon in integrated circuits
• Coherent interference
• Cross-talk -- NeXT, FeXT,Intermodulation
  distortion

28
Signal to Noise Ratio

• Ratio of Signal Power wrt Noise
• Measures difference in strengths
• Used to determine minimum allowable signal
• SNR 10 Log (S/N)

Signal Strength
- 25 dBm
SNR 35 dB
- 60 dBm
Noise Strength
29
Channel Capacity

• In the presence of noise there is a limit to the
  bit rate that a channel can carry
• Shannon proved
• CSh BW Log2 (PSignal/Pnoise )
• CSh is in bits/sec

30
Example of Capacity

• Voice circuit has SNR 26 dB
• What is capacity of this circuit for voice
  bandwidth of 3300 Hz?
• Start with
• CSh BW Log2 (PSignal/Pnoise)

31
Example of Capacity
SNR 26 dB
BW 3300 Hz
CSh BW Log2 (PSignal/PNoise CSh 3.3 K Log2 (
26 dB)
)
32
Example of Capacity
SNR 26 dB
BW 3300 Hz
CSh BW Log2 (PSignal/PNoise) CSh 3.3 K Log2 (
26 dB)
SNR 10 Log (PSignal/PNoise)
(PSignal/PNoise) 10 SNR/10
CSh 3.3K Log2 (10 2.6)
33
Example of Capacity
SNR 26 dB
BW 3300 Hz
CSh BW Log2 (PSignal/PNoise) CSh 3.3 K Log2 (
26 dB)
SNR 10 Log (PSignal/PNoise)
(PSignal/PNoise) 10 SNR/10
CSh 3.3K Log2 (10 2.6)
A handy substitution Log2 (A) ln A ? ln 2
2.6
CSh 3.3 K x ln 10 ln 2 CSh 3.3 K x
5.986 x .6931 28.5 Kbps
CSh 28.5 Kbps
34
(No Transcript)
35
(No Transcript)
36
SONET

• Synchronous Optical NETwork
• SONET is the multiplexing protocol used to in
  fiber optical connections. Its basic
  configuration is based on 51.84 Mb/s (Synchronous
  Transport Signal level one - STS - 1)

37
SONET - contd
38
STS-1 Frame Structure

• An STS-1 frame is divided into two main
  categories The Transport Overhead and the
  Synchronous Payload Envelope (SPE). The frame is
  made up of 90 columns in 9 rows (810 bytes or
  6480 bits).

39
STS-1 Frame Elements
9 rows x 90 bytes (columns) x 8 bits/byte x 8000
frames/s equals 51,840, 000 b/s or 51.840 Mbps
40
Virtual Tributaries (VT)
41
SONET Line Switched Ring Topology
42
Network Design Considerations for SONET
43
DWDM
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
Summary

• dB
• Signal formats
• Noise types
• SNR (Shannon Model)
• SONET basics
