Automatic Assignment of SNOMED Categories:

1

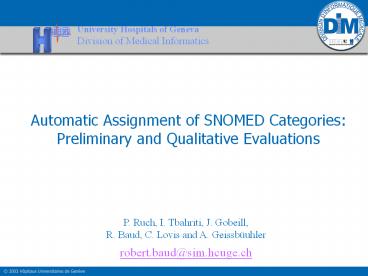

Automatic Assignment of SNOMED Categories Prelimi
nary and Qualitative Evaluations
P. Ruch, I. Tbahriti, J. Gobeill, R. Baud, C.
Lovis and A. Geissbüuhler robert.baud_at_sim.hcuge.c
h
2
Aspects of any terminolgy
Language dependant
Language independant
In vitro
In vivo
Language Epistemology
Ontology
Terminology
Model of the domain Taxonomy Relationships Form
al constraints
Pragmatic domain Representation is necessary
for dissemination Bag of terms
Expert domain representation Medical
literature Unique prefered terms
3
Text categorization tasks for what?

• Key words assignement
• Libraries and Digital Libraries
• ACM, IEEE, MeSH
• Encoding
• ICD for billing
• SNOMED for patient record indexing
• Genes attributes process, function, component
  (GO)

4
Goal

• To develop and to evaluate an automatic tool for
• Browsing SNOMED CT
• Automatic assigment of SNOMED CT categories to a
  text
• Automatic assignement of SNOMED CT categories
• Passage extraction to support the prediction
• Display interface

5
Problem statement

• Absence of tuning/evaluation data (gold standard)
• To transform a MEDLINE/MeSH collection into a
  MEDLINE/SNOMED collection
• Use the UMLS for the transformation
• Tune and evaluate the categorization
  effectiveness
• Discussion
• Appropriateness of the collection
• Comparison MeSH and SNOMED (different
  granularity)

6
MEDLINE citation

• PMID 11924965
• Simple multiplex genotyping by surface-enhanced
  resonance Raman scattering.
• Graham D, Mallinder BJ, Whitcombe D, Watson ND,
  Smith WE.
• The accurate detection of DNA sequences is
  essential for a variety of post human genome
  projects including detection of specific gene
  variants for medical diagnostics and
  pharmacogenomics. A specific DNA sequence
  detection assay based on surface-enhanced
  resonance Raman scattering (SERRS) and an
  amplification refractory mutation system (ARMS)
  is reported. Initially, generation of PCR
  products was achieved by using specifically
  designed allele-specific SERRS active primers.
  Detection by SERRS of the PCR products confirmed
  the presence of the sequence tested for by the
  allele-specific oligonucleotides. This lead
  directly to the multiplex genotyping of human DNA
  samples for the deltaF508 mutational status of
  the cystic fibrosis transmembrane conductance
  regulator gene using SERRS active primers in an
  ARMS assay. Removal of the unincorporated primers
  allowed fast and accurate analysis in this system
  in a multiplex format without any separation of
  amplicons. The results indicate that SERRS can be
  used in modern genetic analysis and offers an
  opportunity for the development of novel assays.
  This is the first demonstration of the use of
  SERRS in multiplex genotyping and shows potential
  advantages over fluorescence as a detection
  technique with considerable promise for future
  development.
• Major MeSH Cystic Fibrosis DNA Genotype
  Polymerase Chain Reaction
• Minor MeSH HLA-DQ Antigens Human Reverse
  Transcriptase
• Sequence Analysis Spectrum Analysis,
  Raman
• Support, Non-U.S. Gov't
• Only MeSH marked as major () are
  used in our experiments !

7
UMLS mapping to SNOMED-CT (via the CUI)

• PMID 11924965
• Simple multiplex genotyping by surface-enhanced
  resonance Raman scattering.
• Graham D, Mallinder BJ, Whitcombe D, Watson ND,
  Smith WE.
• The accurate detection of DNA sequences is
  essential for a variety of post human genome
  projects including detection of specific gene
  variants for medical diagnostics and
  pharmacogenomics. A specific DNA sequence
  detection assay based on surface-enhanced
  resonance Raman scattering (SERRS) and an
  amplification refractory mutation system (ARMS)
  is reported. Initially, generation of PCR
  products was achieved by using specifically
  designed allele-specific SERRS active primers.
  Detection by SERRS of the PCR products confirmed
  the presence of the sequence tested for by the
  allele-specific oligonucleotides. This lead
  directly to the multiplex genotyping of human DNA
  samples for the deltaF508 mutational status of
  the cystic fibrosis transmembrane conductance
  regulator gene using SERRS active primers in an
  ARMS assay. Removal of the unincorporated primers
  allowed fast and accurate analysis in this system
  in a multiplex format without any separation of
  amplicons. The results indicate that SERRS can be
  used in modern genetic analysis and offers an
  opportunity for the development of novel assays.
  This is the first demonstration of the use of
  SERRS in multiplex genotyping and shows potential
  advantages over fluorescence as a detection
  technique with considerable promise for future
  development.
• SNOMED cystic fibrosis (SN190911006/SN190905008
  ), dna (SN024851008),
• polymerase chain reaction
  (SN258066000) , genotype (SN363779003)

8
General strategies for text categorization

• Retrieval based on word-matching, which
  attributes concepts to text based on shared words
  between the text and the concepts
• Cross Language IR (SAPHIRE Int., Hersh et al.
  1998)
• Recent and rare
• Empirical learning of text-concept associations
  from a training set of texts and their associated
  concepts
• Reuters (Bayesian classifiers, Lewis 1992) 100
  classes
• Text categorization/filtering paradygm
  Sebastiani hundreds
• ? But learning conditions
• ? Usual browsing tools (UMLS, GO, CLUE Browsers)
• Boolean, Completer, Exact match (morphology)
• Poor ranking and recall effectiveness

9
Browsers

• Browser
• Hierarchical viewer ex. GO Browser (NIH) ?
• Textual input
• Input regulation cystic fibrosis transmembrane
  conductance
• Output NOTHING ?
• Good browser
• Input  papular hamartoma between mesoderm and
  ectoderm
• Output linear papular ectodermal-mesodermal
  hamartoma
• in top 10

10
?
11
Learning and large scale text categorization

• Limits of Machine Learning approaches
• Number of binary classifiers computational issue
• Class sets must be static diachronic issues
• Rare classes are ignored experimental issues
• Lack of training data transcendental issue
• collection of clinical reports with SNOMED-CT ?

12
Data and metrics

• Cystic fibrosis collection 1239 MEDLINE records
• Tuning/Evaluation split 239/1000
• Top precision
• Precision of categories returned on the top of
  the list.
• Average precision
• Average Precision over 11 recall points

13
Basic Strategies

• Pattern matcher thesaurus RegEx
• word1wordn5 ? word1 _,2 wordn
• word1wordn5 ? word1 wordiwordn
• ? Boolean scoring good precision
• Vector Space Porter stems TFIDF weighting
  VS
• ? Fine scoring good recall
• Balanced combination of each method
• Data-driven ? need a (small) sample for tuning

14
Vector space parameters weighting !

• TF weightterm f(term frequency) 1
• IDF weightterm f(document frequency-1)
• Normalization cosine, pivoted

15
Specific normalization

• Removing meta-abbreviations
• NOS (Not otherwise specified)
• NES (Not elsewhere classified)
• NOC (Not otherwise classifiable)
• NFQ (Not further qualified)...
• Handle/Expand more than fifty SNOMED specific
  abbreviations mainly from Read codes
• ACOF ADVA AR CFIO CFSO FB FH FHM HFQ
  LOC MVNTA MVTA...

16
Features stems, noun phrases and thesauri

• PMID 11924965
• Simple multiplex genotyping by surface-enhanced
  resonance Raman scattering.
• Graham D, Mallinder BJ, Whitcombe D, Watson ND,
  Smith WE.
• The accurate detection of DNA sequences is
  essential for a variety of post human genome
  projects including detection of specific gene
  variants for medical diagnostics and
  pharmacogenomics. A specific DNA sequence
  detection assay based on surface-enhanced
  resonance Raman scattering (SERRS) and an
  amplification refractory mutation system (ARMS)
  is reported. Initially, generation of PCR
  products was achieved by using specifically
  designed allele-specific SERRS active primers.
  Detection by SERRS of the PCR products confirmed
  the presence of the sequence tested for by the
  allele-specific oligonucleotides. This lead
  directly to the multiplex genotyping of human DNA
  samples for the deltaF508 mutational status of
  the cystic fibrosis NP transmembrane
  conductance regulator gene using SERRS active
  primers in an ARMS assay. Removal of the
  unincorporated primers allowed fast and accurate
  analysis in this system in a multiplex format
  without any separation of amplicons. The results
  indicate that SERRS can be used in modern genetic
  analysis and offers an opportunity for the
  development of novel assays. This is the first
  demonstration of the use of SERRS in multiplex
  genotyping and shows potential advantages over
  fluorescence as a detection technique with
  considerable promise for future development.
• Major Terms Cystic Fibrosis DNA Genotype
  Polymerase Chain Reaction

17
Example ranked categories passages

• Input
• Fibrodysplasia ossificans progressiva is a very
  rare and disabling hereditary disorder of
  connective tissue characterised by symmetric
  congenital anomalies of the great toes and thumbs
  and by progressive heterotopic ossification of
  tendons, ligaments, fasciae and striated muscles.
  In this case we report a 17-year-old boy who
  presented with a painful swelling of the right
  mandibula with trismus. Multiple heterotopic soft
  tissue calcifications, severe scoliosis and
  typical anomalies of toes and thumbs on the
  radiographs were pathognomonic for fibrodysplasia
  ossificans progressiva.

18
(No Transcript)
19
Results

• Weighting function Top Average
• concepts.abstracts Precision Precision
• dtu.dtn regex 0.801 0.4545

• lnc.lnn regex 0.791 0.453

• anc.ntn regex 0.787 0.4515
• atn.ntn regex 0.823 0.4485
• lnc.atn 0.696 0.355
• Difference between combined and not combined
  classifiers is statistically significant (15)

20
Conclusions

• SNOMED categorization can be done with 80
  precision
• Combined approaches are effective
• Multilingual aspects have to be considered
  language tools have to be available in several
  languages
• There is a need for reference collections of
  texts duely indexed to Snomed CT and acting as a
  gold standard

21
Further conclusions

• SNOMED categorization is not only for scientific
  papers, but also and/or mainly for patient
  records
• Language aspects
• Epistemological aspects
• A large dissemination of SNOMED CT is depending
  on a quality insurance policy and availability of
  multilingual language tools, on the top of an
  excellent terminology
• Future resources for SNOMED CT development and
  maintenance will only be available in case of a
  large dissemination.

22
Future Work

• Need a hierarchical viewer for research, call for
  bid !

23

• Please visit www.semanticmining.org !
• Thank you for your attention

24
About MetaMap
CF collection, MeSH, UMLS distribution, not LHRC
version
