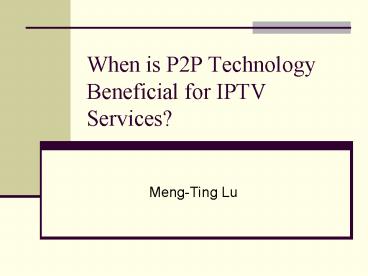

Title: When is P2P Technology Beneficial for IPTV Services?


1
When is P2P Technology Beneficial for IPTV
Services?
  • Meng-Ting Lu

2
Reference
  • Y.-F. Chen, Y. Huang, R. Jana, H. Jiang, M.
    Rabinovich, B. Wei, and Z. Xiao, When is P2P
    Technology Beneficial for IPTV Services, ACM
    NOSSDAV, June 2007.

3
Outline
  • Introduction
  • Network Models
  • Model Analysis
  • Cost-Benefit Analysis
  • Conclusion

4
Introduction
  • Cloud Model vs. Physical Model
  • Cross-ISP P2P traffic
  • Pricing Strategy
  • Flat fee, usage-based, built-in
  • Achieve more profit by providing the appropriate
    incentives for peers
  • Couple the pricing models with a physical model
    and study the trade-offs

5
Cloud Model
B2S
6
Physical Model (ATT Light-Speed)
B2S
B1N
B1S
7
P2P Sharing within a Community
B2S
B1S
B1N
Bottleneck
Not beneficial
8
P2P Sharing within a Community
B2S
B1S
B1N
Bottleneck
Beneficial
9
P2P Sharing across Communities
B2S
B1S
B1N
or
Bottleneck
Not beneficial
10
Simulation Setup
B2S 10 Gbps
Content server (1000 programs, 120 mins, 6 Mbps)
11
Simulation Setup
20 communities
Content server (1000 programs, 120 mins, 6 Mbps)
B1S
B2S 10 Gbps
B1N 0.622 Gbps
12
Simulation Setup
  • Server assign a set of peers to serve requests
  • Request a streaming with probability 2 every
    tick (1 min)
  • May download only one stream at a time
  • Program selection according to Zipfs
    distribution
  • Keeps the data for 120 mins after download
  • Turn off 0.1 and turn on 0.5 every tick
  • 5000 time ticks and taking the average over the
    last 2500 time ticks

13
Links across communities are heavily utilized.
Limited by B1N
Total of peers 20community size
14
Dont consider the bandwidth in the cloud
Traffic across communities increases
Limited by B2S
Total of peers 10000 Community size 500
15
Serves all active viewers
Limited by B1N
Limited by B1N, traffic across communities
reduces the bandwidth
Total of peers 10000 Community size 500
B2S
16
Cost-Benefic Analysis
  • Maximum Profit for Conventional IPTV
  • Pnop2p rN Enop2p
  • P2P Incentive Models
  • Built-in Model
  • Pb rN Enop2p tN
  • r fee paid by a viewer
  • N number of viewers
  • tN P2P installation expense

17
Cost-Benefic Analysis
  • Flat-reward Model
  • Pf rN Enop2p twN dwN
  • w percent of viewers sign up for P2P
  • d reward per P2P user
  • Usage-based Model
  • Ps rN Enop2p tN qbuTN
  • u average video rate
  • T program length
  • q credit per bit
  • b percent of viewers download data from peers

18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
