Title: CS 104 : Spreadsheets Fun with Formula


1

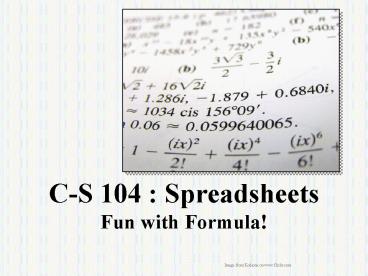

C-S 104 SpreadsheetsFun with Formula!
Image from Kodama on www.flickr.com
2
An Example of Financial Functions
  • Excel has built-in functions for financial
    analysis
  • Develop a worksheet to determine the monthly
    mortgage payment amount given an initial loan
    amount, an annual interest rate, and length of
    term.

3
An Example of Financial Functions
  • Must use the following function
  • PMT( rate, nper, pv, fv, type )
  • rate the interest rate per pay period
  • nper the total number of pay periods
  • pv the initial loan amount
  • fv the future value of the loan (usually
    zero)
  • type does the payment occur at the start (1)
    or end (0) of pay period. Defaults to end of
    period.

4
Example
Problem statement What is the goal of the
worksheet? Output What are the desired results?
Input What information is needed to calculate
the output? Formula How is the input related to
the output?
  • Problem statement To determine the affordability
    of a mortgage loan
  • Output(s)
  • The monthly mortgage payment amount
  • Input
  • Annual interest rate
  • Total number of years of the loan
  • Loan amount
  • Assumptions
  • There are 12 pay periods in each year
  • Fixed rate, fixed payment

http//www.wealth4freedom.com/dollar_bill_great_se
5
Example
Problem statement What is the goal of the
worksheet? Output What are the desired results?
Input What information is needed to calculate
the output? Formula How is the input related to
the output?
  • Input
  • Annual interest rate
  • Total number of years of the loan
  • Loan amount
  • Formula
  • PMT( rate, numberPeriods, presentValue )
  • numberPeriods numberOfYears 12
  • Rate periodic rate annual rate / 12

6
Example
  • Label the assumptions
  • Document the input cells
  • Document the output cell

7
Relational Operators
  • Relational operators produce logical values
  • There are exactly two logical values
  • True
  • False
  • Comparison operators are binary operators
  • Each operand must be a number

8
Relational Operators
  • Relational operators produce logical values

10 lt 30
30 30
30 ltgt 30
35 gt 30
A5 gt B5
9
Logical Functions
  • Logical functions process logical values
  • There are exactly two logical values
  • True
  • False
  • Logical values can be combined using
  • Conjunction (and)
  • Disjunction (or)
  • Negation (not)

10
Logical Functions
  • Logical functions include
  • AND( input1, input2, input3, )
  • Each input value must be either true or false.
    Must have at least 1 input.
  • The result of the function TRUE if all inputs are
    true and FALSE otherwise
  • OR( input1, input2, input3, )
  • Each input value must be either true or false.
    Must have at least 1 input.
  • The result of the function FALSE if all inputs
    are false and TRUE otherwise
  • NOT( input )
  • The input must be either true or false
  • The result of the function is TRUE if the input
    is false and FALSE otherwise
  • TRUE()
  • The result of this function is TRUE
  • FALSE()
  • The result of this function is FALSE

11
Logical FUNCTIONS
  • In SQL, logical combinators were OPERATORS
  • The OR always has TWO operands and the word
    itself occurs between them
  • SELECT supplier_idFROM supplierWHERE
    supplier_name 'IBM' OR supplier_city
    'Newark'
  • In Excel, logical combinators are FUNCTIONS
  • The OR is a function the word itself occurs
    first and may have 1 or more arguments
  • OR( A5 gt 10, B5 gt 10)

12
Example of Logical Functions/Operators
  • Write a spreadsheet to determine admission for
    college applicants
  • Students are admitted only if
  • High school GPA exceeds or equals 3 AND
  • Math SAT exceeds or equals 600

13
Example
  • Best to consider the cut-off values as input
  • What to enter into D7?

AND(B9gtB5, C9gtB6)
14
Example
  • Best to give names to cells containing referenced
    data.
  • What to enter into D7?

AND(B9gtMIN_GPA, C9gtMIN_SAT)
15
Conditionals
  • Often need to make decisions based on a criteria
  • For example a company contributes 4 of an
    employees salary to health care if they are full
    time and makes no contribution if they are part
    timers.

16
Conditionals
  • The IF function is used to select exactly ONE
    value from exactly TWO choices
  • IF( criteria, ifTrue, ifFalse )
  • Criteria must be a logical (boolean) value
  • Function returns ifTrue if criteria is true and
    ifFalse otherwise

IF(10gt5, YES, NO)
IF(10gt20, 30, 50)
IF(A510, B5, C5)
17
Conditional Example
  • What to enter into cell E10?

IF(B10PT, 0, C10.04)
18
Conditional Example
  • A fixed bonus is given to any member of the sales
    force that sells a minimum amount of hardware and
    support.
  • Cell F9 contains what formula?

19
Conditional
  • Can use IF function to select among multiple
    choices
  • Use nested ifs
  • To select either A, B, or C (three choices)
  • IF(CONDITION1, IF(CONDITION2, A, B), C)

20
Conditional
  • IF(CONDITION1, IF(CONDITION2, A, B) , C)

21
Conditional Example
  • Sometimes need to make a choice in a choice!
  • What to enter into E10?

IF(B10PT, 0, IF(D10F,C10.04, C10.03))
22
Conditional Example
  • Better to make the percentages inputtable (i.e.
    they may change!)
  • What to enter into E10?

23
Deleting / Inserting Cells
  • Formula may contain
  • cell references A5
  • cell ranges SUM(A5F20)
  • When a cell is deleted
  • any formula containing a reference to the deleted
    cell is broken since the cell no longer exists
  • any formula containing a range where the cell is
    located is (potentially) modified

24
Deleting / Inserting Cells
  • Consider the formula

A2B2C2
  • What happens to the formula when cell B2 is
    deleted?

A2REF!C2
  • REF! is an error message indicating that
    there is an error with the formula. (An invalid
    reference)

25
Deleting / Inserting Cells
  • When a formula contains a range, the range is
  • modified if an entire row or an entire column of
    the range is deleted
  • unchanged if any portion otherwise is deleted

26
Deleting / Inserting Cells
  • Consider the formula

SUM(A2F10)
  • What happens to the formula when row 5 is deleted?

SUM(A2F9)
  • The range is modified since an entire row of the
    range was deleted.

27
Deleting / Inserting Cells
  • Consider the formula

SUM(A2F10)
  • What happens to the formula when cell B2 is
    deleted?

SUM(A2F10)
  • The range is not modified since the deleted part
    was not an entire row or column of the range was
    deleted.

28
Deleting / Inserting Cells
  • Consider the formula

SUM(A2F10)
  • What happens to the formula when a new row is
    inserted between rows 3 and 4?

SUM(A2F11)
  • The range is modified to include the inserted row
    of data.

29
Deleting / Inserting Cells
  • Consider the formula

SUM(A2F10)
  • What happens to the formula when a new column is
    inserted between cols B and C?

SUM(A2G10)
  • The range is modified to include the inserted
    column of data.

30
Formatting Data
  • Data can be presented (or formatted) in many ways
  • Presentation (or formatting) has to do with the
    way the data is displayed.

Phone Number Database
31
Formatting
  • Cells can be formatted
  • Cells contain data
  • Value
  • Text
  • Formula which produce a text or value
  • Cells display the data as instructed by formatting

32
Formatting
Lets say a cell contains the value 39183
Apply the following formatting style
The cell displays the data accordingly
39183
right-aligned general number
39183
33
The Format Cells dialog box
34
The Alignment tab of the Format Cells dialog box
35
Merge a range of cells
  • To merge a range of cells into a single cell
  • Use the Merge option on the Alignment tab in the
    Format Cells dialog box
  • To split a merged cell back into individual
    cells
  • Select the merged cell
  • Click the Merge and Center button again
  • Or uncheck the Merge Cells check box on the
    Alignment tab in the Format Cells dialog box

36
Merge headings across multiple cells
37
Hide rows and/or columns
  • You can hide rows or columns
  • Does not affect the data stored there
  • Does not affect any cell that might have a
    formula reference to a hidden cell
  • To hide a row or column
  • Select the row or column and then choose Hide
    from the shortcut menu that pops up when you
    right click the row or column heading
  • To unhide a row or column
  • Select the headings of the rows or columns that
    border the hidden area, then choose Unhide from
    the shortcut menu that pops up when you right
    click the row or column heading

38
Worksheet with hidden cells
39
Create and apply styles
  • If you have several cells that use the same
    format, you can create a style for those cells.
  • A style is a saved collection of formatting
    options number formats, text alignment, font
    sizes and colors, borders, and background fills.
  • If you modify the specifications for a style, the
    appearance of any cell associated with that style
    would be automatically changed to reflect the new
    style.

40
The Style dialog box
41
Use Find and Replace to change formats
  • Can find cells based on formatting and replace
    formatting
  • Click Edit on the menu bar and then click Replace.
