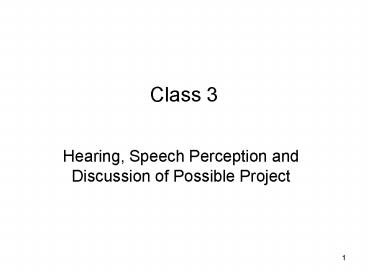

Class 3

1
Class 3

• Hearing, Speech Perception and Discussion of
  Possible Project

2
How do we achieve communication?
The brains of the speaker and listener
participate actively in the process. In addition
we must consider the cultural and other
associated cues involved. In responding the same
process takes place but the roles of the speaker
and listener are reversed.
While we think of written and spoken human
language most of the time, this concept may apply
to any means of communications for which there is
an agreed upon mechanism to communicate,
particularly if common or analogous experiences
have been shared by the speaker(s) and the
listener(s) which allows a shared frame of
reference (vg sign language.)
3
Human Ear Anatomy
Middle ear (impe-dance match)
Outer ear
Inner ear (from cochlea in)
(from eardrum out)
It is in the cochlea where the transduction from
acoustic signal to nerve impulse takes place
The ear canal is 2.7 cm long and 11.45 cm2.
Pole at 3kHz
4
Auditory psychophysics

• Psychophysics deals with the physical and
  psychological aspects of sound perception. If we
  do not restrict the intensity of the sound, the
  ear can perceive from 16 Hz to 18kHz. However, it
  is in the 1-5 kHz range that perception is
  possible at a broad range of sound energy levels.
  Just-noticeable-differences (JND or difference
  limen) which are sounds recognized correctly 75
  of the time gives an indication of the
  discriminating power of the ear and the number of
  quantization levels required for successful
  recognition by humans. Perceived loudness is
  measured in phons which, at around 1 kHz, are
  equivalent to 1 dB but vary with frequency
  because of the nonlinearity of the perception
  spectrum (see Fig. 4.10 in text). There are 1600
  distinguishable frequencies and 350 intensities
  but only about 300,000 tones of different
  frequency-intensity that can be discriminated in
  pairwise comparisons over the acoustic field
  between the thresholds of hearing and pain. The
  duration of the tones comes also into the
  picture. (Note hearing or the ear has greater
  power of resolution than the eye or vision, and
  it has been used to advantage in sonification
  applications.)

5
The boundaries of perception
6
Pitch Perception

• Pitch Perceptual mapping of FO 1/T of the
  glottal pulse
• There are two types of pitch which may be
  perceived
• the virtual (normal) pitch which is perceived
  through its harmonics and
• the spectral pitch which is determined by the
  relative energy levels in the spectrum of the
  signal.

7
Masking

• When two sounds of the same or similar
  frequencies are perceived the can mask each
  (usually lower frequencies mask higher ones or if
  closely shifted they may mask each other) other
  in a manner different than the sum of their
  individual perceptions. Masking is the major
  nonlinear aspect of perception that limits the
  consideration of speech signals as the sum of
  their tone and bandlimited noise components. The
  separation of the frequencies of the tones makes
  a difference in the amplitude required for their
  individual perception. Masking may also occur in
  non-simultaneous and with stimuli more complex
  than simple tones.

8
Critical Bands
A critical band is visualized as a bandpass
filter with spectrum that approximates the tuning
curves of auditory neurons. According to the
text their individual bandwidth corresponds to
the 1.5 mm spacings of the 1200 primary nerve
fibers in the cochlea (gt 24 filters or fewer,
having bandwidths increasing with frequency, with
peaks initially at uniformly spaced frequencies
and later logarithmically spaced.) (Graph from
the Auditory Toolbox in http//cobweb.ecn.purdue.e
du/malcolm/interval/1998-010/ )
It is possible to use a filter bank for spectral
analysis which is a set of overlapping band pass
filters each analyzing a portion of the input
speech spectrum. It is considered that this is
more flexible than the DFT as a set of 8-12 band
pass filters yield a compact and efficient
representation. Their bandwidth increases
linearly up to 1 kHz and logarithmically
thereafter.
9
Bark scale and Mel scale from text
10
Speech hearing review

• Given that speech recognition systems mimic the
  auditory process, understanding the hearing
  process is important
• It is even more important in the synthesis of
  speech if it is to sound natural
• In speech coding we can eliminate redundancies if
  we understand the information carrying narrow
  bandwidth and the masking properties of speech
• While the neuron firings are relatively well
  understood, their interpretation into linguistic
  messages by the brain is far from being well
  understood

11
Speech perception by humans

• We consider part of this study
• Perceptually relevant aspects
• Models of perception
• Vowel and consonant perception
• Perception of intonation
• Along the way we consider the help of redundant
  cues in recognition but tend to ignore them in
  synthesis

12
Visual speech

• Among the most notable redundant aspect of speech
  is the cues that a speaker provides in his facial
  and lip movements while speaking. While not
  totally capable of substituting speech they
  supplement its perception, particularly in the
  presence of noise. The likely sequences of
  clustered movements corresponding to acoustic
  phonemes are called visemes (fewer than
  phonemes). Almost all the vowels and diphthongs
  formed their own viseme groups while consonant
  phones merged into viseme groups with other
  consonant phones. It seems that visual and
  acoustic speech are complementary in their
  contribution to recognition. Combining acoustic
  and visual speech recognition would require
  computational power but would improve
  significantly the recognition.

13
CLUSTERS
Most of the vowels are visually distinguishable
However, several consonants are not
distinguishable visually, but they are
acoustically
(silence)
14
Results of our visual speech research (Goldschen)

• It was possible to recognize 25 of a large set
  of spoken sentences (150) using only visual
  information from the oral cavity region, without
  the use of any context, grammar or acoustic
  information
• Only 13 features were used, mostly dynamic (first
  and second derivatives)
• Visual information could complement acoustic
  recognition (particularly in a noisy environment)
  because of their complementary

15
The McGurk effect

• An interesting phenomenon occurs when human
  perceive conflicting acoustical and optical
  information. A video tape of a speaker saying a
  syllable is played to a listener. However, in
  this tape another syllable is presented
  (synchronized) visually to the listener. Often
  listener perceive a different third syllable that
  was neither one of the two previously considered.
  This is called the McGurk effect and shows the
  reliance on optical information in the perception
  of spoken speech.

16
Important features of speech perception

• Spectral information is the single most important
  factor in the characterization of speech
  utterances (and is therefore preferred over time
  domain information). Dynamic changes in
  frequency components are also important and can
  be detected by machines as finite differences in
  consecutive frames.
• A significant indication of the importance of
  spectral information is that the range of
  frequencies produced by the speaker coincides
  with the range that can be perceived by the
  listener. Voicing is perceived through the
  harmonics of F0.
• Areas of larger energy in the signal (formants)
  are also significant cues that characterize
  speech. Also dynamic changes in energy will be
  useful in automatic speech recognition
• The categorization of the manner of articulation
  (at low frequencies) and of the place of
  articulation (particularly its influence on F2)
  are important cues in human speech recognition
  which, along with power, seem to be retained more
  easily in short term memory.
• When subject to noise a) the manner of
  articulation, b) voicing and c) place of
  articulation are most influential in the
  robustness of human speech recognition in that
  order

17
Experimentation and redundancy in speech

• Because of the difficulty in producing the
  samples of speech in a consistent manner, often
  the experimentation is done with synthetic or
  recorded speech. The former has the advantage of
  reproducing the same speech but lack the
  naturalness of the second. Also, there are
  significant differences between read and
  conversational speech
• Speech is highly redundant which aids recognition
  in the presence of noise. Evidence of redundancy
  within the speech signal is it is mostly
  recognizable even with amplitude clipping or
  filtering frequencies either above or below 1.8
  kHz. Furthermore the context of the sentence and
  the grammar of the language aid in providing
  redundant guidance.

18
Models of speech in human perception

• Categorical models are mostly based on the
  pairwise comparison of sounds (possibly involving
  short term categorical memory)
• Feature models seek to find feature detectors
  in the hearing system but even formants do not
  seem to be as relevant in perception as they are
  in speech production, although they correlate
  with neural firings but their dynamics
  (movement) are directly related to perception
• Active models assume an interplay between the
  mechanisms of remembered production and
  perception
• Passive models do not concern themselves with
  the production of speech but go directly from
  features (not how they occur) to phonetic
  categories. There is some analogies with machine
  speech recognition.

19
Perception of vowels

• Vowels being voiced are mostly perceived by their
  F1 and F2 (good in classifying the vowels) and
  some helped by F3.

The so-called vowel triangle shows the
relationship between F1 and F2 (notice the scale
of the two axes is different).
Back vowels
Front vowels
Perception of vowels and consonants in CV, CVC
and VC combinations is significantly affected by
changes in the formant structure because of the
coarticulatory and dynamic effects
20
Handling duration in recognizers

• Duration and related speaking rate cues are
  important in perception, but duration of phonemes
  is even more important in speech recognizers.
  Variations in duration are a cause of mistakes
  for a recognizer the two most frequent methods
  to handle them are the self loops in HMMs and DTW
  which optimizes the overall duration of a word
  given a prototype. This is particularly important
  for speakers who speak fast in conversational
  speech recognition. Variations in speaking rates
  in different speakers and even the same speaker
  are a major problem in recognition.

21
Perception of prosody

• The issue of prosody (also stress, rythm or
  intonation) is one that must be dealt with beyond
  the phonemic level in syllables and mostly in
  words (lexical) and sentences (sentential). It is
  usually a cue as to the relative importance of
  certain portion of the speech. Even pauses are
  often cues to the importance of what follows.
  Intonation rises are sometimes indicative of a
  question. It is also used to indicate the
  importance of a clause relative to another, the
  alternative name or title (vocative or
  appositive) and the end of a sequence of items.
  Also, prosody is particularly helpful to the
  listener to assess the emotional state of the
  speaker, particularly though changes in F0 and
  acoustic energy. Polysyllabic words have a
  stressed syllable and sometimes a secondary one.
  Some languages emphasize the position of stress
  relative to sequence of syllables in a word
  (French stresses the last syllable, most often
  English the first one). Unfortunately, our
  ability to simulate or handle prosody is limited.

22
Acoustic correlates for the perception of stress

• We can mention four (syllabic or beyond)
  correlates in order of importance 1) Pitch
  correlates monotonically with F0 and stress, 2)
  Length correlates length duration, 3) Loudness
  correlates with amplitude, and 4) Precision of
  articulation correlates with voice timbre (
  spectrum, particularly F1 and F2 it is what
  allows the comparison of different musical
  instruments playing the same note).
• Of course, stress can be detected in sentences or
  parts of a sentence (clauses, words). English
  (and German) are stressed-timed in the sense that
  which means that stressed syllables tend to occur
  at regular intervals. But stress often resolves
  syntactic ambiguity as in They fed her dog
  biscuits which may be stressed in her or her
  dog. Notice the tracking of F0, the downward
  slope in Hz of F0 at the end and the hat effect
  in the following augmented sentence.

23
Difference between pitch and fundamental frequency

• After studying this chapter on perception it
  should not be surprising to find out that pitch
  refers to the perceive F0 which is originated in
  the glottis. The F0 is transformed by the vocal
  tract (F1-F4 formed), environmental noise and
  reflections added, perceived by the ears which
  also filter it and finally reach the hearing
  portion of the brain. Pitch the auditory
  attribute of sound according to which sounds can
  be ordered on a scale from low to high. Changing
  in F0s (as we have seen that happens with
  intonation) in frequency and amplitude
  -particularly at low frequencies- may not be
  readily perceived by the ear because of
  just-noticeable-differences (JND). Pitch and
  actual F0 may differ up to 0.3 of the
  fundamental frequency.

24
Free space speech and localization (HRTF)

• The place of origin of sounds and speech in free
  space can be localized due to the binaural fact
  of perception. Binaural perception also helps one
  ear to compensate for noise near the other. From
  Wikipedia The head-related transfer function
  HRTF, also called the anatomical transfer
  function ATF, describes how a given sound wave
  input (parameterized as frequency and source
  location) is filtered by the diffraction and
  reflection properties of the head, pinna, and
  torso, before the sound reaches the transduction
  machinery of the eardrum and inner ear (see
  auditory system). Biologically, the
  source-location-specific prefiltering effects of
  these external structures aid in the neural
  determination of source location, particularly
  the determination of source elevation. The HRTF
  is considered in the design of earphones that
  allow localization. The kind of media (recorded
  speech, telephone speech, etc.) and the kind of
  microphone used for training (head mounted, open,
  distance to mouth, etc.) are important factors to
  take into account for both training and
  recognition.

25
Effects of context

• While the recognition of words in a sentence is
  helped by the overall context of the sentence and
  possible conversation when they are excised from
  a conversation only 50 are recognized. In
  studies in lipreading it is accepted that the
  best lip-readers recognized up to 35 of
  contextless words and our automated lipreading
  experiment achieved 25 success. Context is
  decided at higher levels in the cognitive chain,
  which points to the importance of the brain
  function in speech.

26
Project Rationale and motivation for the TIMIT
database

• There are two main approaches to speech
  recognition systems speaker independent and
  speaker dependent. Both must be trained with
  either one speaker or many others. Even the
  speaker dependent systems need to be initialized
  and tested with some approximation to the voice
  of the speaker, if possible, when designed. In
  choosing the training set it is important to have
  phonemes in the approximate proportion in which
  they appear in the speakers language (balance)
  and with as many of the characteristics
  (shibboleth) of the speaker (his regional accents
  for example) as possible. Also, possibly some
  read speech combined with some conversational
  speech. TIMIT offers all of that in two sets for
  speaker independent training and testing sets.

27
Handout describing the contents of the TIMIT CD
and the Linguistic Data Consortium (LDC) function
.

• While the TIMIT Database creation is rather old
  (1998) it has remained a standard for training
  and testing in American English speech as is
  evidenced by its being the top selling resource
  provided by the Linguistic Data Consortium
  (http//www.ldc.upenn.edu/Catalog/topten.jsp) .
  While the document handed out is also old, it
  contains the original information. An updated
  document may be available from NIST.

28
Discussion of the course project using a portion
of TIMIT and MATLAB

• I have ordered a copy of the TIMIT database CD
  and hope to have a homework assignment in which I
  copy for you a portion of the database and have
  you experiment with it. Unfortunately the CD has
  not arrived and I have not been able to formulate
  a feasible project.
• We will also use the MATLAB HMM capabilities to
  experiment with learning and recognition of some
  sequences. You should start utilizing the
  examples in MATLAB on how to use the HMM software
  in the package. A slide (slide 19) classifying
  it briefly was presented in lesson 1.

29
Summary of the lesson

• In a previous class we emphasized how speech is
  produced. In this class we covered a) the
  mechanism of hearing or audition and b) the
  mechanism by which the perceived speech is
  transformed into nerve firings or perception.
• We also covered non-auditory visual perception of
  speech (lip-reading)
• We studied the effects of duration and prosody in
  recognition, stress, context
• We finally considered the project for the course
  using TIMIT and MATLAB

30
Next class and assignment

• Our next class WILL NOT take place on September
  19 as usual. It will take place on September 17
  from 530 to 830 PM. IT WILL BE VIDEO-RECORDED
  SO IF YOU CANNOT ATTEND YOU CAN WATCH IT ON THE
  UTA WEBSITE. If you can attend, I would
  appreciate it, since it is not fun to teach in an
  empty classroom.
• Reading assignment for next class Read the
  material on the TIMIT database handout that
  describes the content of the TIMIT CD and the
  three related articles that follow it. There may
  be questions asked about this material.

31
Homework assignment to be turned in by or on the
September 26 class

• What is the range of perceived frequencies that
  is need that is needed to hear all phonemes?
• Given the telephone bandwidth (300-3300 Hz) which
  phonemes would be most distorted in the telephone
  channel?
• What isolated phonemes are most easily confused
  with /b/ ? Why?
• Why is place of articulation less reliable than
  manner of articulation in perceiving natural
  speech? Explain.
