Title: Quantum Cryptography


1

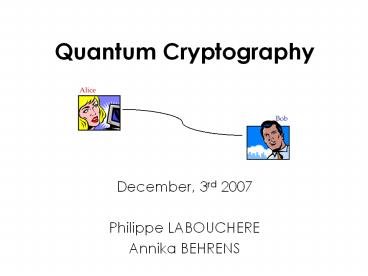

Quantum Cryptography
  • December, 3rd 2007
  • Philippe LABOUCHERE
  • Annika BEHRENS

2
  1. Introduction
  2. Photon sources
  3. Quantum Secret Sharing

3
  • Introduction
  • Photon sources
  • Quantum Secret Sharing

4
How to measure information (1)
  • Claude E. Shannon 1948
  • Information entropy
  • Mutual information

bits
5
How to measure information (2)
  • Relation between H and I
  • Mutual information between 2 parties

6
Venn diagrams
7
The BB84 protocol
8
The BB84 protocol principle
  • 2 conjugate basis
  • Information encoded in photons polarization
  • ? 0 /
  • ? 1 \
  • Quantum classical channels used for key exchange

Charles H. Bennett
Gilles Brassard
9
From random bits to a sifted key
Alices random bits 0 1 1 O O 1
Random sending bases D D R R D R
Photon Alice sends / \ /
Random receiving bases R D R D D R
Bits as received by Bob 1 1 1 0 0 1
Bob reports basis of received bits R D R D D R
Alice says which were correct no OK OK no OK OK
Presumably shared information . 1 1 . 0 1
Bob reveals some key bits at random . . 1 . 0 .
Alice confirms them . . OK . OK .
Remaining shared bits . 1 . . . 1
Quantum transmission
Public discussion
10
Mutual information vs quantum bit error rate
11
The no-cloning theorem
  • Dieks, Wootters, Žurek 1982
  • It is forbidden to create
  • identical copies of an arbitrary unknown quantum
    state.
  • Quantum operations unitary linear
    transformations on the state of a quantum system

12
  • Introduction
  • Photon sources
  • Quantum Secret Sharing

13
Sources of photons
  • Thermal light
  • Coherent light
  • Squeezed light

Average photon number of photons in a mode Number
of photons
14
Faint-laser pulses
  • ltngt µ 0.1 photon / pulse
  • Photon-number splitting attack!
  • Dark counts of detectors vs high pulse rate
    weaker pulses

Detection yield Transmission efficiency
!
Tradeoff
15
Entangled photon pairs
  • Spontaneous
  • Parametric
  • Down
  • Conversion
  • Idler photon acts as trigger for signal photon
  • Very inefficient

16
Single-photon sources
  • Intercept/resend attack
  • gt error rate lt dark count rate !
  • Condition for security
  • Drawback dark counts afterpulses

Detection yield
Transmission efficiency
17
Practical limits of QC
  • Realization of signal
  • Stability under the influence of the environment
    (transportation)
  • - Birefringence
  • - Polarization dispersion
  • - Scattering
  • Need of efficient sources detectors
    (measurements)

18
Bite rate as function of distance after error
correction and privacy amplification
Pulse rate 10 MHz µ 0.1 (faint laser pulses)
Losses _at_ 800nm 2dB / km _at_ 1300 nm 0.35dB
/ km _at_ 1550 nm 0.25 dB /km
19
  1. Introduction
  2. Photon sources
  3. Quantum Secret Sharing

20
Quantum Secret Sharing (1)
21
QSS (2)
  • N-qubit GHZ source
  • Define

22
Goodbye GHZ, welcome single qubit
23
Sequentially polarized single photon protocol

Original BB84 Modified BB84
Diagonal and Rectilinear bases Classes X and Y
/ and 0 and \ 1 fj 0, p/2 0 fj p, 3p/2 1
Correlated results if same bases used Correlated results if
24
Questions ?
