Lava Crowns and Bridges

1

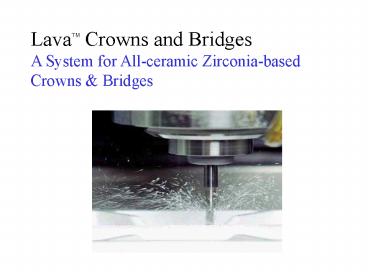

Lava? Crowns and Bridges A System for All-ceramic
Zirconia-based Crowns Bridges
2
Lava? Crowns and Bridges Strength and Beauty in
Ceramics
3
Lava? Crowns and Bridges Two-Stage System

• A high-strength CAD/CAM milled zirconia
  coping/framework for crowns and 3 4-unit
  bridges
• A highly esthetic finished restoration utilizing
  3M? ESPE? Lava? Ceram Veneering Ceramic

4
Lava? Crowns and Bridges Advantages

• High strength
• Excellent esthetics
• Longevity of restoration
• Versatility in cementation options
• Extremely low solubility and water absorption
• Outstanding marginal fit

5
Lava? Crowns and Bridges Long-term Stability

• To guarantee successful, long-term multi-unit
  bridge restorations, an initial strength of more
  than 400 N is required for anterior restorations
  and more than 600 N for posterior applications.
• Currently, values such as these (e.g. Lava unit
  bridges 1,500N) are achieved only with alumina
  or zirconia bridges.
• Lava frame zirconia demonstrates no measurable
  solubility or water absorption.

6
Lava? Crowns and Bridges Long-term Stability
(cont.)

• Limitations of glass ceramics and infiltrated
  ceramics (sub-critical crack growth, fatigues,
  stress, corrosion) when subjected to masticatory
  forces in the mouth are problematic.
• Generally speaking, the long-term strength of
  ceramic systems containing glass cannot be
  classified as risk free.
• Glass ceramics have a higher subcritical crack
  growth velocity and in consequence they have a
  lower long term stability due to the effect of
  oral moisture and sub-critical crack propagation
  (decreases to gt50 of initial strength).

7
Lava? Crowns and Bridges Zirconium Oxide Zr02

• Outstanding mechanical properties
• gt20 years of experience in various industrial
  and medical applications
• Extremely low solubility and water sorption
• Consistant raw material properties
• Good availability of raw materials
• Known processing parameters of raw materials

8
Lava? Crowns and Bridges All Ceramic Dental
Materials
Infiltrated Ceramic (glass containing), e.g.
InCeram Zirconia (? ZrO2), InCeram Alumina ?B ?
500 MPa KIC lt 5 MPa m1/2
Glass Ceramic (glass containing), e.g. Empress
I/II ?B ? 400 MPa KIC 2 - 3 MPa m1/2
Polycrystalline Ceramic (glass free), e.g. Lava
ZrO2, Procera Al2O3 ?B 500 - 1500 MPa KIC
5 - 10 MPa m1/2
?B Flexural Strength, KIC Fracture Toughness
9
Lava? Crowns and Bridges Transformation
Toughening of Zr02
DV/V0 (t ? m) 0.05
10
Lava? Crowns and Bridges Fracture Mechanics -
Zr02 Longevity Flexural strength decreases
through defects, crack propagation and crack
corrosion (quicker with glass)
DIN 843 - 3
sinitial
s5 years
Material
MPa
MPa
Lava
1345
615
Empress II
289
82
Cerec
88
32
(Mark II)
InCerAl
666
125
Dr. Fischer/Prof. Marx, Aachen 3M ESPE
11
Lava? Crowns and Bridges Strength Properties -
Zr02 ISO 6872 - Flexural Strength
3M ESPE Wagner et.al J. Prost. Dent. 76 2
1996
12
Lava? Crowns and Bridges Precision and Fit
buccal
mesial
mesial
distal
distal
MO 50 µm Holmes et.al, J.Prosth.Dent 1989,
62 405-408
13
Lava? Crowns and Bridges Optical Properties of
Ceramics Translucency comparison as a function of
wall (coping) thickness
14
Lava? Crowns and Bridges Optical Properties of
Ceramics Versus Metal
Natural tooth Conventional crown with
metal-based framework
Natural tooth Lava? crown
Dr. D. Edelhoff, Aachen and MDT V. Weber
15
Lava? Crowns and Bridges Effects of Moisture on
Ceramics
16
Lava? Crowns and Bridges Esthetics
17
Lava Crowns and Bridges Digital Wax Knife
Software
For "virtual" design and modification of copings
and frameworks prior to milling
18
Lava Crowns and Bridges Digital Wax Knife
Software (continued)

• Adds proper structural support
• Allows virtual build-up or reduction to zirconia
  framework
• Optimized support of the veneering ceramic
• Especially useful for short preparations and
  restorations requiring interproximal augmention

19
Lava Crowns and Bridges Digital Wax Knife
Software (continued)
Desired final contour
Wax knife addition
Original coping height
20
Lava? Crowns and Bridges Geometry Preparation
Comparisons

• Lava
• Chamfer prep
• Wall thickness 0.5 mm
• In-Ceram
• Chamfer prep
• Wall thickness 0.8mm
• Empress
• Shoulder prep and overall reduction
• 1.0 mm
• Procera Alumina
• Prep
• Wall thickness 0.6 mm

21
Lava? Crowns and Bridges Copings and
Frameworks It All Starts With Proper Tooth and
Model Preparation
22
Lava? Crowns and Bridges Preparation Prerequisites

• Preparation Design
• Required for optimal margin detection during
  scanning
• Margins should be chamfered
• gt4 taper of axial walls
• Rounded angles on incisal, occlusal and shoulders

Chamfer
Shoulder with rounded internal angles
23
Lava? Crowns and Bridges Prep/Die/Model
Preparation Requirements

• Nodules, stone-tags should be flicked, or scraped
  off.
• Block out undercuts, occlusal holes, and surface
  defects with resin material or light colored wax.
• Trough or gutter margins must be waxed or
  filled-in to an ideal level to be scanned.
• Feathered margins produce a slight over-contoured
  area for the porcelain buildup.

Avoid these types of defects
24
Lava? Crowns and Bridges Cementation

• Due to high strength of the zirconium oxide
  copings and frameworks, the system provides for
  versatility in choice of cements Conventional
  and resin-based cements can be used.
• Mechanical retention.
• Pretreat with Rocatec? or conventional
  sandblasting.
• Due to higher translucency, shaded cements may be
  beneficial.

• Recommended Cement Systems
• 3M? ESPE? RelyX? Unicem Self-Adhesive Universal
  Resin Cement
• 3M? ESPE? RelyX? Luting Plus Cement
  (resin-modified glass ionomer)
• 3M? ESPE? Ketac? Cem Glass Ionomer Luting Cement

25
Lava? Crowns and Bridges Profile of RelyX? Unicem

• Dual-curing chemistry ensures both light-curing
  and self-curing of the cement.
• Higher strength and mechanics compared to zinc
  phosphate, GIs, Compomers, and RMGIs.
• Esthetics and strength comparable to other
  composite resin cements.

• Low swelling and high dimensional stability.
• Fluoride release higher than composites, but
  lower than GIs.
• Excess removal easier than with other resins.
• Easy handling with capsule delivery.

26
Lava? Crowns and Bridges Features of RelyX? Unicem

• Self-adhesive no conditioner or bonding agent
  required
• Significant reduction in sensitivity potential
• Reduced concern for film thickness build-up
• Reliable adhesion to dentin and enamel and
  sealing of the tooth.
• Less concern for moisture sensitivity

• Broad Indications for use
• Metal based (full metal or PFM)
• Metal-free, all-ceramic/
• composite restorations
• Strengthened core restorations (i.e. Procera)
• Fast application time
• Available Shades A1, A3 Opaque, A2
  Universal,White Opaque, Translucent

27
Lava? Crowns and Bridges Clinical Experience EN
540 (Prof. Pospiech, Munich, Bad Homburg)

• Since 2000
• 38 posterior bridges
• 18 single crowns
• 3 telescoping crown dentures

No fractures of framework results after 3
years.1 case Small chipping of veneering
material
28
Lava? Crowns and Bridges Clinical Experience
(continued)

• gt1500 cases, gt200 bridges (3-4 units, blocked
  crowns, many supported by implants)
• Tracked over 36 months

• EN 540 (Prof. Pospiech, Munich, Bad Homburg)
• External pre-marketing evaluation (three labs)
• USA (Raigrodski, Sorensen)
• Over 5,000 units U.S.

ZTM Jan Langner, Schwäbisch Gmünd
29
Lava? Crowns and Bridges Clinical Photography
Single Units
Before
After
Dr. S. Reich, University of Erlangen, and
Hoffman CDT
30
Lava? Crowns and Bridges Clinical Photography 3
Unit Anterior Bridge
After
Before
Dr. Bonatz
31
Lava? Crowns and Bridges Clinical Photography 3
Unit Posterior Bridge
After
Before
Dr. Lynn Jones Matt Roberts, CDT
32
Lava? Crowns and Bridges System Components
Lava Therm Sintering furnace
Lava Scan Optical 3D scanner
Lava Form Computer-aided milling machine
Lava Ceram Veneering ceramic
Lava Frame Zirconia framework
33
Lava? Crowns and Bridges Processing Scheme
Die(s) Model
Scanning
Design
Milling
Sintering
Veneering
Removal Shading
34
Lava? Crowns and Bridges Summary
The excellent properties of strength, longevity
and esthetics require Lava - zirconia as the
dental material of the future. CAD/CAM-technology
combined with milling of zirconia in a
presintered green state guarantees economical and
clinical success!
