Title: Presentacin de PowerPoint

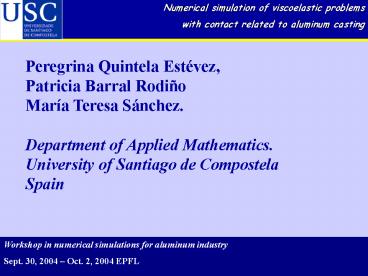

1
Numerical simulation of viscoelastic problems
with contact related to aluminum casting
Peregrina Quintela Estévez, Patricia Barral
Rodiño María Teresa Sánchez. Department of
Applied Mathematics. University of Santiago de
Compostela Spain
Workshop in numerical simulations for aluminum
industry Sept. 30, 2004 Oct. 2, 2004 EPFL
2
Numerical simulation of viscoelastic problems
with contact related to aluminum casting
The physical problem the casting process. A
mechanical model for simulation of
thermomechanical deformations. A weak
formulation of the problem. Space
discretization. Contact condition Time
integration. Viscoplastic-law. Numerical
procedures to improve the efficiency of the
algorithm. Numerical results.
3
The casting process
Electromagnetic casting
Direct chill casting
4
The whole casting process
P. Barral A. BermúdezM.C. MuñizV. OteroP.
QuintelaP. Salgado. Numerical simulation of some
problems related to aluminium casting. J. of
Materials and Processing Tech. Vol. 142/2, pp.
383-399. 2003.
5
The mechanical simulation
Butt curl
The start phase
Lateral faces contraction
The stationary stage
6
The mechanical problem
Unknowns
Boundary conditions
7
Boundary conditions
Unknowns
Boundary conditions
Metallostatic pressure on the solidification
front.
Signorini contact condition.
Symmetry conditions
Free of forces
8
The mechanical problem
Equilibrium equations
Constitutive law
Hookes law
Arrheniuss law
Norton-Hoffs law
9
Mathematical model (Problem P)
Equilibrium equations
Boundary conditions
Drezet, Plata Mariaux, Rappaz
Constitutive law
Initial conditions
10
Weak formulation
Weak formulation (WP) .- Find
and

verifying the inequality a.e.
and

11
Perturbed problem
Elastic law
Constitutive law
Initial conditions
12
Space discretization
  • The weak problem is discretized in space using a
    finite element method.
  • The approximation of displacements is performed
    using four nodes tetrahedral elements.
  • The stresses are assumed to be constant for each
    element.

Perturbed problem discretized in space
13
Contact condition
Penalized problem
2
Update the multiplier
14
Time discretization
Discretization of the constitutive law
15
Updated viscoplasticity multiplier
16
Flow chart to the viscoplasticity law
17
Numerical procedures to improve algorithm
efficiency
  • Problems with large spacial stress gradients
    adimensionalization technique to improve a major
    approximation and convergence.
  • New unknowns
  • New coefficients

18
Numerical procedures to improve algorithm
efficiency
  • Adimensionalization Dt 1.e-5
  • Problems with large gradients with respect to
    time small and variable time step
  • Armijo rule on the viscoplastic algorithm.
  • Optimization of the time step.

Dt 0.125
19
Real casting process
Start stage
20
Numerical results
Start stage
21
Numerical results
Stationary stage
  • Computational difficulties
  • The domain grows with time
  • Remesh at each time step

The butt curl doesn't influence the contraction
of the lateral faces
22
References
  • P. Barral P. Quintela. A numerical method for
    simulation of thermal stresses during casting of
    aluminum slabs. Computer Methods in Applied
    Mechanics and Engineering. Vol. 178, pp.69-88.
    1999.
  • P. Barral P. Quintela. A numerical algorithm
    for prediction of deformation during the casting
    of aluminum alloy ingots. Finite elements in
    analysis and design Mechanical Engineering. Vol.
    34, pp. 125-143. 2000.
  • P. Barral P. Quintela. Numerical analysis of a
    viscoplastic problem with contact condition
    taking place in an aluminium casting. Journal of
    Computational and Applied Mathematics. Vol. 115,
    pp. 63-86. 2000
  • P. Barral P. Quintela. Asymptotic justification
    of the treatment of a metallostatic pressure type
    boundary condition in an aluminium casting. Math.
    Mod. Meth. Appl. S. Vol. 11, Nº 6 , pp.
    951-977, 2001.

23
References
  • P. Barral - P. Quintela. Existence of solution
    for a Signorini contact problem for
    Maxwell-Norton materials. IMA J. of Appl. Math.
    Vol. 67, pp. 525-549. 2002.
  • P. Barral P. Quintela. Asymptotic analysis of a
    metallostatic pressure type boundary condition
    modelled by a fictitious domain method in an
    aluminium casting. Asymptotic Analysis. Vol.
    30, pp. 93-116, 2002.
  • P. Barral A. BermúdezM.C. MuñizV. OteroP.
    QuintelaP. Salgado. Numerical simulation of some
    problems related to aluminium casting. J. of
    Materials and Processing Tech. Vol. 142/2, pp.
    383-399. 2003.
  • P. Barral C. MorenoP. QuintelaM.T. Sánchez. A
    numerical algorithm for a Signorini problem
    associated with Maxwell-Norton materials by using
    Newton's methods. Submitted to Comp. Meth. in
    Appl. Mech. and Eng. 2004.
