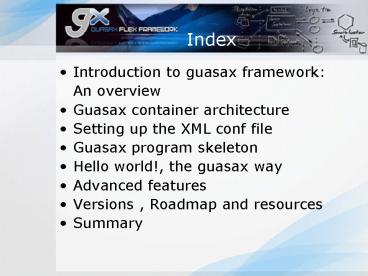

Index

1
Index

• Introduction to guasax framework
• An overview
• Guasax container architecture
• Setting up the XML conf file
• Guasax program skeleton
• Hello world!, the guasax way
• Advanced features
• Versions , Roadmap and resources
• Summary

2

• Introduction to guasax framework
• An overview

3
Introduction to guasax (1/4)

• Guasax is an ease of use programming framework to
  provide ordered and scalable Flex applications
• Life cycle of guasax framework is based in the
  MVC pattern to take on our program actions
• Guasax framework helps you to maintain your
  business logic tier highly decoupled from your
  presentation logic tier
• Guasax takes reflection and introspection
  techniques as well as IoC pattern to execute the
  operations which we have pointed at and to make a
  decision about itselves
• Guasax is not intrusive on your class model.You
  dont have to extend your classes in framework
  classes to use it.

4
Introduction to guasax (2/4)

• Guasax is connected with others programming
  frameworks like Webwork 2.2.x or Struts 2.0, also
  it implements some of the features quite similar
  to Cairngorm 2.x
• Guasax is based in a configurable components
  container (Business Object) in which we declare
  any method to implement our logic business
• Inside our code we call to actions. An action
  belongs to a particular component that carries
  out the execution of an own method.Component is
  represented as a class called Business Object.
• Framework configuration feeds on an external XML
  configuration file.

5
Introduction to guasax (3/4)

• Guasaxs aims
• Separate our application in presentation, data
  model, business classes and remote services tiers

• Standardization of new case use creation flow
  which resolves the what I should do and where I
  should do it dilemma according to a given way.
• Real reuse of code at functional component level.
• Provide the programmer with tools to perfom
  actions like enable/disable methods, define
  execution roles, build your own interceptors,
  redirect from one application view to another
  one,etc.

6
Introduction to guasax (4/4)

• Last introductory tip
• Programming with guasax does NOT require to know
  all design patterns. Actually, one of guasaxs
  feature is that it has been programmed using the
  best practices, so that using the framework you
  are following good design practices too.

7

• Guasax container architecture

8
Guasax container architecture (1/7)

• Component container based architecture.
• A framework component is connected with an
  ActionScript (AS) class, which implements
  operations component.
• Through an external XML configuration file,
  invokable components and component operations
  (called actions) are declared
• During container initialization process, this
  classes (BO - business objects) are instanciated,
  acting then as a Singleton class.
• Internally, guasax mantains a components list and
  an actions list of each one too.

9
Guasax container architecture (2/7)
10
Guasax container architecture (3/7)

• Each component stores actions list and a series
  of properties.Both of them are loaded from the
  xml file when we use them at first.Afterwards
  they are modificable at the container.
• Each component has a BO type instance.This is
  created by reflection through the qualified class
  name declared in the XML file.
• This instance is created only once, not in every
  action execution, saving instanciation time.

11
Guasax container architecture (4/7)

• All the actions of a component are readed from
  the configuration file.
• Each action is implemented in a BO class method.
• So that, we can tell a component has actions
• All of the actions from the component list have a
  reference to the BO component. This way, when an
  action is executed it can invoke to the object
  method which belongs.
• Actions have a set of attributes which depending
  on its value will take a value or another

12
Guasax container architecture (5/7)

• Other important guasax part are the services
  provided to easily invoke actions which we have
  declared.
• Mainly we have
• executeAction(actionNameString, paramsArray)
  ResponseActionVO
• We execute an action passing an array of params
  which exactly matches with params of the
  destination method.
• executeActionWithView(actionName String,
• params Array,
• viewObjectArray Array,
• viewMethodName String,
• viewParamsArray)
  ResponseActionVO
• Quite similar to last method, but we can pass
  through an array of view objects and its method/s
  to invoke. Once the BO action has been executed,
  guasax will invoke that view method for us.

13
Guasax container architecture (6/7)

• executeActionWithViewAfterService(actionName
  String,
• params Array,
• viewObjectArray Array,
• viewMethodName String,
• viewParamsArray)
  ResponseActionVO
• Also quite similar to last, but if asynchronizly
  we call a remote service, the container instead
  of redirecting to a view defers it until we get
  the service response.
• This way, when container redirects to a view to
  continue the program execution flow, the remote
  service has already finished.
• Therefore we realised when we are programming
  that on the update method of the view we have got
  the remote service response.

14
Guasax container architecture (7/7)

• In addition to previous service operations,
  through the container we are able to perform next
  operations
• findAction(actionIdString)ActionVO
• findComponent(componentIdString)ComponentVO
• setEnabledComponent(componentIdString,valueBoole
  an)void
• isEnabledComponent(componentIdString)Boolean
• setEnabledAction(actionIdString,valueBoolean)vo
  id
• isEnabledAction(actionIdString)Boolean
• setUserRole(userRole String)void
• getUserRole()String

15

• Setting up the XML conf file

16
Setting up the XML conf file(1/3)

• A guasax program is configured through a XML
  file. Here is an example

17
Setting up the XML conf file (2/3)

• As we can notice in upper image the configuration
  file is composed by components and components are
  composed by actions.
• Components has a className attribute what
  specifies the class which implements.
• Action has a method attribute which points out
  the method to invoke when the action is
  requested.
• Components and actions can have an enable
  attribute which decides if it can be executed or
  not.When enabled overrides the actions flag.
• Actions enables you to define which role/s are
  allowed to execute a concrete action.The role can
  be assigned to the current user in the container.

18
Setting up the XML conf file (3/3)

• Actions also can declare different interceptor
  types
• (actions at the same time)
• Preinterceptor Action/s we want to be executed
  BEFORE a given action.
• Interceptor A single action to capture all the
  parameters, modifying them and passing through to
  a destination action with changed values.
• Postinterceptors Action/s we want to be executed
  AFTER a given action.

19

• Guasax program skeleton

20
Guasax program skeleton (1/4)

• First of all, we ought to declare a XML object
  which will point out to our XML application
  configuration file. For example
• GuasaxContainer.getInstance().parseConfFile("./co
  nf/guasax-main-conf.xml",oncomplete)
• If we are going to use remote services, we will
  declare a
• ltservicesServices id"services" /gt
  object.This object extends ServiceLocator class
  and declares the remote services we are going to
  use.
• This services object must be defined in our
  main.mxml application file
• We can use the creationComplete event and bind it
  to a function (e.g. init()) to load the framework
  configuration as this

21
Guasax program skeleton (2/4)

• The classes which will implement our business
  application logic are grouped according to its
  role
• The main roles we notice in the framework are
• Value Objects
• Model
• Bussiness Objects
• Services
• Views
• Also, we can have all our internal classes
  necessaries to develop our business logic, util
  classes, etc.
• Inside Views we will group MXML files and
  support classes which are connected with them,
  filters, formatting functions, events, etc.

22
Guasax program skeleton (3/4)

• Normal life cycle of a guasax action uses to be
  the next one
• Through the guasax container we execute an
  action, being able to pass a view objects array
  and a view method to execute. For example
• executeActionWithView(actionName ,params,
  viewObjectArray , viewMethodName,viewParams)
  ResponseActionVO
• The container looks forward this action inside
  its component, and invokes it through a stored BO
  instance, passing all calling parameters.
• When BO method invokation finishes up, the
  container invokes view method passing as
  parameter the returned value. Also it is allowed
  to call the view method with no params, picking
  them from ModelLocator

23
Guasax program skeleton (4/4)

• Normal request life cycle diagram with all
  interacting elements

24

• Hello world!, the guasax way
• (step by step)

25
HolaMundoGuasax step by step(1/5)

• In this chapter we are going to view all
  necessary code and the basic directory skeleton
  to create the minimal program under guasax.
• First of all we are going to create a Flex
  project.In the main file we ought to carry on 3
  tasks
• Load a XML configuration file.
• Init the framework through oncreation event
• Create at least one variable of the class which
  is going to be instaciated by reflection.This is
  a necessary task because the compiler MUST
  include all required information about these
  classes.Otherwise it will raise an exception.

26
HolaMundoGuasax step by step (2/5)

• Here we can see the project skeleton. We have the
  main application file called GuasaxHelloWorld.mxml
  .
• Also we have the HelloWorldBO which has all
  actions we are going to invoke.
• In conf directory, we have the
• Constants.as file in which we declare all
  constants to identify the name of the actions and
  the services
• We also have the guasax-conf.xml in which we
  declare all components and actions.

27
HolaMundoGuasax step by step (3/5)
28
HolaMundoGuasax step by step (4/5)

• In the last screenshot we can see all the
  GuasaxHelloWorld.mxml file code where we start a
  guasax action through a button.
• We can realize in the init method in which we
  initiate the framework and the XML object in
  which we declare the xml configuration file

29
HolaMundoGuasax step by step (5/5)

• Finally we can see in this picture the
  HelloWorldBO class acting as a BO
• sayHello method is invokated by an action with
  the same name.(NoteIts not necessary they both
  have the same name)
• This is only a demo example limited to show a
  message. You could invoke remote services and
  keep the results of them in the Model through
  ModelLocator

30

• Advanced features

31
Advance features (1/6)

• We have talked in last chapters about the
  possibility of redirecting to a view after an
  action execution. Now, we are going to explain
  other features provided by guasax
• Enabling/Disabling actions and components
• Configuring role-based access control
• Building your own interceptors
• Component actions implemented by other component.
  Dispatched actions
• Executing a view object method.(A BO method is
  NOT neccesary)

32
Advance features (2/6)

• Its posible to enable/disable and action or a
  component , forbidding its execution. Through
  setEnabled and isEnabled accesors you can set/get
  its value.
• Using access roles you can declare for each
  action what roles can execute. When a user is
  logged into our application we can define his
  role in the container, then the container can
  allow or forbid the invokation of an action. Role
  declaration is optional
• Through interceptors you can configure differents
  behaviours for an action execution flow
• Preinterceptor Action/s we want to be executed
  BEFORE a given action.
• Interceptor A single action to capture all the
  parameters, modifying them and passing through to
  a destination action with changed values.
• Postinterceptors Action/s we want to be executed
  AFTER a given action.

33
Advance features (3/6)

• An example of preinterceptor could be to prepare
  a data retrieval or to check if we are logged
  into the system.
• An example of IN parameters interception could be
  to get an encrypted string and to desencrypt it.
  This way you can reuse this code several times.
• To finish, a postinterceptor example could be to
  trace a log in certain way.
• Interceptors advantage is to provide actions with
  certain behaviours without changing its code

34
Advance features (4/6)

• Other framework feature is the possibility to
  indicate to an action,through the XML
  configuration file, that the action is going to
  be executed will be another one
• Suppose you have a component which usually reads
  news from a system and when a new one comes an
  event is called to invoke a concrete guasax
  action.
• If we want to reuse this component in other
  application you can configure it in the XML
  configuration file, indicating in the action
  element in which action it will be delegated.

35
Advance features (5/6)

• Sometimes is needed to call a view method to
  perform an UI refresh, a transition, effects,
  etc.
• This kind of tasks dont depends on a BO object
  or on a model update anyway.
• In this case, we used to carry out this update
  from ViewA to ViewB, dealing with scope problems
• It could be resolved having some kind of
  workflowState variable in our application
  model, changing its value and binding a ViewStack
  to it, for example.

36
Advance features(6/6)

• If you think its not the best way (personally we
  think that its a mistake to keep in your data
  model a view state value). We will be able to
  make a call to a view object method through
  guasax.
• We can use the ViewLocator class to store and to
  access in wherever part of our program to view
  objects.ViewLocator class works as an ordered by
  name view methods container, similar to a HashMap
• In this way, we can call guasax
• GuasaxContainer.getInstance().
• executeViewUpdate(ViewLocator.getInstance().
  getViewObject(ID_VIEW,
  updateView,
• viewParamsArray)
• Invoking the object method named as updateView
  retrieved from the ViewLocator

37

• Versions , Roadmap and Resources

38
Versiones , roadmap and resources (1/2)

• Roadmap planned
• At this moment guasax is in 0.9 Alpha version
  because it can be added a lot of new features.
• Beta 0.9, May 2007
• Final Release, versión 1.0, Winter 2007

39
Versiones , roadmap and resources (2/2)

• Official web site
• www.guasax.com
• Blog
• http//guasax.wordpress.com
• Discussion group and mail-list
• http//groups.google.es/group/guasaxcoders/
• SVN source repository and examples code
  http//code.google.com/p/guasax/source
• Wiki
• http//code.google.com/p/guasax/w/list
• Downloads and examples
• http//code.google.com/p/guasax/downloads

40

• Summary

41
Sumary

• Guasax is an open source framework which pretends
  to help flex developers community to carry on
  good practices during program process design.
• Guasax purpose is to contribute to develop pretty
  ordered, robust, easier to maintain and scalable
  source code. Also, programmers can feel at home
  behind the same development premises.
• The final guasax purpose is to provide a reusable
  components based development environment avoding
  to repeat the same code again and again,
  maintaining an ordered code.
