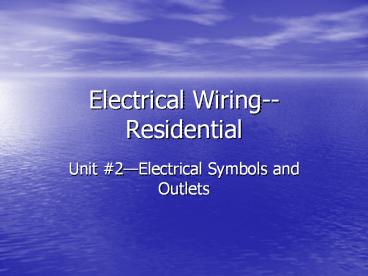

Electrical Wiring--Residential
  • Unit 2Electrical Symbols and Outlets

2
FACTSUNIT 2
  • By definitions, toggle switches and receptacles
    are devices because they carry current, but do
    not consume power
  • When a receptacle is connected to the
    branch-circuit wires, the outlet is called a
    receptacle outlet.
  • When a luminaire (light fixture) is attached to
    the branch-circuit wires, the outlet is called a
    lighting outlet.

3
FACTSUNIT 2 cont.
  • Dashed lines run from an outlet to a switch would
    normally indicate that the switch controls a
    portion of that outlet. The dashed lines are
    curved so that they cannot be mistaken for
    invisible edge lines. Outlets without curved
    dashed lines are independent outlets and have no
    switch control.

4
FACTSUnit 2 cont.
  • Most modern surface-mounted luminaires (light
    fixtures) can be fastened to a luminaire
    (fixture) stud in the box or an outlet box or
    plaster ring using appropriate No. 8-32 metal
    screws. Special consideration has to be made for
    luminaires that weigh 50 lbs or more and for
    fixtures that weigh only 6lbs or less may be
    mounted with 6/32 screws on a standard outlet box
    (plastic or metal).

5
  • A box (or fitting) must be installed wherever
    there are splices, outlets, switches, or other
    junction points. The boxes must meet the
    following
  • NEC 300.11 and 314.23 Boxes must be securely
    mounted and fastened in place.
  • NEC 300.15 Where conduit, electrical metallic
    tubing (EMT), nonmetallic-sheathed cable (Romex),
    Type AC cable or other cables are installed, a
    box or conduit body must be installed at each
    conductor splice connection point, outlet, switch
    point, junction point, or pull point.

6
  • Boxes cont.--
  • NEC 300.15 Where cables enter or exit from a
    conduit or tubing that is used to provide cable
    support or protections against physical damage, a
    fitting shall be provided on the end(s) of the
    conduit or tubing to protect the cable from
    abrasion.
  • NEC 314.3 Permits nonmetallic outlet and device
    boxes to be installed where the wiring method is
    nonmetallic sheathed cable or nonmetallic raceway

7
  • Boxes cont.--
  • NEC 314.3 (Exceptions) allows metal raceways and
    metal-jacketed cables (BX) to be used with
    non-metallic boxes provided all metal raceways or
    cables entering the box are bounded together to
    maintain the integrity of the grounding path to
    other equipment.
  • NEC 314.16 Boxes must be large enough for all
    of the enclosed conductors and wiring devices.

8
  • Boxes cont.
  • NEC 314.16(C) The exception allows multiple
    cables to be run through a single knockout
    opening in a nonmetallic box (plastic), but not
    for metallic boxes.
  • NEC 314.20 Boxes installed in combustible
    material the box must be flush with the outer
    wall surface. If the boxes are installed in a
    noncombustible wall it is acceptable to have the
    front edge of the box set back not more than ¼
    in. (6 mm) for the finished surface.

9
  • Boxes cont.--
  • NEC 314.22 A surface extension from a box of a
    concealed wiring system is made by mounting and
    securing an extension ring over the concealed box
    or by a cover that secures the cover so that it
    will not fall off if it becomes loose. The
    grounding continuity must be independent of the
    connection between the box and cover. You may
    not use the mounting screws of the surface
    extension for the grounding or bonding of the
    extension ring, unless the mounting of the
    extension ring is independent from the cover.

10
  • Boxes cont.
  • NEC 314.23(B)(1) States that when a switch box
    or outlet box is mounted to a stud or ceiling
    joist with nails or screws through the box, the
    nails or screws must be not more than ¼ in. (6mm)
    from the back or ends of the box.Nails or screws
    will not interfere with the wiring devices in the
    box.

11
  • Boxes cont.--
  • NEC 314.25 In completed installations, all
    boxes shall have a cover, faceplate, or luminaire
    (fixture) canopy.DO NOT LEAVE ANY ELECTRICAL
    BOXES UNCOVERED.
  • NEC 314.27(A) Boxes used at lighting outlets
    must be designed or installed so that a luminaire
    (lighting fixture) may be attached to it.

12
  • Boxes cont.--
  • NEC 314.27(A) and (B) Listed outlet boxes are
    suitable for hanging luminaires (lighting
    fixtures) that weigh 50 lb. (23 kg) or less.
    Luminaires that weigh more than 50 lbs must be
    supported independently of the outlet box, or the
    outlet box must be listed for the weight to be
    supported.Wall-mounted luminaires of less than 6
    lb may be supported by a box or by a plaster ring
    secured to a box, by not less than two No. 6-32
    or larger screws.

13
  • Boxes cont.--
  • NEC 314.27(D) Standard outlet boxes must not be
    used as the sole support for ceiling suspended
    (paddle) fans unless they are specifically listed
    for this purpose.
  • NEC 314.29 Conduit bodies, junction, pull, and
    outlet boxes must be installed so the wiring
    contained in them is accessible without removing
    any part of the building.NEVER INSTALL OUTLET
    BOXES WHERE THEY WILL BE INACCESSIBLE BEHIND OR
    ABOVE PERMANENT FINSHED WALLS OR CEILINGS.

14
  • Boxes cont.
  • NEC 314.71 Pull and junction boxes must provide
    adequate space and dimensions for the
    installation of conductors, and devices that are
    to be installed.
  • NEC 314.23 (B)(1)stated that when a switch box
    or outlet box is mounted to a stud or ceiling
    joist with nails or screws through the box , the
    nails or screws must be not more than ¼ in. (6mm)
    from the back or ends of the box.THIS ENSURES
    THAT WHEN NAILS OR SCREWS PASS THROUGH THE BOX,
    THEY WILL NOT INTERFERE WITH THE WIRING DEVICES
    IN THE BOX.

15
FACTSUNIT 2 cont.
  • When two or more switches or receptacles are
    located at the same point , the switches or
    receptacles are referred to as being ganged,
    meaning that they are inside the same box.
  • If when installing an outlet box in a combustible
    wall and the box is not flush with the outer
    surface of the wall you may use a box extender,
    sometimes referred to as a goof ring.

16
FACTSUNIT 2 cont.
  • When raised covers or plaster rings are marked
    with their volume in cubic inches, that volume
    may be added to the box volume to determine
    maximum number of conductors allowed in the
    combined box and raised cover

17
FACTSUNIT 2 cont.
  • Switch boxes installed between studs using metal
    switch box supports, often referred to as Kruse
    strips. If wood strips are used, they must have
    a cross-sectional dimension of not less than 1
    in. x 2 in. (25mm x 50mm)

18
FACTSUNIT 2 cont.
  • Four-inch square boxes can be trimmed with
    one-gang or two-gang plaster rings where devices
    will be installed. Luminaires (lighting
    fixtures) will be installed , a plaster ring
    having a round opening should be installed.

19
FACTSUNIT 2 cont.
  • Remodel work require the use of boxes having
    plaster ears and snap-in brackets that can be
    inserted from the front into the existing walls.
    Another popular method is to use boxes with
    plaster ears, inserting them from the front and
    then using Madison Hold-Its or Madison Hangers

20
FactsUnit 2Spread of Fire
  • Fire must be contained and not allowed to spread
  • Use of 5/8-in gypsum wallboard instead of the
    normal ½-in on the ceiling and on the walls
    between the garage and living areas and requiring
    draft stopping where ducts, cables and piping
    run through bottom (sole) and top plates.This
    requires all holes or openings in these two
    plates to be calked using an approved fire rated
    calk or foam.

21
FactsUnit 2Spread of Firecont.
  • In walls, partitions, and ceilings that are
    fire-resistance-rated, are defeated if electrical
    boxes are installed back-to-back or in the same
    stud or joist space of common walls or ceilings.
  • Rating of fire-resistance materials are rated in
    hours.

22
FactsUnit 2Spread of Firecont.Fire rating
of boxes
  • The surface area of individual metallic outlet
    or switch boxes shall not exceed 16 square
    inches (i.e., a 4-in. square box is 4 in. x 4
    in. 16 in.2),
  • the aggregate surface area of the boxes shall
    not exceed 100 in.2 per 100 ft.2 of wall
    surface,
  • boxes located on opposite sides of walls or
    partitions shall be separated by a minimum
    horizontal distance of 24 in. (600mm),

23
FactsUnit 2Spread of Firecont.Fire rating
of boxes
  • the metallic outlet or switch boxes shall be
    securely fastened to the studs and the opening in
    the wallboard facing shall be cut so that the
    clearance between the box and the wallboard does
    not exceed 1/8 in. (3 mm).
  • Using nonmetallic boxes in fire-resistance-rated
    walls, the restrictions are more stringent that
    for metallic boxesi.e. non-metallic boxes may be
    restricted to openings not to exceed between 10
    in.2 to 25 in.2.

24
FactsUnit 2Spread of Firecont.Fire rating
of boxes
  • Certain molded fiberglass outlet and device boxes
    are listed for use in fire-resistance-rated
    partitions without the use of putty pads, mineral
    wool batts, or fiberglass batts, provided a
    minimum horizontal distance of 3 in. (75 mm) is
    maintained between boxes and the boxes are not
    back-to-back.

25
FactsUnit 2Spread of Firecont.Fire rating
of boxes
  • Using and intumescent (expands when heated)
    fire resistant material that comes in pads, when
    properly installed may make the 24 in. separation
    between boxes not required. Providing that the
    outlet boxes must not be installed back-to-back.
