Title: LBBD-collaboration Laserwire update


1

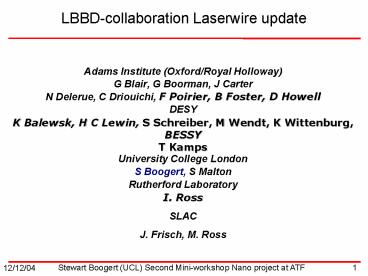

LBBD-collaboration Laserwire update
  • Adams Institute (Oxford/Royal Holloway)
  • G Blair, G Boorman, J Carter
  • N Delerue, C Driouichi, F Poirier, B Foster, D
    Howell
  • DESY
  • K Balewsk, H C Lewin, S Schreiber, M Wendt, K
    Wittenburg,
  • BESSY
  • T Kamps
  • University College London
  • S Boogert, S Malton
  • Rutherford Laboratory
  • I. Ross
  • SLAC
  • J. Frisch, M. Ross

2
Introduction
  • Outline of the PETRA laserwire system and recent
    results
  • PETRA
  • Laserwire setup
  • Scan results
  • Compton signal
  • Laser measurements
  • Plans for ATF extraction line laserwire
  • Chamber design
  • Scanning
  • Compton calorimeter
  • Readout and control

3
(No Transcript)
4
PETRA laserwire
  • Compton scattering of laser beam with electron
    beam
  • Detect Comton photons colinear with electron beam
    by bending the electron beam out of the way
  • Compton signal modulated by the spatial overlap
    of the beam distributions
  • For the exisiting system at 7 GeV beam energy
    expect Compton rate 103 photons

5
(No Transcript)
6
Laser light transport
7
Scanning and focusing optics setup
  • Scanner
  • PI piezoelectric stack
  • ? 2.5 mrad tilt range and kHz scanning
    frequency
  • Focusing lens
  • 125 mm, air spaced doublet from CVI

8
Post interaction diagnostics optics
  • Need to measure laser beam size at collision
  • Re-image laser spot using 4f relay
  • Transverse profile of laser measured using CCD
    camera
  • Basler A300/A600 series cameras
  • Firewire readout
  • 10?m pixel size

9
Compton calorimeter
  • Requirements for detector material
  • short decay time (avoid pile up)
  • short radiation length
  • small Moliere radius
  • Cuboid detector crystals made of PbWO4
  • 3x3 matrix of 18x18x150 mm crystals
  • Energy resolution better than 5

10
Fast scanner operation (December 2003)
  • Positron beam in PETRA
  • 7 GeV
  • Low current setup 7.1 mA, first bunch 0.458 mA
    (3.9 nC)
  • High current 40.5 mA, first bunch 2.686 mA (22.3
    nC)
  • Find compton signal via beam bump in x and y
  • Varied the voltage to the piezo scanner from 0 to
    100 V
  • corresponding to ?2.5 mrad tilt
  • taking 5000 calorimeter readings at each point
  • Complete scan took 40 mins
  • Background signal 20k events without laser pulse
  • Large variations in the signal due to the laser
    mode beating

11
Profile measurements at PETRA
  • Exponential background and Gaussian
    approximation of beam shape, fit results in
  • sm (68 3 14) mm at low current
  • sm (80 6 16) mm at high current

12
(No Transcript)
13
Laser beam profile measurements (S. Malton)
  • Laser beam size significant systematic error in
    size determination
  • Create IP focus before and after laser transport
    down to tunnel
  • Measure laser beam size as function of distance
    along beam using CCD cameras
  • Beam waist 35-40 microns
  • M2 and sigma improve after beam transport to
    tunnel
  • Errors large in tunnel due to ambient light

14
DAQ and software upgrade (S. Boogert G. Boorman)
  • Previous running
  • Totally manual system, calorimeter/scanner/bpm
    readout
  • 1 hour to take a scan
  • Incomplete data format and unsyncronised
  • Upgrades since December 2003
  • Scanner motion triggered from PETRA trigger
  • General trigger fanout card with programmable
    delays, 0.5ns resolution
  • National instruments (NI) DAQ slow trigger system
    for triggering components
  • Fast photodiodes and power meter digitisation
  • PETRA data server, beam currents, BPM positions,
    vacuum status
  • Integrated Labview DAQ program

15
PETRA conclusions and outlook
  • Last scans performed December 2002
  • No new scanning data since then, only runs to
    understand the Compton spectrum success
  • Problems with laser/access to PETRA
  • Low Compton rate
  • Total flux now consistent with expectations
  • DESY has designed a new beam pipe with window
  • Should increase Compton rate by two orders of
    magnitude
  • Laser beam transverse size
  • Measured using CCD cameras, consistent with
    measured electron beam size
  • Next PETRA laserwire shift next week at DESY
  • New laser (Modern NdYAG, Mode locked system?)
  • Vertical optical system for x and y size
    measurement (being designed now)

16
ATF extraction line laserwire
17
ATF extraction line laserwire
  • Test laserwire optics concept in the extraction
    line
  • Install chamber before summer 2005
  • Standard system with laser spot size 5mm
  • Or during shutdown fall 2005
  • Advanced system 1mm spot size
  • Pulse structure and ILC timing
  • Must wait until extraction kicker issue is
    resolved
  • ATF parameters
  • Energy 1.28 GeV
  • Bunch length 26 ps
  • Charge gt 0.5 1010
  • Beam size at IP down to 1x70mm
  • Laser parameters
  • 300 mJ per pulse
  • 200 ps pulse length
  • Wavelength 532 nm
  • Rep. rate 10 Hz

18
Chamber design (D. Howell N. Delerue)
  • Design underway at Oxford
  • Knife edge scanner
  • OTR screen
  • Optics probably inside vacuum vessel
  • First design ready in the next few weeks,
    according to Nicolas
  • Scanning
  • Initially no active scanning, allow position
    jitter to scan electron beam across laser beam
  • Electo-optic scanning
  • Acoustic-optic scanning
  • Custom lens design (1 mm spot design)
  • fgt25mm
  • D/f gt 0.933
  • Pure silica, due to radiation damage
  • Compound lens, have to worry about glues in UHV
  • Local diagnostics
  • Traditional wire scanner
  • ATF BPMs

19
Read out and control
  • ILC bunch timing
  • Transfer experience from PETRA
  • Similar concepts for
  • Compton detector
  • Tiggering
  • Readout and DAQ
  • We are currently discussing how much of the
    existing PETRA system can be transferred directly
    to ATF extraction line
  • Interface to existing diagnostics
  • Nicolas has already done the ATF_CONTROL for
    FEATHER project
  • BPM measurements
  • Corrector control
  • Wire scanner control
  • good to use same detector for laser and wire
    scanners

20
Issues related to ATF beam
  • Position jitter in the extraction line
  • Could use stripline BPMs to reconstruct electron
    beam position at laserwire IP
  • 1 mm resolution possible?
  • Laser performance
  • Operational stability
  • Must obtain characteristics, such as
  • longitudinal profile
  • transverse profile
  • Does this data exist?
  • Laser light delivery optics
  • Assume mostly in place for the polarised e
    measurements
  • Compton detector
  • Lead glass calorimeter, a la PETRA
  • Air Cerenkov detector with APD for visible photon
    detection

21
ATF laserwire conclusions
  • Recent discussions favour production of an
    optical system capable of producing 1mm spot
    sizes
  • Chamber design well underway at Oxford
  • Lens design will start soon
  • but later installation
  • Compton calorimeter and DAQ
  • Cold technology choice, short bunch spacing not
    an issue
  • Developments at PETRA more applicable to the ATF
  • UK laserwire collaborators are looking forward to
    a successful collaboration and many visits to
    Japan
