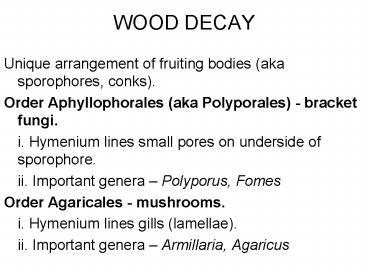

Title: WOOD DECAY


1
WOOD DECAY
  • Unique arrangement of fruiting bodies (aka
    sporophores, conks).
  • Order Aphyllophorales (aka Polyporales) - bracket
    fungi.
  • i. Hymenium lines small pores on underside of
    sporophore.
  • ii. Important genera Polyporus, Fomes
  • Order Agaricales - mushrooms.
  • i. Hymenium lines gills (lamellae).
  • ii. Important genera Armillaria, Agaricus

2
Bracket Fungi
  • Sporophores - bottom is covered with pores, each
    of which is lined with the hymenium, i.e., the
    spore-producing surface. On the hymenium are
    gazillions of basidia, each producing four
    basidiospores.
  • Sporophores can be annual or perennial, depending
    on the pathogen, When perennial, they grow in
    size each year. They can be cut open to reveal
    'annual rings'.

3
Mushrooms
4
Characteristics of wood decay
  • Defined as degradation of wood cell walls.
  • b. Primarily caused by Basidiomycetes, although
    there are a few decays caused by Ascomycetes and
    Imperfect Fungi.
  • c. Most decay fungi are secondary invaders. They
    do not (generally) colonize freshly wounded wood
    but generally require some degree of substrate
    modification before they can infect.
  • d. Although some decays are sapwood decays, most
    occur in the heartwood, which is the central
    column of essentially dead wood in a tree. This
    wood must be exposed for decay fungi to be able
    to colonize and begin decay.

5
Characteristics of wood decay
  • e. Decay fungi undergo a process called
    autolysis. Mycelia generally are not found in
    wood in advanced stages of decay. Chitin in
    fungal cell walls contains much N and wood
    contains small amounts of N. This enables fungi
    to produce large fleshy or woody sporophores and
    billions of basidiospores, both of which contain
    much N.
  • f. Decay occurs only under certain conditions
  • i. Appropriate temperature (15 - 30 C). Some
    thermophilic fungi in chip piles can work at
    temperatures up to 45 C.
  • ii. Appropriate moisture. Some moisture must
    be in the cell lumen for decay to occur. For most
    wood, the moisture content at which there is no
    moisture in the lumen is 20-25. This is termed
    the fiber saturation point. Wood will last
    indefinitely if moisture is kept below FSP.
  • Moisture content (wet wt. - dry wt. / dry
    wt.) x 100
  • Note If wood is saturated, decay will not occur
    even though moisture gt FSP. This is due to
    anaerobic conditions in wood.

6
Characteristics of wood decay
  • g. There are two basic types of wood decay. These
    differ based on ability to change the length of
    cellulose molecules.
  • i. White rots - these fungi produce enzymes
    (exocellulases) that attack cellulose molecules
    from the ends. Although decayed, wood still
    retains some strength and usefulness, i.e., for
    pulpwood fiber, etc.
  • ii. Brown rots - these fungi produce enzymes
    (endocellulases) that attack cellulose molecules
    in the middles. Decayed wood is crumbly, in
    cubes, and is totally useless. Even though it may
    weigh the same as the white-rotted wood, the
    brown-rotted wood is useless.

7
Root Rot of Trees
Ex. of White Rot
8
Rhizomorphs of Armillaria sp. adhering to roots
of apple
9
  • The phloem (inner bark) and cambium of this paper
    birch tree are being killed as a mycelial fan
    grows between the bark and wood. The black
    tissues immediately near the fan are dead.

10
(No Transcript)
11
(No Transcript)
12
Humongous Fungus
  • The underground fungus--estimated to be between
    2000 and 8500 years old.
  • The clone of Armillaria ostoyae - the
    tree-killing fungus that causes Armillaria root
    disease--covers an area of 9.65 square
    kilometers, about the size of 6000 hockey rinks
    or 1600 football fields.
  • "It's one organism that began as a microscopic
    spore and then grew vegetatively, like a plant,"

http//www.sciencedaily.com/releases/2003/03/03032
7074535.htm
13
Modes of entrance for wood decay fungi
  • a. Wounds
  • Fire - a major infection court. Causes typical
    wound, called a 'cat face'.
  • Logging wounds - severity depends on size and
    depth of wound. There is direct relationship
    between wound size and time required for healing.
    Anything gt 3" in any direction greatly increases
    time required for healing and, as such, increases
    likelihood for decay fungi to establish. Any
    wound that exposes heartwood is a decay risk.
  • Blazing - with an axe. USE PAINT!!
  • Storms - damage due to wind, ice, etc. Conifers
    more resistant than hardwoods, due to tree
    architecture.

14
Modes of entrance for wood decay fungi
  • Wounds
  • Cankers - some diseases cause cankers on tree
    trunks and branches. If these expose heartwood,
    then decay organisms can become established.
  • Seams - vertically oriented cracks that results
    from excessive heat, freezing, sun exposure.
  • Frost cracks (i.e., 'Southwest disease') occur
    as a result of differential rates of wood
    expansion in direct sunlight in winter.
  • Insects - bore holes in wood and expose
    heartwood..

15
Modes of entrance for wood decay fungi
  • b. Branch stubs - many folks do not know how to
    prune.
  • Prune only branches lt 3" in diameter. This
    prevents heartwood from being exposed
  • Prune such that natural healing is promoted.
  • DO NOT use wound dressings. They serve only to
    trap moisture and make heartwood susceptible for
    longer periods.

16
Modes of entrance for wood decay fungi
  • c. Decayed stumps - sprouts from stumps can be
    affected by decay fungi from the old stump
  • When possible, favor seedlings.
  • Favor sprouts from small rather than large
    stumps. The will have less heartwood and less
    likelihood for decay.
  • d. Sprout clumps
  • There are two basic types of unions by which
    sprouts can be connected. ' Y' and 'U' unions.

17
MYCORRHIZAE
  • Not all fungi are detrimental. Some (a rather
    small group) form symbiotic relationships with
    the host roots. These are called "mycorrhizae" -
    literally, "fungus root". These generally form on
    feeder roots of higher plants.
  • In mycorrhizae, there is a very strong
    interdependence (i.e., symbiosis) that exists
    between the fungus and the host. Most plants that
    generally form mycorrhizae do very poorly in
    their absence, and most mycorrhizal fungi are
    critically dependent on their hosts for survival
    - they generally are poor saprophytes, and they
    grow poorly if at all in culture.
  • Mycorrhizal fungi are obligate parasites. So they
    must infect the host without killing it.

18
MYCORRHIZAE
  • Economics
  • Mycorrhizae are very important. Establishment of
    most forests depends entirely on mycorrhizal
    formation. Orchids require them. Most agronomic
    crops (i.e., soybean) utilize them.
  • Feeder roots
  • These generally are sites of mycorrhizal
    formation. Remember characteristics of feeder
    roots
  • 1. ephemeral (last only 1 season)
  • 2. no secondary growth
  • 3. no root cap
  • Ex In conifers, 90-95 of roots are feeder
    roots, so you can see just how important these
    are.

19
Classification
  • There are two main types, based on the physical
    relationship between fungus and host root.
  • 1. Endomycorrhizae - these often show no obvious
    morphological changes in root,
  • 2. Ectomycorrhizae - these can induce a greatly
    modified root morphology.

20
Classification
  • 1. Endomycorrhizae - these often show no obvious
    morphological changes in root
  • Mycelium is intracellular in the root cortex,
  • Produced by both septate and non-septate
    (coenocytic) fungi.
  • Septate - common fungus is Rhizoctonia. Septate
    fungi often produce mycorrhizae on Orchidaceous
    (Orchids) and Ericaceous (Arbutus. Azalea.
    Vaccinium) plants
  • Aseptate - commonly in the Zygomycetes, family
    Endogonaceae. This group also is called
    vesicular-arbuscular (VA) mycorrhizal fungi.
  • VA mycorrhizae are the most common type of
    mycorrhizae.
  • They produce
  • a) vesicles - large, swollen hyphae inside and
    outside cells. Used
  • for storage
  • b) arbuscules - branched haustoria inside cells.
    These allow fungi to steal nutrients from host
    without killing it and them.

21
Classification
  • Endomycorrhizae - these often show no obvious
    morphological changes in root
  • Found on maple, sycamore, ash, gum, walnut,
    cypress, poplars, and some other conifers.
  • This type also occurs on all agronomic crops,
    such as sorghum, corn, and grasses used as cover
    crops in tree nurseries.

22
VAM Fungi
Overwinters, many, many years
vesicle
23
Classification
  • 2. Ectomycorrhizae - these can induce a greatly
    modified root morphology.

With
24
Ectomycorrhizae on beech tree roots
Root covered withfungal sheath
Hyphae of sheath
X-section showing sheath
25
Ectomycorrhizae
  • Feeder roots surrounded by a thick layer of
    hyphae - the 'fungus mantle".
  • Feeder roots permeated by network on
    intercellular hyphae in the cortex - the "Hartig
    net", named
  • after Robert Hartig, the Father
  • of Forest Pathology
  • Found on pine, spruce, fir, beech,
  • eucalyptus, alder, oak, and hickory
  • Many diverse fungi can form ectomycorrhizae -
    Agaricales (gill fungi), many Ascomycetes,
    Imperfect Fungi, etc.
  • Ectomycorrhizal associations can be very complex.
    As many as seven different fungi can be found on
    a single root system.

26
What is the function (benefit) of mycorrhizae?
  • (Many of these apply only to ectomycorrhizae)
  • There are two main functions of mycorrhizae
  • 1. Increased absorption
  • a. Increased root surface area.
  • b. Hyphae from mantle extend into soil, absorb,
    then conduct back to host roots.
  • c. Selective absorption of certain elements.

27
What is the function (benefit) of mycorrhizae?
  • 2. Protection from root pathogens
  • a. Fungi use as food the root exudates that
    normally would attract pathogens.
  • b. Physical barrier to infection by pathogens.
  • c. Fungi produce antibiotic substances that deter
    root pathogens.
  • d. Alter the physical and chemical aspects of the
    rhizosphere so that microbial fauna are extremely
    diverse and hence antagonistic to root pathogens.
  • e. Because they are parasites, their infection of
    host cells can stimulate production of
    host-produced compounds that are inhibitory to
    root pathogens. A form of induced, chemical
    resistance

28
Ectomycorrhizae Thelephora terrestris
29
Ectomycorrhizae
  • Pisolithus tinctorius Control

30
Ectomycorrhizae
31
Ectomycorrhizae
32
(No Transcript)
