Title: Introduction to Biomechanics


1

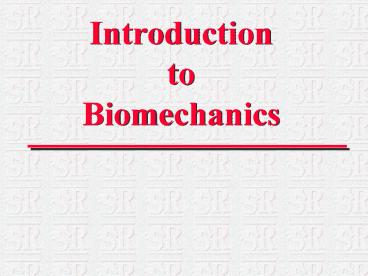

Introduction to Biomechanics
2
Introduction to Biomechanics
  • This is one of the youngest forms of equine
    exercise physiology.
  • Split into 2 aspects
  • Kinematics study of movement, describing the 3
    dimensional linear and angular displacement of
    the limbs
  • Kinetics study of forces that are generated or
    absorbed to cause or resist movement

3
Introduction to Biomechanics
  • Why study equine biomechanics?
  • Develop methods for predicting performance
  • Develop sensitive and quantitative systems for
    lameness detection
  • Test the efficacy of treatment strategies
  • Quality of recovery
  • Equine welfare

4
Introduction to Biomechanics
  • Ways to study biomechanics in horses
  • Kinematics uses
  • Cameras
  • Video
  • Specialized tracking equipment
  • Kinetics uses
  • Force plates
  • Accelerometers
  • Equimost
  • http//www.equimost.com/

5
Introduction to Biomechanics
  • Studying the gaits
  • Measurements must be
  • Reliable and reproducible
  • Sensitive to detect time of events that are
    indiscernible to the naked eye
  • Ex time elapsed between heel lift-off and toe
    lift-off at the end of a stance.
  • Equipment must not actually interfer w/ or resist
    the gait in any way.

6
Introduction to Biomechanics
  • Kinetics and force plates
  • Used to study the forces the limb applies to the
    ground and hence the forces the ground applies on
    the limb.
  • Usefulness
  • Determine the symmetry of the right and left limb
    pairs in weight bearing and propulsive actions
  • Assessment of foot balance

7
Introduction to Biomechanics
  • Force plates
  • Ground reaction forces (GRFs)
  • Force plates measure the force applied to the
    plate in 3 directions
  • Mediolateral (Fx)
  • most variable
  • Craniocaudal (Fy)
  • Vertical force (Fz)

8
Introduction to Biomechanics
  • How does it work?
  • Forces are given in Newtons (N/kg bwt.)
  • 2 Fy phases are measured during a stance
  • First half breaking or decelerative
  • 2nd half accelerative or propulsory
  • Crossover between the 2 phases
  • Occurs when the cannon bone is vertical

9
Introduction to Biomechanics
  • Accelerometers
  • Measures the acceleration and deceleration
    produced during limb movements.
  • Can be attached to various parts of the horse
  • Limbs
  • Hooves
  • Can measure unlimited strides
  • Measures both kinematic and kinetic data

10
Introduction to Biomechanics
  • Studying Kinematics
  • Easiest way method video camera
  • VHS and Digital
  • 25 fps vs 200 fps
  • Skin markers
  • Easier to measure
  • Particular joint angles
  • Linear distances
  • Software programs are now available
  • Methods of capture
  • Moving vehicle
  • Pan the camera
  • Horse on treadmill

11
Introduction to Biomechanics
  • Stride length and stride frequency
  • Stride length (SL) m or ft
  • distance traveled by the horses center of mass
    during one stride
  • Distance between successive prints of the same
    foot.
  • Stride frequency (SF) strides/s
  • Number of strides per unit time

12
Introduction to Biomechanics
  • How to calculate
  • Speed (m/s) SL (m) x SF (strides/s)
  • Stride duration (s) 1 / SF (strides/s)
  • Increase in speed
  • Increases stride length first
  • Walk 2 m or 6.5 ft
  • Gallop 6-7 m or 19.7- 23 ft
  • Followed by stride frequency
  • Maximal SF 2-2.5 strides/s

13
Introduction to Biomechanics
  • The gaits
  • Particular pattern of footfalls
  • Main gaits
  • Walk
  • Trot
  • Canter
  • Gallop
  • 2 main types of gaits
  • Symmetrical gaits any gait in which placement of
    the left and right fore and hind limb pairs are
    evenly spaced in time
  • Walk
  • Trot
  • Asymmetrical gaits
  • Canter
  • Gallop

14
Introduction to Biomechanics
  • Walk
  • Is a 4-beat gait
  • Footfalls occur
  • Left hind (LH)
  • Left fore (LF)
  • Right hind (RH)
  • Right fore (RF)
  • 2 limbs are in stance phase at any one time
  • No period of suspension
  • Most stable gait

15
Introduction to Biomechanics
  • Trot
  • Is a2 beat gait
  • Footfalls occur (trotter)
  • LH and RF together
  • RH and LF together
  • Trot diagonals
  • Are name Lt and Rt according to the forelimb
  • Trot should have suspension

16
Introduction to Biomechanics
  • Canter
  • Is a 3 beat gait with one period of suspension
  • Footfalls depend on leads
  • Rt lead
  • RF and RH are the last pair limbs to hit ground
  • LH, RH and LF together followed by RF
  • This is followed by a period of suspension before
    LH impacts again.

17
Introduction to Biomechanics
  • Canter
  • As speed increases
  • Diagonal pair dissociate
  • Hind limb impacts in advance of diagonal forelimb
  • Gait goes from a 3 beat to a 4 beat
  • Gallop
  • Collected canter
  • Often does not have a suspension phase
  • Are 4-beat gaits
  • Energy costs may be greater

18
Introduction to Biomechanics
  • Gallop
  • Is a 4 beat gait
  • Footfalls for Rt lead
  • LH, RH, LF, RF
  • Lead change
  • RH, LH, LF, RF
  • Rotary gallop
  • LF is at risk of an over-reach injury
  • Frequent changes
  • Injury
  • fatigue

19
Introduction to Biomechanics
  • Gait transitions
  • Who determines the point at which a transition is
    made?
  • Rider
  • Energy costs
  • Froude number
  • Peak vertical force
  • Jump stride
  • Factors the influence the kinetics and kinematics
  • Speed approach
  • Height of the fence
  • Rider on the approach and over the fence
  • Effect of related obstacles

20
Introduction to Biomechanics
  • Spinal kinematics and back problems
  • Introduction into Sports Medicine or Sports
    Therapy
  • Back pain in horses
  • Caused by many factors
  • Result in significant loss of performance
  • Most common injury
  • Soft tissue injuries
  • Vertebral lesions

21
Introduction to Biomechanics
  • Primary function of the spine
  • Support and frame work for muscles and ligaments
  • Transmitting the propulsive forces of the hind
    limb through the forehand
  • Types of movement
  • Lateral flexion
  • Dorsiflexion
  • Ventroflexion
  • Axial rotation

22
Introduction to Biomechanics
  • Bow and string
  • Suggests how the spine is affected by the limbs
    muscles and how the spine supports the mass of
    the body
