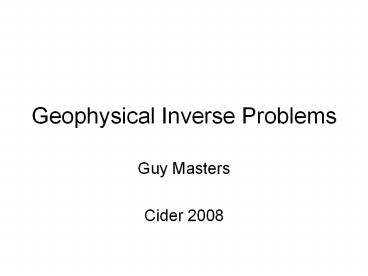

Geophysical Inverse Problems

• Guy Masters
• Cider 2008

2
Anatomy of a GIP

• Existence -- mainly of mathematical interest
• Uniqueness -- nope -- at least for linear inverse
  problems
• Construction -- what we are all obsessed with
• Evaluation -- what we should be obsessed with

3
Types of GIPs

• Linear -- (rare -- usually uninteresting)
• Mildly non-linear (linearizable)
• Strongly non-linear (not discussed here -- model
  space search algorithms, e.g. GA, EP, etc)

4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
Are all data really independent?
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
Rank and winnow

• Take combinations of data which are orthogonal
• Rank in order of decreasing precision
• Reject data combinations which have excessively
  large errors (from 200 original data get about 60
  useful combinations)

13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
What about model evaluation?
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
Resolving kernel for density at 3000km
0.1 error
22
0.5 error
23
(No Transcript)
24
(No Transcript)
25
In practice -- too much data -- therefore
parameterize
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(With generalized inverse, can compute errors and
resolution)
30
(No Transcript)
31
Matrices are usually too big to do direct
inversionUse iterative inversion
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
Example -S-wave mantle tomography

• Inversion of large travel-time, surface wave, and
  free oscillation data sets
• Voxel parameterization -- 4 degree lateral
  dimension, 100km thick in upper mantle and 200km
  thick in lower mantle
• 50,000 model parameters, 400,000 data

36
(No Transcript)
37
Shear velocity -- -1 isovelocity surfaces
Includes S and SS cluster analysis data
38
(No Transcript)
39
How well resolved?

• Biggest issue is data coverage and mixture of
  data types
• Less important is theory (e.g. banana-donut
  kernels) -- important for some kinds of
  structures
• What happens without surface waves?

40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
Checkerboard tests
46
(No Transcript)
47
70
48
80
49
50
50
(No Transcript)
51
(No Transcript)
52
Typical errors from a monte-carlo type
calculation (order of magnitude smaller
than the models)
53
Adding diffracted phases
54
Diffracted Waves

• Coverage of CMB poor in existing models
• Diffracted waves travel along base of mantle
• Lots of data

55
Coverage of S and P
56
Coverage with Diffracted
57
Models
S Model
P Model
58
S Resolution
59
P Resolution
60
Final comments

• Choice of final model is still somewhat
  subjective (would be less so if we really knew
  the errors on our data)
• Your ability to recover structure depends mainly
  upon data coverage. Smoothing is still necessary
  -- leads to tradeoff between resolution and error
• You get to investigate this yourself on Monday!

61
(Beware the tomography police!)
