Title: F1 CAD CAM Challenge


1

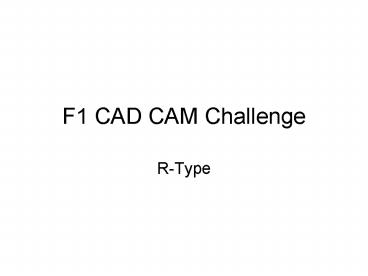

F1 CAD CAM Challenge
  • R-Type

2
  • The first task is to cut the billet in half. This
    means you only have to design half the body, then
    mirror it later.
  • Click on SELECT FACES (on the right)

3
  • The face should appear red when selected.
  • Then right click and choose NEW SKETCH.
  • Then click ok

4
  • Draw a line from the mid-point of the top line.
    Hold down shift to keep it at 90 degrees.

5
  • Click on EXTRUDE.
  • (its in the modifications toolbar)

6
  • Click and drag the yellow square to pull the line
    though the body (like a cheese-wire)

7
  • Click ok (or enter). The half body looks like
    this.

8
  • Next click on SELECT FACE.
  • Then select the out face shown.

9
  • Next right click then choose NEW SKETCH
  • Then click ok.

10
  • Click VIEW then VIEW ONTO WORKPLANE
  • Then click VIEW then wireframe.
  • This helps you to see where the gas cylinder hole
    is

11
  • Next draw the profile of the top of the car.
  • To do this choose SPLINE
  • Start the spline outside of the body and finish
    it also outside of the body

12
  • Rotate the car around using the arrow keys
  • Click EXTRUDE then drag the yellow square to pull
    the profile through the car
  • Click ok or enter

13
  • It should look like this

14
  • Select the inner face

15
  • Create a new sketch

16
  • View onto workplane
  • Draw squares in the positions shown
  • These will be areas that are cut away from the car

17
  • Use DELETE LINE SEGMENT
  • Clip the overlapping lines until the squares
    appear filled

18
  • They should look like this.
  • (note if the squares appear as rectangles then
    there are still overlapping lines).

19
  • Click extrude
  • Add a value of 20
  • Click ok or enter

20
  • It should look like this

21
  • Rotate the car around to inspect it

22
  • Change the view back to enhanced

23
  • It should look like this
  • Next click SELECT EDGES
  • Click on an edge (it should highlight red)

24
  • Click ROUND EDGES

25
  • Either type in a value or adjust the radius
    manually by dragging the yellow square

26
  • It should look like this

27
  • You can also Chamfer edges to create a flat face

28
  • You can create an even flat face of a slanted
    flat face

29
  • Go around the car selecting edges to either round
    or chamfer

30
  • You should end up with a smoother car

31
  • Next select the inner face
  • Add a new sketch

32
  • Draw two 4mm holes for the axles

33
  • Extrude them through the body to make holes

34
  • It should look like this

35
  • Select the inner face again

36
  • Click on featuresgtmodify solidgtmirror solids
  • ok

37
  • Your finished car body!
