R' Machleidt

1

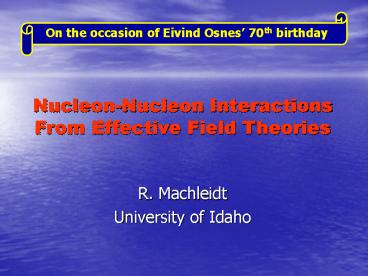

On the occasion of Eivind Osnes 70th birthday
Nucleon-Nucleon Interactions From Effective Field
Theories

• R. Machleidt
• University of Idaho

2
Outline

• Introduction QCD and nuclear physics
• The effective field theory approach to nuclear
  forces Overview
• Current status of 2N forces
• Many-body forces and applications in light nuclei
• Summary and open issues

3
How does nuclear physics emerge from QCD?
4
QCD
Nuclear structure and reactions
R. Machleidt
NN and NNN Interactions Town Meet,
Chicago, 1-20-07
4
5
QCD
?
Ab initio calculations
Nuclear structure and reactions
R. Machleidt
NN and NNN Interactions Town Meet,
Chicago, 1-20-07
5
6
QCD
Ab initio calculations
Nuclear structure and reactions
R. Machleidt
NN and NNN Interactions Town Meet,
Chicago, 1-20-07
6
7
QCD

TetsuoHatsudas talk

Biras and my talk
Ab initio calculations
Nuclear structure and reactions
NN Interactions from EFT Oslo,
22-May-2008
R. Machleidt
7
R. Machleidt
NN and NNN Interactions Town Meet,
Chicago, 1-20-07
7
8
The EFT approach
Notice first Quarks and gluons are ineffective
degrees of freedom at low energy. Nuclear forces
are residual forces between colorless objects.

• Use the degrees of freedom which are
• relevant at nuclear physics energies
• nucleons (and pions).
• Observe the symmetries of low-energy QCD
• and the patterns of their breaking
• Symmetry generates and controls
• dynamics.

9
The homework to be done

• Write down the most general Lagrangian including
  all terms consistent with the assumed symmetries,
  particularly, spontaneously broken chiral
  symmetry. (Note There will be infinitely many
  terms.)
• Calculate Feynman diagrams. (Note
  There will be infinitely many diagrams.)
• Find a scheme for assessing the importance of the
  various diagrams (because we cannot calculate
  infinitely many diagrams).

10
The organizational scheme
Power Counting
Chiral Perturbation Theory (ChPT)
R. Machleidt
10
11
3N forces
4N forces
2N forces
Leading Order
The Hierarchy of Nuclear Forces
Next-to Leading Order
Next-to-Next-to Leading Order
Next-to-Next-to-Next-to Leading Order
12
2N forces
Leading Order
The Hierarchy of Nuclear Forces
The Hierarchy of Nuclear Forces
Next-to Leading Order
Next-to-Next-to Leading Order
Next-to-Next-to-Next-to Leading Order
R. Machleidt
12
13
What order do we need for sufficient precision?
14
Believe it or not, in answering this question,
the phenomenological high-precision
potentials of the 1990s can help us here.
R. Machleidt
14
15
How many parameters do we need?
R. Machleidt
Recent Adv. in Th. of Nucl. Forces
EXOCT07, Catania, 14-June-07
15
16
(No Transcript)
17
Conclusion At least, N3LO is needed Entem
Machleidt, PLB 524, 93 (2002)
18
R. Machleidt
Recent Adv. in Th. of Nucl. Forces
EXOCT07, Catania, 14-June-07
18
19
red Idaho N3LO, green Juelich N3LO,
R. Machleidt
19
20
3N Forces
21
3N forces
3NF
2N forces
Leading Order
The Hierarchy of Nuclear Forces
The Hierarchy of Nuclear Forces
Next-to Leading Order
Next-to-Next-to Leading Order
3NF at NNLO
Next-to-Next-to-Next-to Leading Order
22
Three-nucleon forces at N2LO
TPE-3NF
No new parameters!
OPE-3NF
One new parameter, D.
Contact-3NF
One new parameter, E.
Strategy Adjust D and E to two few-nucleon
observables, e.g., the triton and alpha-particle
binding energies. Then predict properties of
other light nuclei.
R. Machleidt
Nuclear Forces - Lecture 5 Visva Bharati
Workshop, Nov '06
22
23
Calculating the properties of light nuclei
usingchiral 2N and 3N forces
No-Core Shell Model Calculations by P.
Navratil et al., LLNL
2N (N3LO) 3N (N2LO) forces
2N (N3LO) force only
R. Machleidt
23
24
R. Machleidt
Nuclear Forces from ChEFT
INT-07-3 Sept. 25, 2007
24
R. Machleidt
Review NN and Many-Body Int. SURA
Workshop, DC, 16-Oct-06
24
25
Courtesy of M. Viviani latest data from TUNL.
R. Machleidt
Review NN and Many-Body Int. SURA
Workshop, DC, 16-Oct-06
25
26
Ay puzzle at NLO and NNLO (2NF3NF)
NLO, ?²/dat100
The Ay puzzle is NOT solved by the 3NF at NNLO.
NNLO ?²/dat15
R. Machleidt
Recent Adv. in Th. of Nucl. Forces
EXOCT07, Catania, 14-June-07
26
27
3N forces
2N forces
Leading Order
The Hierarchy of Nuclear Forces
The Hierarchy of Nuclear Forces
Next-to Leading Order
Next-to-Next-to Leading Order
3NF at N3LO
Next-to-Next-to-Next-to Leading Order
R. Machleidt
Nuclear Forces from ChEFT
INT-07-3 September 2007
27
28
Why do we need the 3NF at N3LO?

• The 2NF is N3LO
• consistency requires that all contributions
  are at the same order.
• The are unresolved problems in 3N, 4N scattering
  and nuclear structure.

29
The 3NF at N3LO
One-loop contributions
Juelich
R. Machleidt
29
30
(No Transcript)
31
(No Transcript)
32
The 3NF at N3LO
One-loop contributions
Juelich
Idaho
R. Machleidt
NN Interactions from EFT Oslo,
22-May-2008
32
R. Machleidt
32
33
3N forces
2N forces
Leading Order
The Hierarchy of Nuclear Forces
The Hierarchy of Nuclear Forces
Next-to Leading Order
Next-to-Next-to Leading Order
Next-to-Next-to-Next-to Leading Order
R. Machleidt
33
R. Machleidt
Nuclear Forces from ChEFT
INT-07-3 September 2007
33
Nuclear Forces from ChEFT
INT-07-3 September 2007
34
4NF at N3LO (leading order)
Do not expect much for 4N scattering!
R. Machleidt
34
35
Summary

• Chiral EFT IS fundamental (QCD based) and
  quantitative.
• At N3LO, some accurate NN potentials have been
  developed (but, watch it, not all N3LO pots. are
  accurate!).
• Two- and many-forces are created on an equal
  footing.
• Current results in nuclear structure including
  the 3NF at N2LO are encouraging (however, the N-d
  A_y puzzle is not solved!).

R. Machleidt
35
36
Open issues, problems

• The 3NF at N3LO very complicated
• Will it solve the N-d A_y puzzle, ,
• will it further improve the spectra of light
  nuclei, ?
• Do we need to go to N4LO, N5LO, ?
• - Not necessary for NN and if, then we have to
  go to N5LO - to get more contacts. Contacts at
  N5LO no problem, but the 2-pi, 3-pi, and 4-pi
  contributions will be a nightmare!

R. Machleidt
36
37
R. Machleidt
Theory of Nuclear Forces FB18
Brazil 21-Aug-06
37
38
Open issues, problems

• The 3NF at N3LO
• Will it solve the N-d A_y puzzle, ,
• will it further improve the spectra of light
  nuclei, ?
• Do we need to go to N4LO, N5LO, ?
• - Not necessary for NN and if, then we have to
  go to N5LO - to get more contacts. Contacts at
  N5LO no problem, but the 2-pi, 3-pi, and 4-pi
  contributions will be a nightmare!
• - Illinois 3NF contains N4LO and N5LO terms!

R. Machleidt
38
39
Illinois 3NFs
N4LO and N5LO (in a theory w/o explicit Deltas)
R. Machleidt
39
40
Open issues, problems

• The 3NF at N3LO very complicated
• Will it solve the N-d A_y puzzle, ,
• will it further improve the spectra of light
  nuclei, ?
• Do we need to go to N4LO, N5LO, ?
• - Not necessary for NN and if, then we have to
  go to N5LO - to get more contacts. Contacts at
  N5LO no problem, but the 2-pi, 3-pi, and 4-pi
  contributions will be a nightmare!
• - Illinois 3NF contains N4LO and N5LO terms!
• The renormalization of the chiral NN potemtial
  Whats the right power counting scheme? Weinberg
  counting has some problems!

R. Machleidt
40
41
This
morning
QCD
Nuclear
Structure Talks
Ab initio calculations
Nuclear structure and reactions
NN Interactions from EFT Oslo,
22-May-2008
R. Machleidt
41
R. Machleidt
NN and NNN Interactions Town Meet,
Chicago, 1-20-07
41
