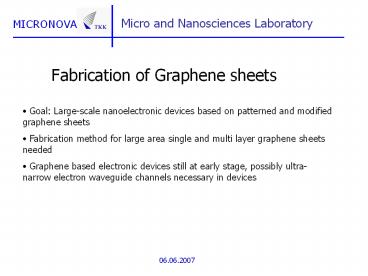

Micro and Nanosciences Laboratory
  • Fabrication of Graphene sheets
  • Goal Large-scale nanoelectronic devices based
    on patterned and modified graphene sheets
  • Fabrication method for large area single and
    multi layer graphene sheets needed
  • Graphene based electronic devices still at early
    stage, possibly ultra-narrow electron waveguide
    channels necessary in devices

2
Fabrication of graphene sheets
  • Exfoliation of highly ordered pyrolytic graphite
    (HOPG)
  • Easy-to-access (e.g. cleavage by Scotch tape)
  • Labour-intensive, uncertain placement
  • Identification of graphene sheets by optical
    microscopy/AFM
  • Electrostatic deposition1
  • Electric field used to peel off single-few layers
    from HOPG to SiO/Si wafer
  • Epitaxial growth of graphene on SiC2 and other
    substrates
  • Vacuum graphitization by UHV thermal treatment
  • CVD growth
  • Layers studied by STM and XPS (LEED, ...)

1 N. Sidorov et al., Nanotechnology 18 (2007),
135301 2 C. Berger at al., Science 312 (2006),
1191
3
The exfoliation technique
RIE O2 plasma
HOPG mesas
Glass substrate resist
Mesas stick on resist
Exfoliation w/ Scotch tape to thin sheets
Si/SiO2 substrate
Sheets dissolved in ace
Sheets attach on substrate
Si/SiO2 substrate
Thin flakes (lt10 nm) attach strongly on the SiO2
Novoselov et al., Science 306, pp. 666 (2004)
4
Identification of Graphene
  • flakes on SiO2/Si interference colors in
    optical microscopy.
  • Sheets visible down to thickness 1.5 nm
    (few-layer graphene invisible)

SEM
optical
FLG
  • SEM can distinquish few-layer graphene
  • AFM can measure the thickness down to single
    layer graphene (thickness 4 A)
  • distance between 1st graphene layer and SiO2 can
    vary several Angstroms

double fold
Novoselov et al., Science 306, pp. 666 (2004)
5
Epitaxial graphene
  • motivation cleaved graphene comes in small
    dimensions (10 mm), hit-and miss approach not
    suitable for applications
  • epitaxial methods large, high-quality 2D
    graphite ? also graphene??
  • epitaxy of graphite by CVD 1
  • varying substrates precursors hydrocarbons such
    as ethane, benzene
  • growth of monolayer graphite achived
  • epitaxy of graphite by ultra-high vacuum (UHV)
    treatment of SiC 2
  • samples typically grown on (6H-)SiC at gt1300C
  • growth on the Si-face (0001) is slow ? thin
    layers
  • growth on the C-face (000-1) is faster ? up to
    100 monolayers thickness

1 Oshima et al., J.Phys. Condens. Matter 9, pp.
1 (1997) 2 Review de Heer et al., Solid State
Comm. (2007)
6
UHV epitaxial graphene
  • LEED patterns show the changes in surface
    reconstruction and reveal graphite formation 1
  • Auger electron spectroscopy (AES) used to
    determine SiC ratios 2
  • STM images of surface show graphene atomic
    lattice 1

1 Berger et al. J. Phys. Chem. B 108 (2004) 2
de Heer et al., Solid State Comm. (2007)
7
UHV epitaxial graphene
  • Dirac cone dispersion relation properties
    determined by Landau level spectroscopy (infrared
    transmission in magnetic field)
  • inter-Landau level transition energies follow
    B1/2 ? chirality
  • Fermi velocity v01.03E8 cm/s

de Heer et al., Solid State Comm. (2007)
  • conclusion multilayered graphene, not
    graphite
  • transmission experiments probe the properties of
    the low charge density bulk of the epitaxial
    graphene layer with n 1.5x1010/cm2
  • The interfacial graphene layer is probed by 2D
    transport measurements and has n 2x1012/cm2 due
    to built-in electric field
  • Graphene grown the on Si face (low growth rate)
    has low mobility, whereas on the C face (high
    growth rate) it has high mobility

8
Transport in epitaxial graphene
  • MR of intermediate width (1 mm) Hall bar shows
    SdH oscillations
  • Landau plot reveals anomalous Berrys phase
    (Dirac particles), vF0.7x108 cm/s
  • As the width of the ribbon is decreased, the
    low-carrier density graphene becomes insulating
  • MR of 500 nm width Hall bar shows quantum
    confinement effects
  • Landau plot deviates from linear as a result of
    confinement
  • No Quantum Hall Effect was observed!
  • This may be linked to the weakness of the SdH
    oscillations

de Heer et al., Solid State Comm. (2007)
